Dedicated Arrow Optics
Purpose-built 12-inch arrow indications support turn-movement control with consistent shape and visibility.
431/432

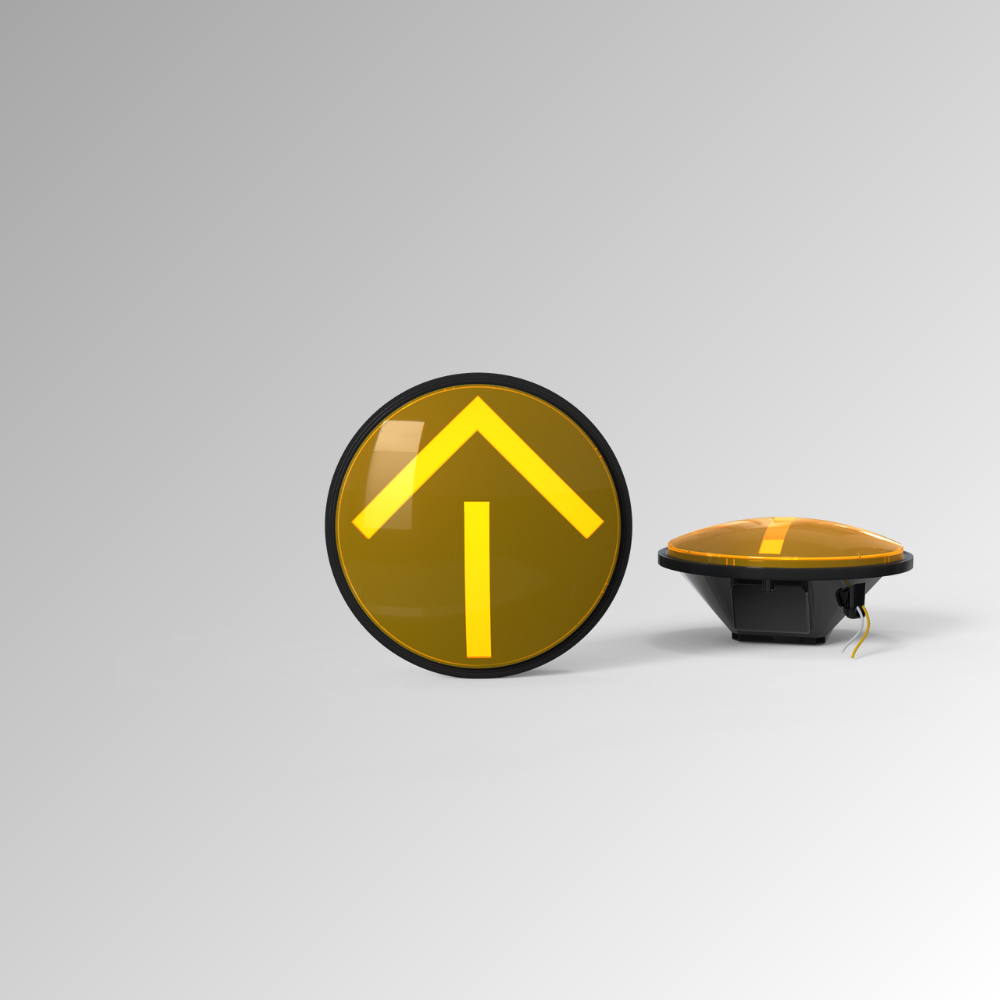

Frontier Arrow 12″ 80-135Vac ITE LED Traffic Light Module
The LEOTEK Frontier Arrow 12″ 80-135Vac ITE LED Traffic Light Module is engineered to provide highly visible, energy-efficient arrow indications for conventional AC-powered traffic signal systems. Designed to operate on standard 80–135Vac power, this module is fully compliant with ITE standards, making it an ideal solution for municipal, DOT, and roadway intersection applications.
Built on LEOTEK’s proven LED traffic signal platform, the Frontier Arrow module delivers excellent light uniformity and wide viewing angles, ensuring clear driver recognition in all lighting and weather conditions. Advanced thermal management and high-efficiency LEDs enable long service life while significantly reducing energy consumption and maintenance costs.
With a rugged, environmentally sealed construction, the Frontier Arrow module is designed for reliable, long-term performance and seamless retrofit into existing traffic signal housings.
Features
- 12″ LED arrow traffic-signal module
- 80-135Vac operation
- Red, yellow, and green arrow indications
- Uniform LED optics with wide viewing performance
- Designed for compatible signal housings
- For retrofit and new installations
Frontier Arrow in Real-World Traffic Applications
FRONTIER 431 / 432 SERIES
ITE-compliant 12-inch arrow guidance for AC traffic systems
The Frontier 431/432 Series delivers clear red, yellow and green directional indications for conventional 80–135Vac intersections, combining uniform optics, energy-efficient LEDs and rugged sealed construction.
ITE / ETL / CSA Platform
The product page identifies applicable ITE performance requirements with ETL and CSA certifications.
Standard 120Vac Operation
Designed for North American traffic cabinets across an 80–135Vac operating range.
Retrofit-Ready Reliability
Sealed construction, UV-stabilized hard-coated lenses and multiple terminal options support field replacement.
Verified Product Configuration
| Series | Frontier 431 / 432 |
|---|---|
| Indication | Arrow |
| Lens size | 12 inch |
| Colors | Red, yellow and green |

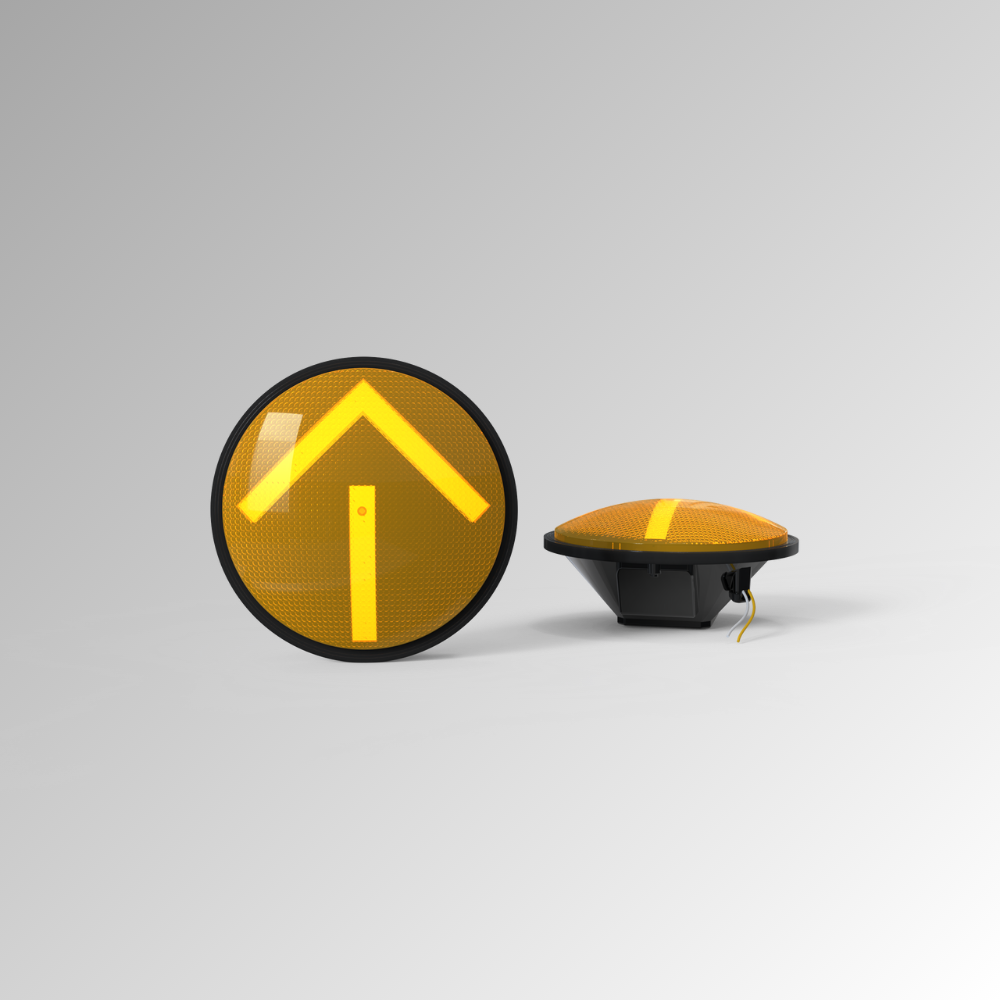

| Lens options | Tinted or clear (untinted) |
| Voltage | 120Vac (80–135Vac) |
| Certification | ETL, CSA |
| Warranty | 5 years |
| Terminals | Faston with spade insert, spade terminals, or stripped and tinned |
Technical note: Use the current controlled 431/432 arrow data sheet and drawing to confirm the exact color, lens and terminal ordering code. Use the Arrow data sheet and drawing in Resources for the selected Arrow model.
Technical FAQ
What should I match before ordering a replacement arrow?
Confirm the 12-inch housing, red, yellow or green arrow indication, tinted or clear lens, terminal style, 80–135Vac supply and complete 431/432 ordering code against the current Arrow data sheet and project specification.
Does a 120Vac cabinet make this a direct replacement?
No. The listed operating range is 80–135Vac, but voltage alone does not confirm housing fit, electrical connections, required indication or agency acceptance. Check the exact existing and proposed part numbers.
Where can I verify the Arrow drawing and part code?
Use the 431/432 Arrow data sheet and Arrow drawing in Resources for this page. Check their revision and the full model code; the 433 Ball module is a different indication.
Specifications
Family
Frontier
Series
431/432
Certification
ETL, CSA
Color
Red, Green, Yellow
Indication
Arrow
Color of Lens
Tinted, Clear (Untinted)
Lens Size
12"
Warranty
5 year(s)
Voltage
120Vac (80-135Vac)
Terminals
Faston with Spade Insert, Spade Terminals, Stripped and Tinned
