Frontier Countdown Pedestrian Signal 12″×12″ 80-135Vac ITE
The LEOTEK Frontier Countdown Pedestrian Signal 12″ × 12″ 80-135Vac ITE LED Traffic Light Module is designed to deliver clear, reliable pedestrian guidance at signalized intersections. Engineered to meet ITE pedestrian signal standards, this module provides highly visible countdown digits that enhance pedestrian safety, awareness, and compliance.
Featuring an integrated 80-135Vac power supply, the Frontier Countdown Pedestrian Signal enables easy installation and direct retrofit into standard 12″ × 12″ pedestrian signal housings. LEOTEK’s advanced LED and optical technology ensures uniform illumination, excellent legibility, and wide viewing angles under all ambient lighting conditions.
Built for long-term outdoor use, the module incorporates a rugged, UV-stabilized polycarbonate lens and a fully sealed housing to protect against moisture, dust, and environmental stress. Efficient thermal management and long-life LED components significantly reduce energy consumption and maintenance costs, making it ideal for municipal and DOT roadway applications.
Features
- 12″ / 12″ LED pedestrian signal module
- Integrated countdown information
- 80-135Vac operation
- High-contrast display with uniform visibility
- For compatible pedestrian-signal housings
- Durable weather-resistant construction

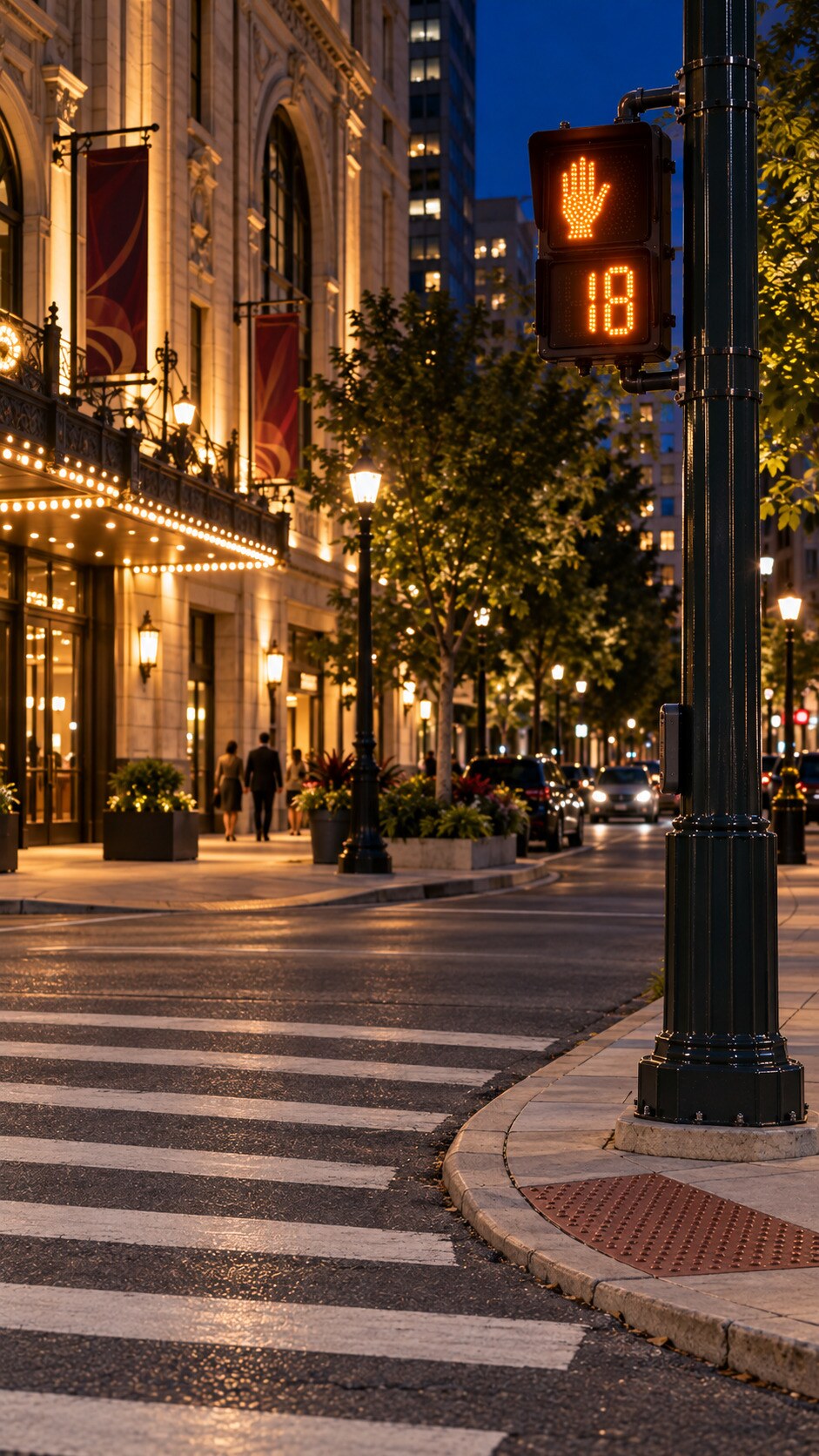

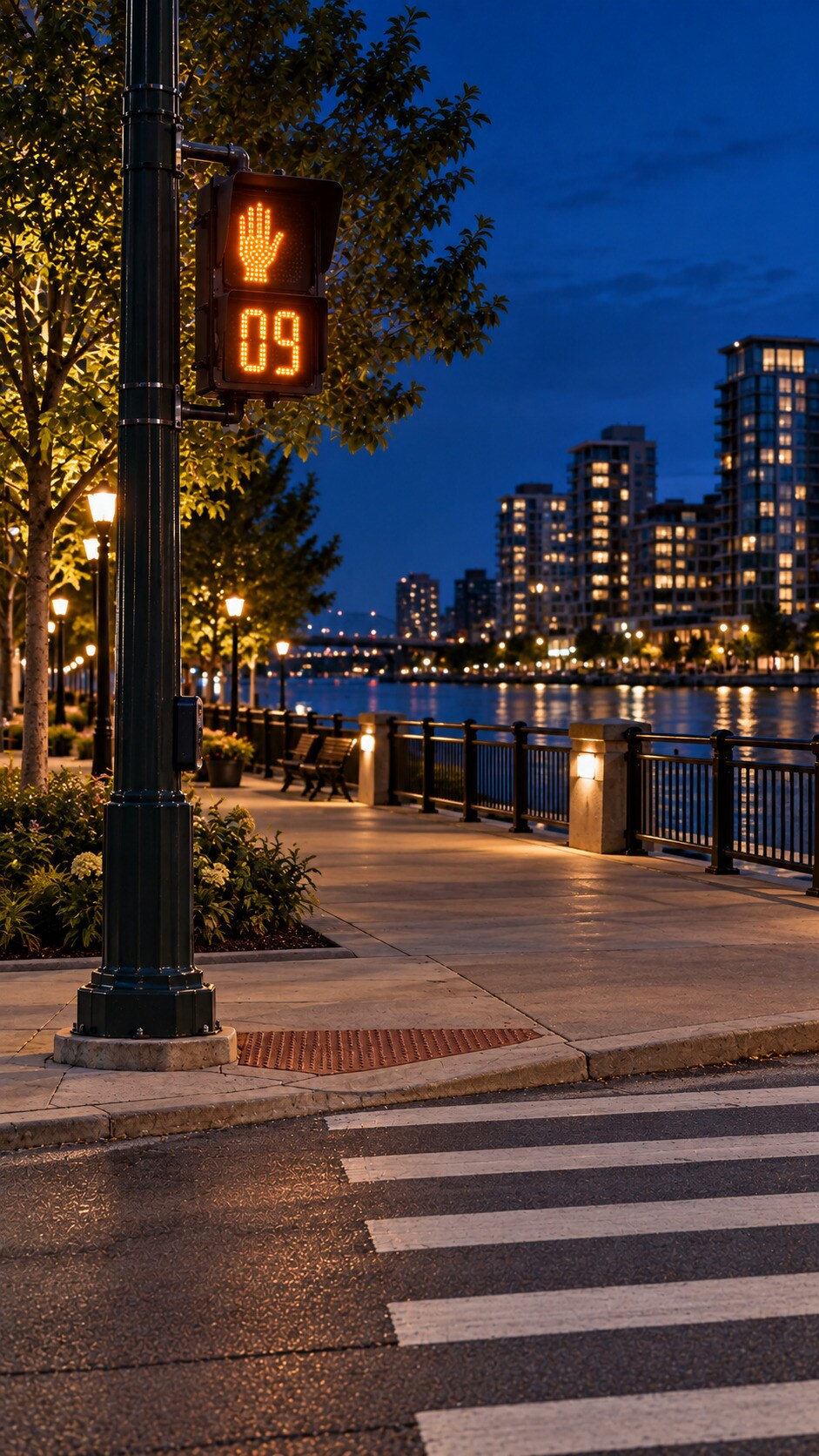

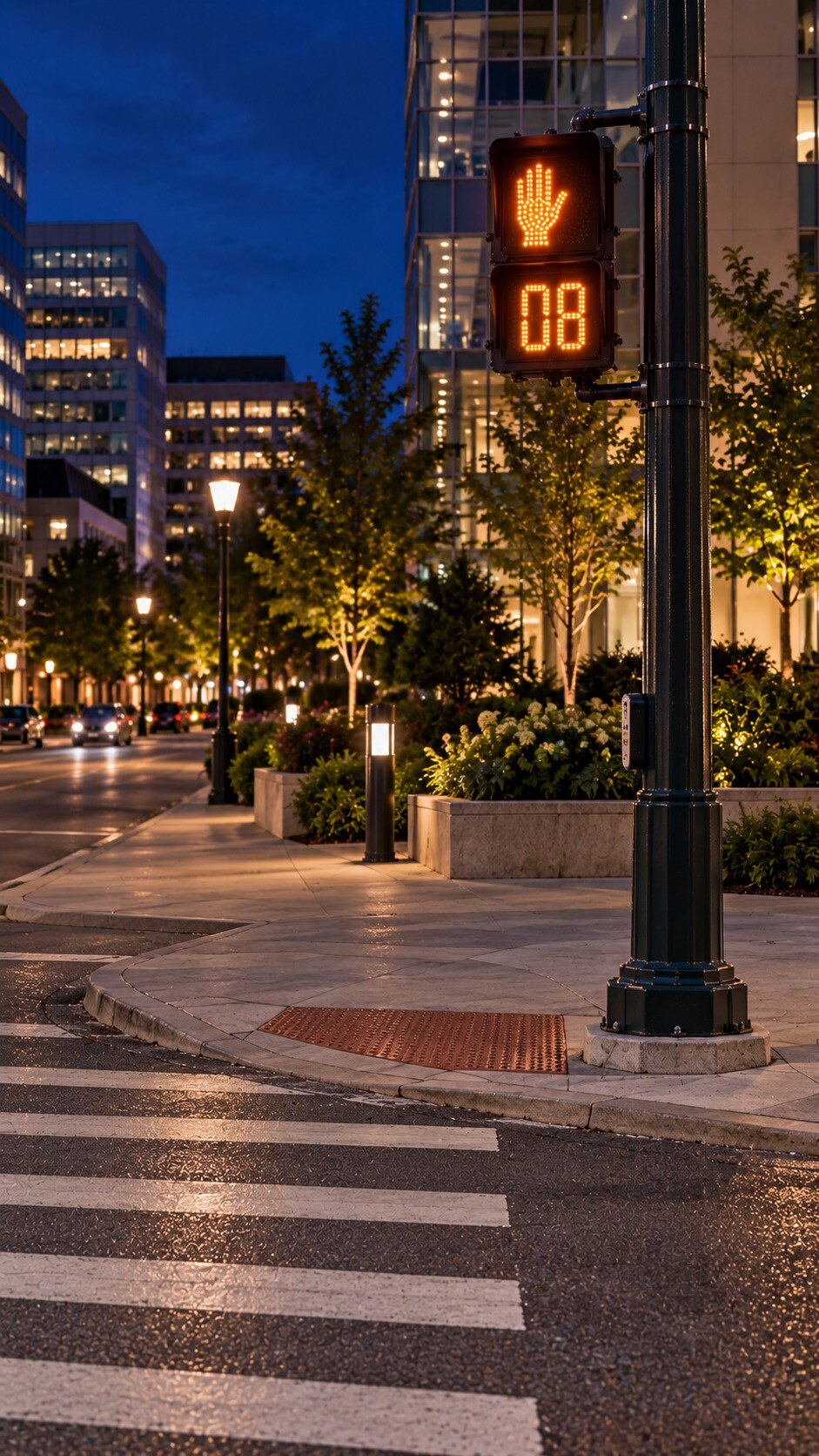

Countdown Signals in Active Crossings
PDF-Verified Model & Performance Data
Source: LEOTEK Frontier WIDOT 12-inch PED Traffic Signal Module Data Sheet, 7-23-25
| Model | Indication | Color | Typical Power | Minimum Luminance |
|---|---|---|---|---|
| 430-7773-001XWI | Countdown | Orange | 7.5W | 1,400 cd/m² |
Electrical & Compliance Data
| Input voltage | 80–135Vac RMS, 60 ± 3 Hz |
|---|---|
| Compliance | ITE PTCSI Part 2 dated August 4, 2010; WIDOT requirements; Intertek / ETL |
| Safety standards | CSA C22.2 No. 250.13:22; UL 8750, 2nd Edition |
| Transient protection | Up to 6 kV ring wave |
| Application | WIDOT 12 × 12-inch countdown pedestrian module |
Technical FAQ
Is this a countdown module or a complete Hand/Person assembly?
This listing identifies a 12 × 12-inch countdown indication. Verify the exact ordered assembly and existing pedestrian head before assuming it also includes Hand and Walking Person symbols.
What should I compare for a 12 × 12-inch replacement?
Confirm the display opening, countdown indication, digit arrangement, terminals, controller interface, input range, and complete 430 ordering code against the current specification.
Does the visual countdown itself provide an accessible pedestrian signal (APS)?
No. A visual countdown conveys information by sight. APS adds nonvisual audible and vibrotactile information and requires coordination of the complete crossing design with the responsible agency.
Specifications
Family
Series
Certification
Indication
Lens Size
Color of Indication
Voltage
Warranty
Terminals
Resources
Related Products
LEOTEK HM Series 12″x 12″ Pedestrian Signal Module, Hand & Person Overlap, 80-135Vac, Canada, Square
Hand & Person Overlap
Hand & Person Overlap
Side by side
