Frontier Ball 8″ / 12″ 80-135Vac ITE Long Life LED Traffic Light Module
The LEOTEK Frontier Ball 8″/12″ 80-135Vac ITE LED Traffic Light Module is designed to deliver high visibility, consistent performance, and long-term reliability for signalized intersections. Built to meet ITE traffic signal standards, this module ensures clear and uniform ball indications that enhance driver recognition and overall roadway safety.
The Frontier series is engineered for straightforward installation into standard traffic signal housings, making it ideal for both retrofit projects and new deployments. Advanced optical design and effective thermal management support stable light output over time, while the energy-efficient LED system helps reduce power consumption and maintenance requirements.
The “Long Life” designation refers exclusively to an extended 15-year limited warranty (compared to the standard 5-year warranty). It does not indicate a unique or separate LED technology, but rather extended warranty coverage to support long-term infrastructure planning and lifecycle cost reduction.
Features
- 8″ / 12″ circular LED traffic-signal module
- 80-135Vac operation
- Red, yellow, and green ball indications
- 15-year limited warranty
- Designed for compatible signal housings
- For retrofit and new installations
Long-Life Ball Signals in the Field
PDF-Verified Model & Performance Data
Source: Long Life LED Traffic Signal Modules Specification Sheet, 7-9-25, page 1
| Size / Color | Tinted Lens Model | Clear Lens Model | Typical Power | Dominant Wavelength | Minimum Maintained Intensity |
|---|---|---|---|---|---|
| 8″ Red | 433-1110-003XL15 | 433-1170-003XL15 | 6.1W | 626 nm | 165 cd |
| 8″ Yellow | 433-3130-901XL15 | 433-3170-901XL15 | 6.5W | 589 nm | 410 cd |
| 8″ Green | 433-2120-001XL15 | 433-2170-001XL15 | 6.2W | 500 nm | 215 cd |

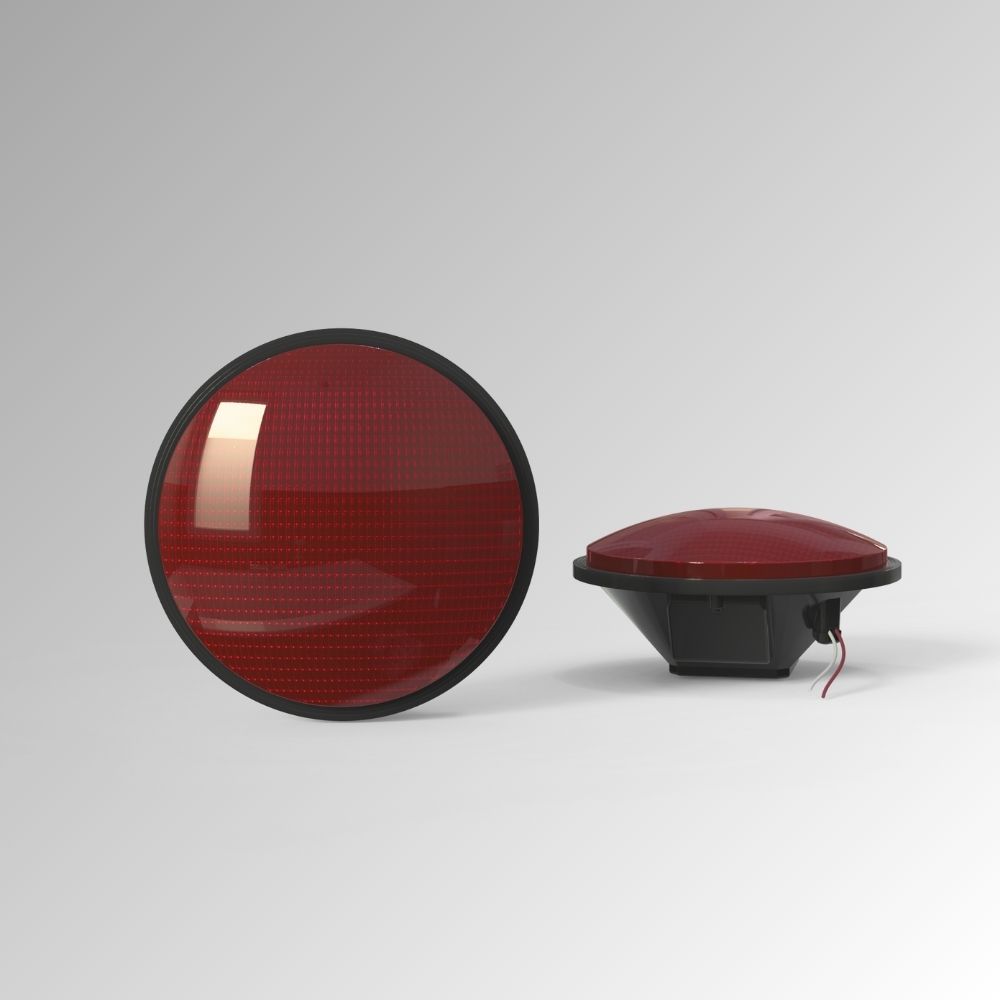

| 12″ Red | 433-1210-003XL15 | 433-1270-003XL15 | 7W | 626 nm | 365 cd |

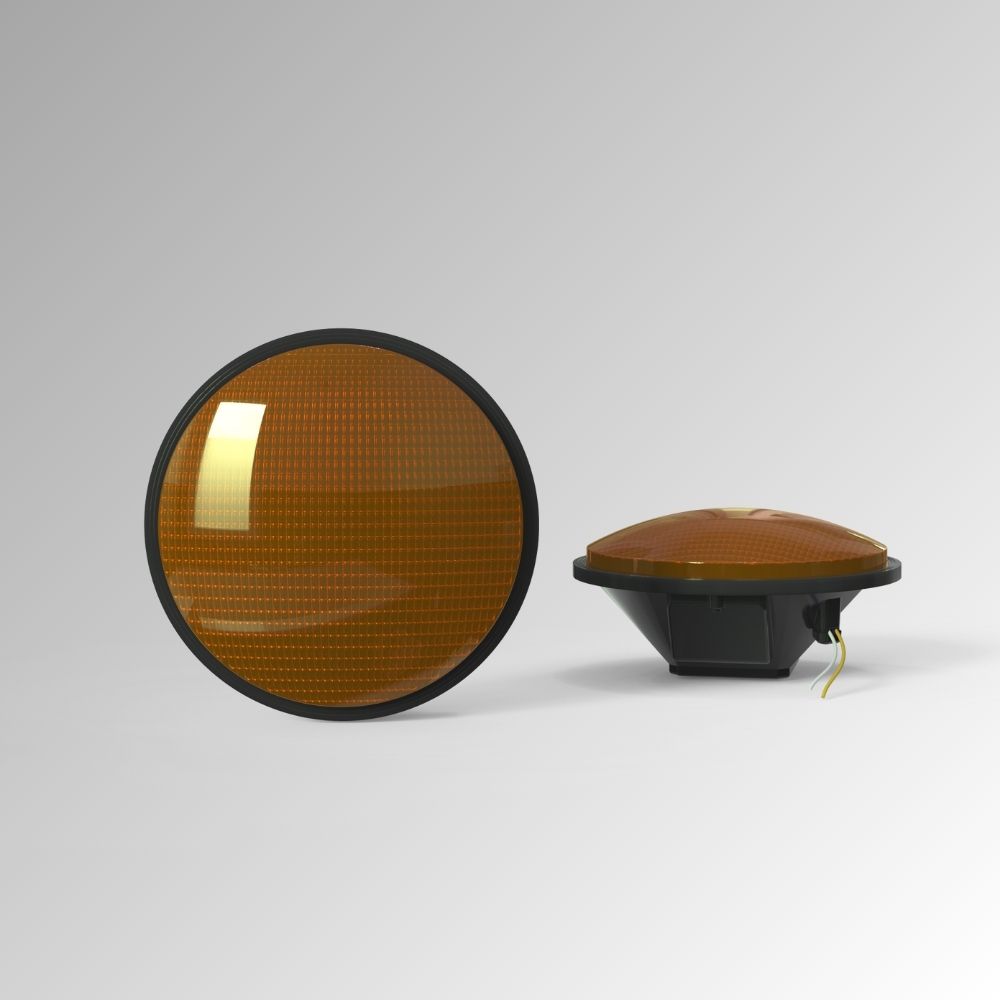

| 12″ Yellow | 433-3230-901XL15 | 433-3270-901XL15 | 9W | 589 nm | 910 cd |
| 12″ Green | 433-2220-001XL15 | 433-2270-001XL15 | 7W | 500 nm | 475 cd |
Electrical & Compliance Data
| Input voltage | 80–135Vac RMS, 60 ± 3 Hz; 120Vac nominal |
|---|---|
| Operating temperature | -40°C to +74°C |
| Switching time | Turn-on and turn-off below 75 ms |
| Power quality | Power factor above 0.9; total harmonic distortion below 20% |
| Failed-state impedance | Above 250 kΩ within 300 ms |
| Compliance | ITE VTCSH LED Circular Signal Supplement (June 27, 2005); Intertek / ETL |
| Safety standards | CSA C22.2 No. 250.0-21; CSA C22.2 No. 250.13-22; UL 1598:2021 |
| Warranty | 15-year full performance warranty |
PDF-Verified Model & Performance Data
Source: Long Life LED Traffic Signal Modules Specification Sheet, 7-9-25, page 1
| Size / Color | Tinted Lens Model | Clear Lens Model | Typical Power | Dominant Wavelength | Minimum Maintained Intensity |
|---|---|---|---|---|---|
| 8″ Red | 433-1110-003XL15 | 433-1170-003XL15 | 6.1W | 626 nm | 165 cd |
| 8″ Yellow | 433-3130-901XL15 | 433-3170-901XL15 | 6.5W | 589 nm | 410 cd |
| 8″ Green | 433-2120-001XL15 | 433-2170-001XL15 | 6.2W | 500 nm | 215 cd |
| 12″ Red | 433-1210-003XL15 | 433-1270-003XL15 | 7W | 626 nm | 365 cd |
| 12″ Yellow | 433-3230-901XL15 | 433-3270-901XL15 | 9W | 589 nm | 910 cd |
| 12″ Green | 433-2220-001XL15 | 433-2270-001XL15 | 7W | 500 nm | 475 cd |
Electrical & Compliance Data
| Input voltage | 80–135Vac RMS, 60 ± 3 Hz; 120Vac nominal |
|---|---|
| Operating temperature | -40°C to +74°C |
| Switching time | Turn-on and turn-off below 75 ms |
| Power quality | Power factor above 0.9; total harmonic distortion below 20% |
| Failed-state impedance | Above 250 kΩ within 300 ms |
| Compliance | ITE VTCSH LED Circular Signal Supplement (June 27, 2005); Intertek / ETL |
| Safety standards | CSA C22.2 No. 250.0-21; CSA C22.2 No. 250.13-22; UL 1598:2021 |
| Warranty | 15-year full performance warranty |
Technical FAQ
How do I identify a 433 Long Life Ball part?
The published Long Life ordering codes end in XL15. Match the complete code to the 8-inch or 12-inch housing, indication color, and tinted or clear lens in the current model table.
Does the 15-year warranty apply to standard 433 parts?
No. The 15-year listing applies to the specified XL15 Long Life models. Check the current warranty document for the exact supplied part and its coverage terms.
Can one Long Life part be used for every color and lens finish?
No. Red, yellow, and green indications and the listed lens finishes have distinct part numbers. Use the approved project specification and complete ordering code.
