LEOTEK IL Series Railroad Signal Module, Transit Indications
The LEOTEK IL Series Railroad Signal Module – Transit Indications is a high-performance LED signaling solution designed for rail transit and railroad applications requiring clear, consistent, and reliable visual guidance. Engineered to meet the operational demands of rail environments, the IL Series delivers excellent visibility while significantly reducing maintenance and energy costs.
Available in 8″ and 12″ lens sizes, the IL Series supports standard Transit and Transit – Bar Horizontal indications. Operating on 120Vac (80–135Vac), the module is fully compatible with conventional railroad signal systems and is suitable for both new installations and retrofit projects.
Utilizing advanced LED technology, the IL Series provides uniform light output, wide viewing angles, and strong contrast for improved recognition. Lens options include clear and tinted, allowing flexibility to meet different agency standards and site-specific visibility requirements. Built for outdoor use, the rugged construction ensures dependable performance in harsh weather and high-vibration rail environments.
Features
- the specified size LED railroad signal module
- Clear indication for rail and transit applications
- Uniform LED output for dependable recognition
- Rugged construction for rail environments
- Energy-efficient platform with reduced maintenance
- For compatible railroad-signal housings
PDF-Verified Model & Performance Data
Source: IL Series Transit Indications Signal Module Specification Sheet
| Size / Color | Model | Indication | Typical Power |
|---|---|---|---|

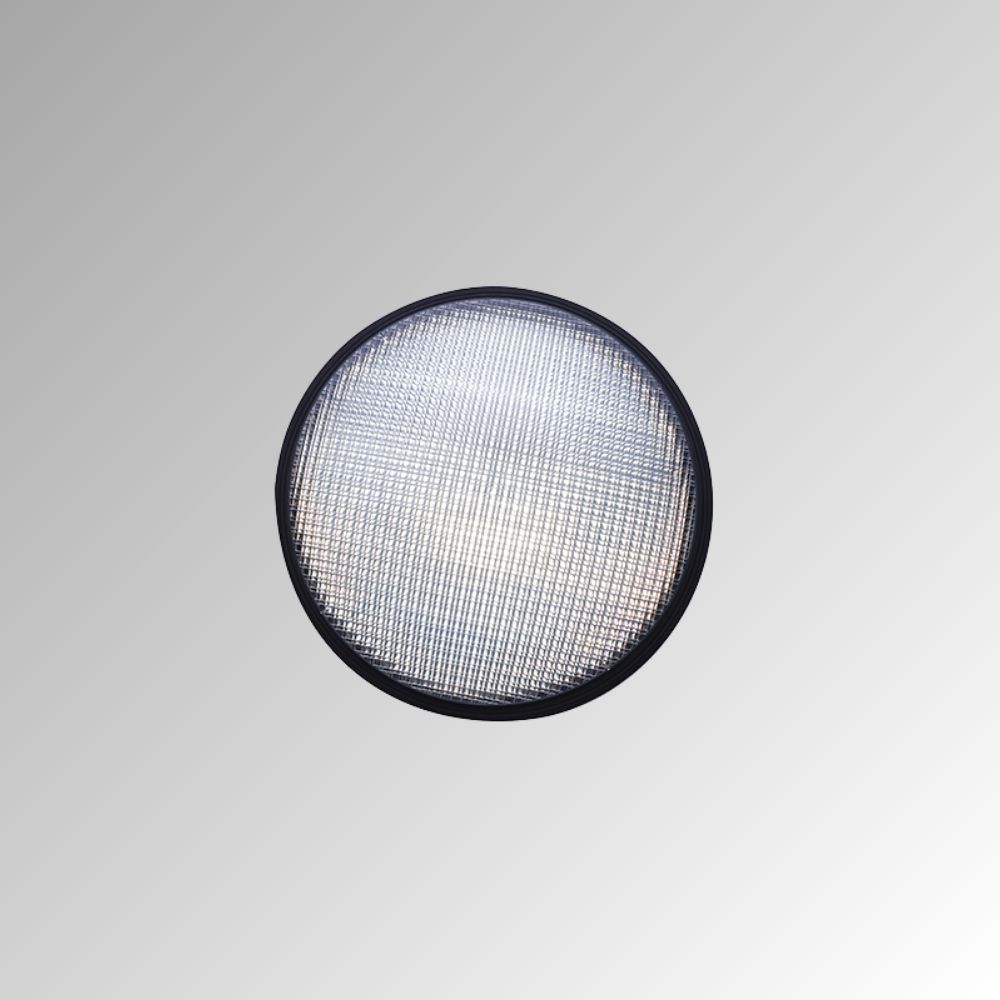

| 8″ White | TSL-08W-LX-IL6-A1 | Circular | 5.9W |
| 12″ White | TSL-12W-LX-IL6-A1 | Circular | 6.9W |

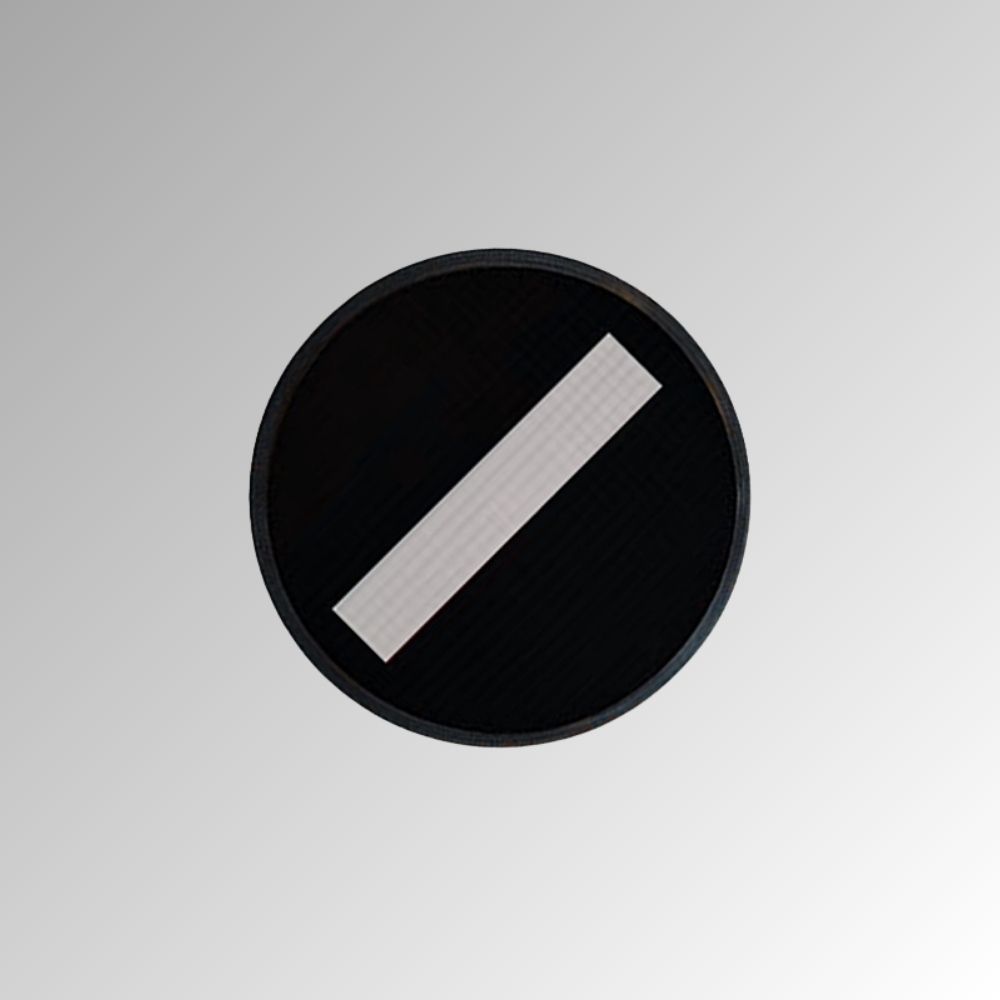

| 12″ White | TSL-12W-IL6-TR-A1 | Transit indication TR | 6.9W |

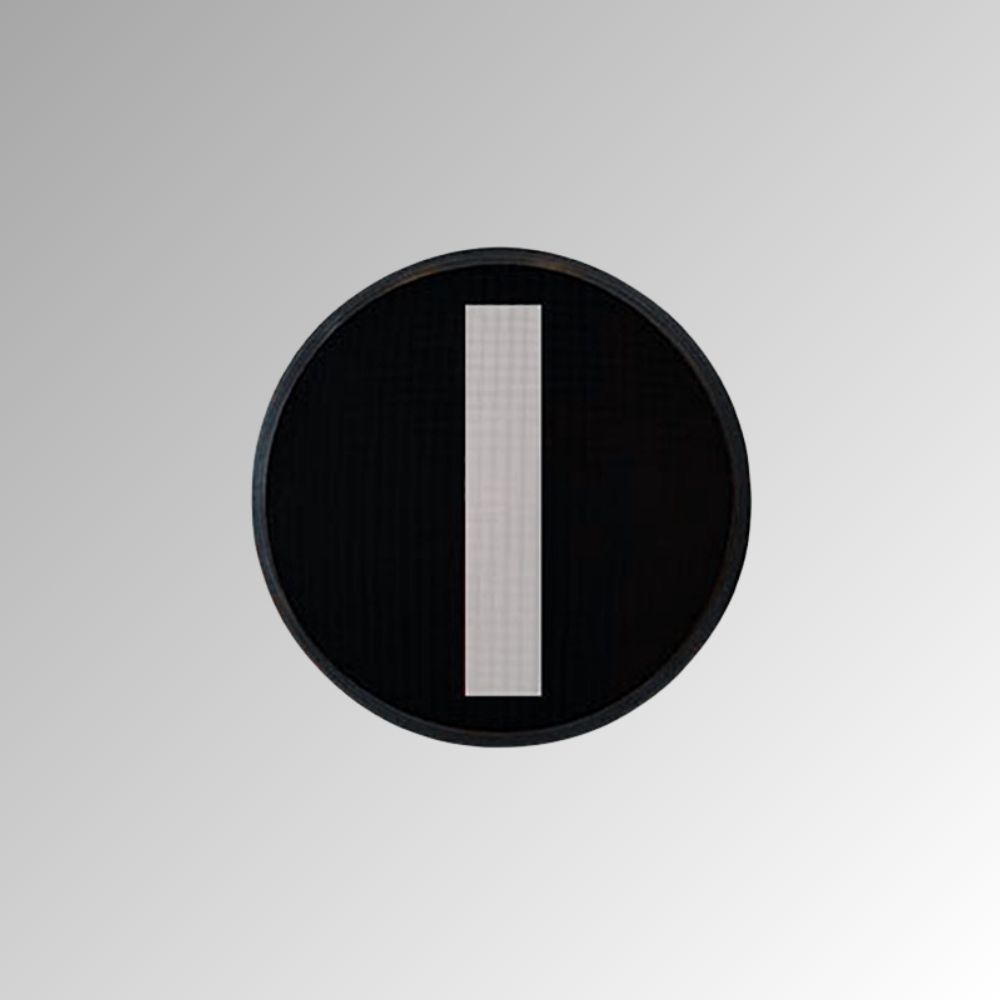

| 12″ White | TSL-12W-IL6-BV-A1 | Transit indication BV | 6.9W |
| 12″ White | TSL-12W-IL6-BD-A1 | Transit indication BD | 6.9W |

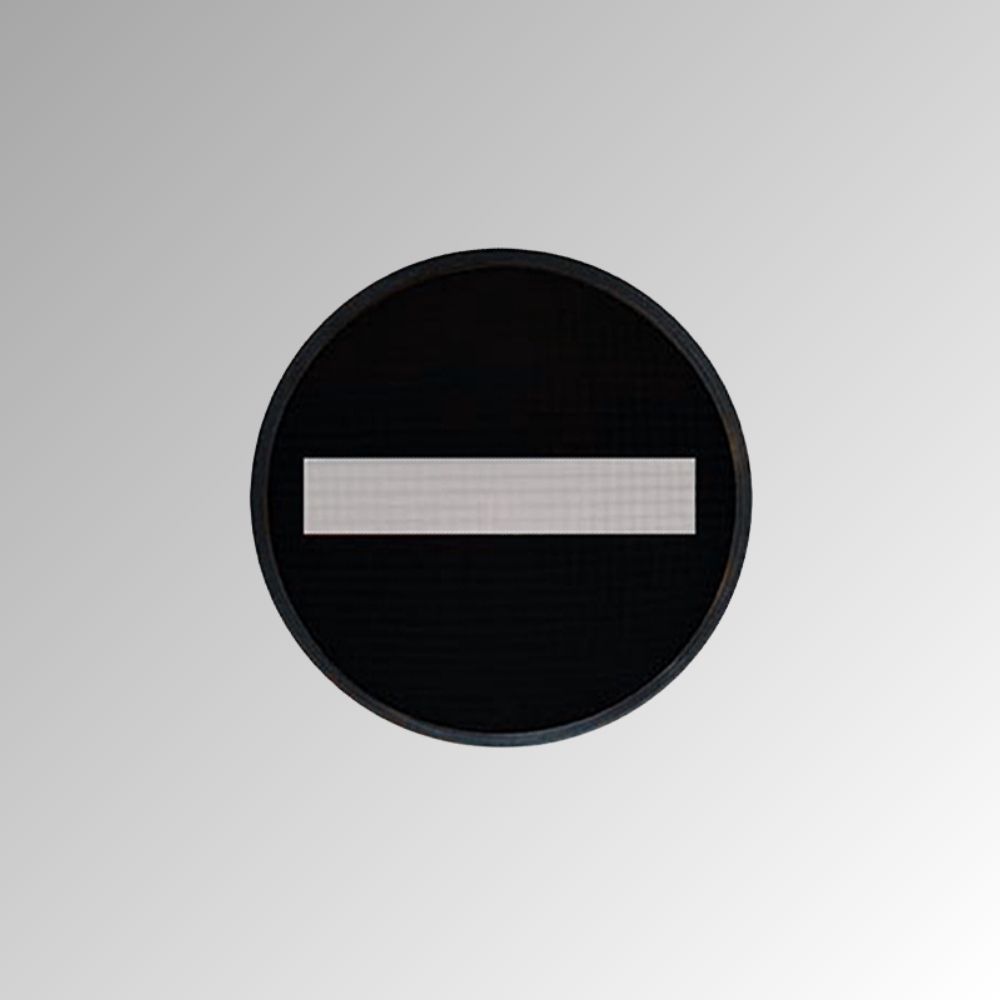

| 12″ White | TSL-12W-IL6-BH-A1 | Transit indication BH | 6.9W |

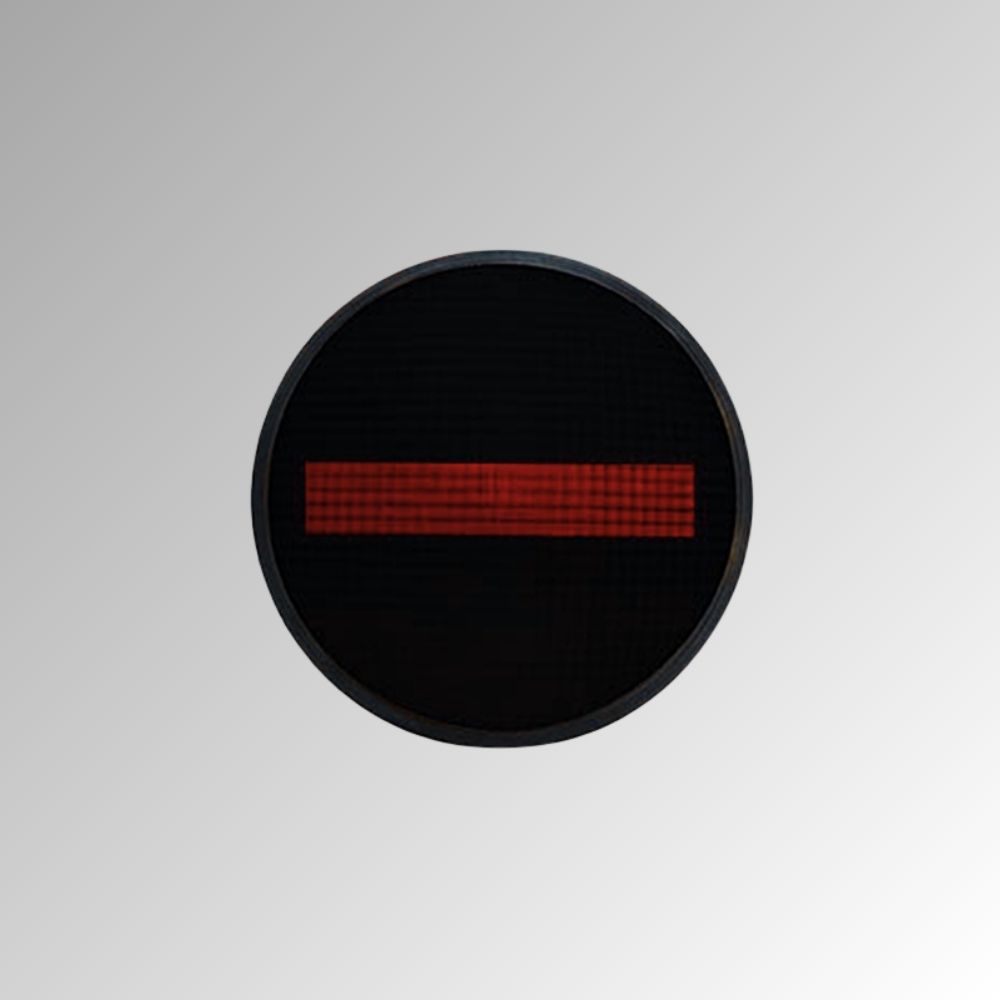

| 12″ Red | TSL-12R-IL6-BH-A1 | Transit indication BH | 5.6W |
Electrical & Compliance Data
| Input voltage | 80–135Vac, 60 Hz |
|---|---|
| Operating temperature | -40°C to +74°C |
| Power factor | Above 0.9 |
| Switching time | Below 75 ms |
| Compliance | AREMA; Transport Canada |
| Environmental / EMC | MIL-STD-810F; FCC |
Technical FAQ
Does every transit indication come in both 8-inch and 12-inch sizes?
The IL Transit family lists both sizes, but indication and order code vary by model. Select the exact symbol and diameter from the current transit data sheet rather than assuming every combination is offered.
What distinguishes this module from the special T-Bar/X-Sign listing?
This product lists Transit and Transit–Bar Horizontal indications. The separate special-application listing identifies T-Bar and X-Sign options; match the approved symbol and complete catalog number.
Which electrical and lens details need confirmation?
The listed input is 120Vac nominal (80–135Vac). Confirm the red or white light color, clear or tinted lens, connection and housing for the selected part.
