LEOTEK IL6-P3 Series Traffic Signal Module 12″ Arrow 80-135Vac
The LEOTEK IL6-P3 Series 12-inch Arrow Traffic Signal Module delivers precise red, yellow and green directional indications for standard 80-135Vac traffic-control systems. It is designed for turn lanes, lane-control applications, new intersections and retrofit installations using compatible signal housings.
Intertek ETL verification, patented optical technology and wide-angle uniformity support dependable visibility. The module also combines weatherized connectors, constant-current operation, advanced thermal management and multi-level transient protection for demanding roadway environments.
Features
- 12″ LED arrow traffic-signal module
- 80-135Vac operation
- Red, yellow, and green arrow indications
- Uniform LED optics with wide viewing performance
- Designed for compatible signal housings
- For retrofit and new installations

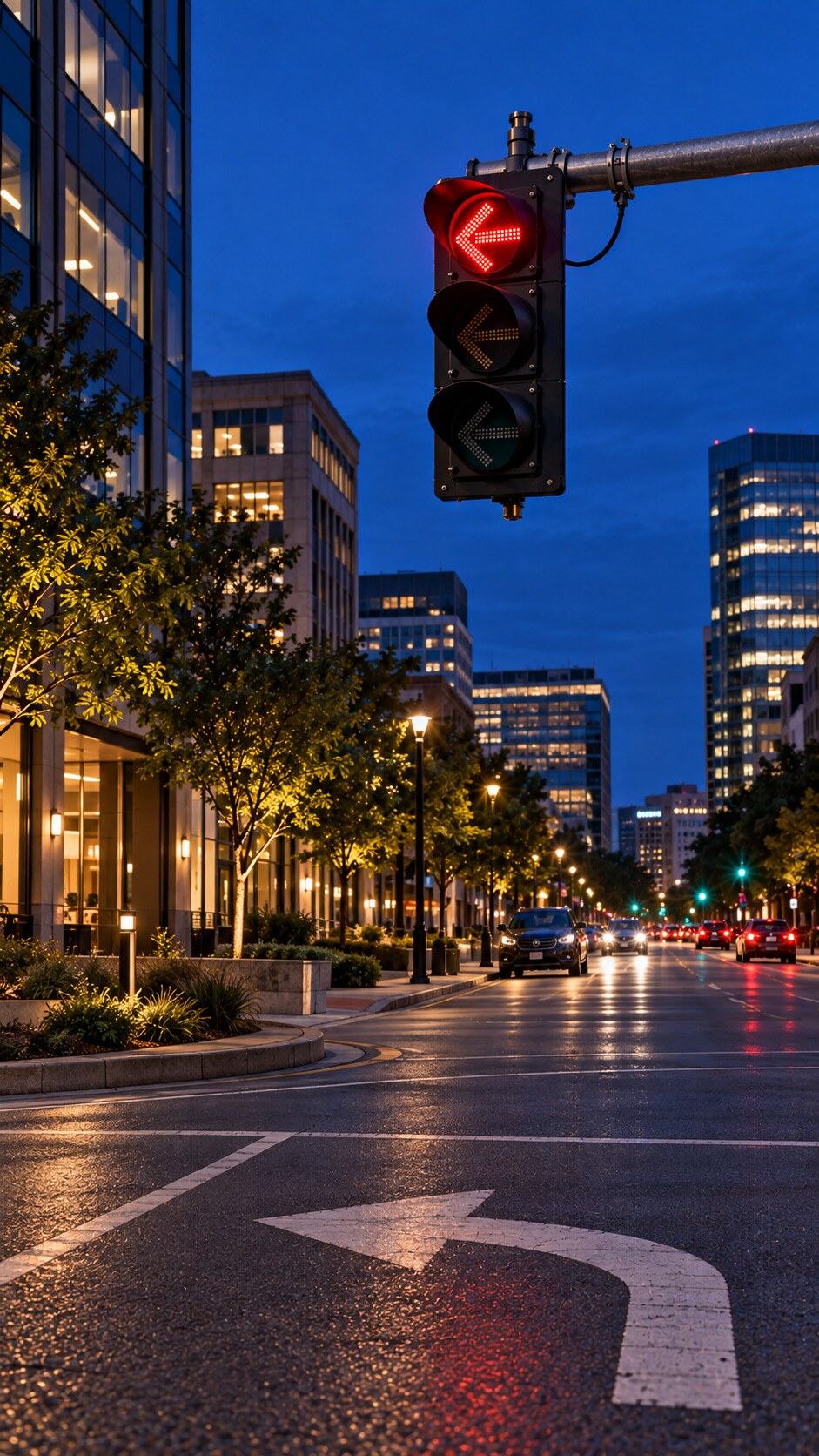

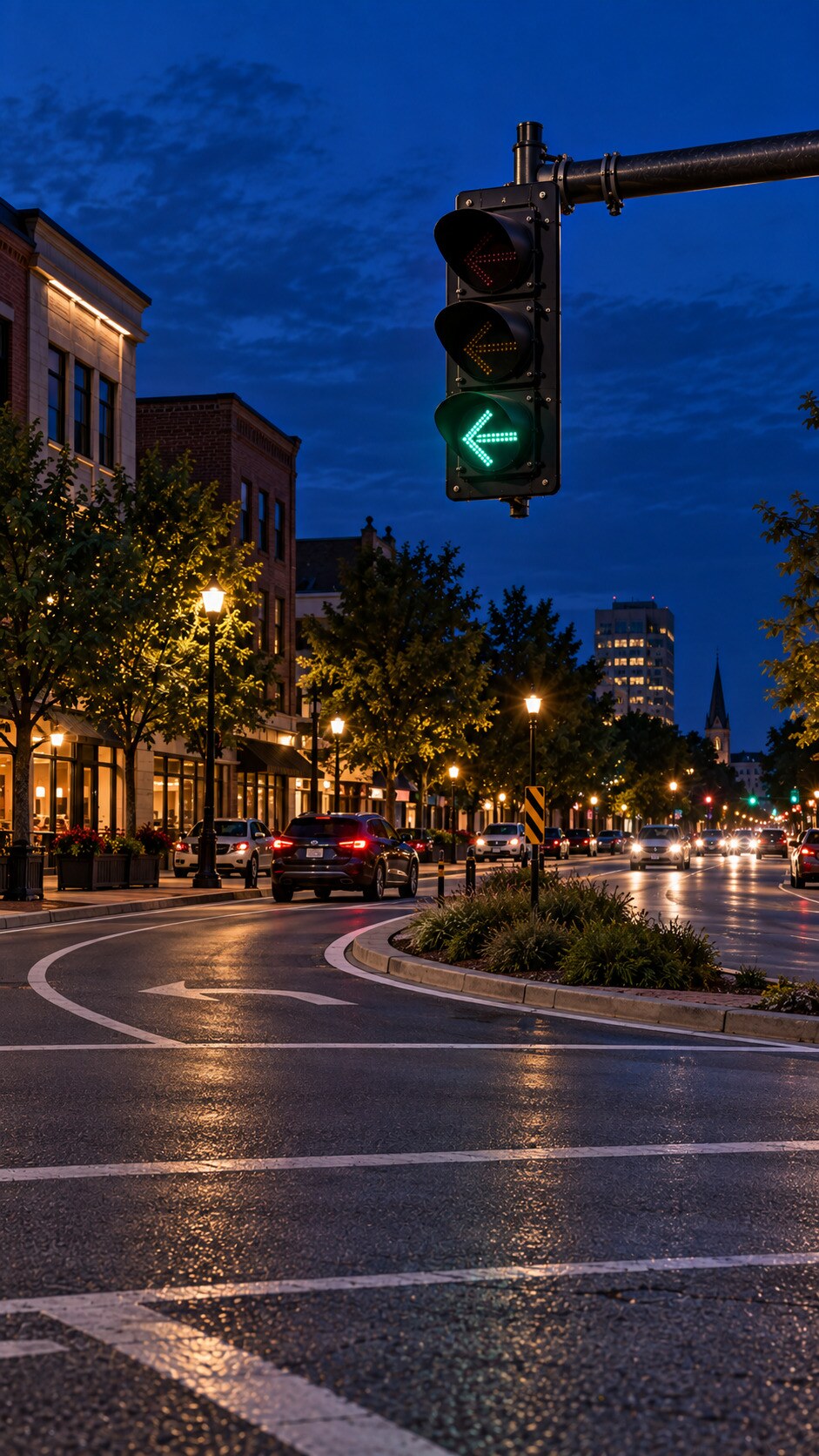

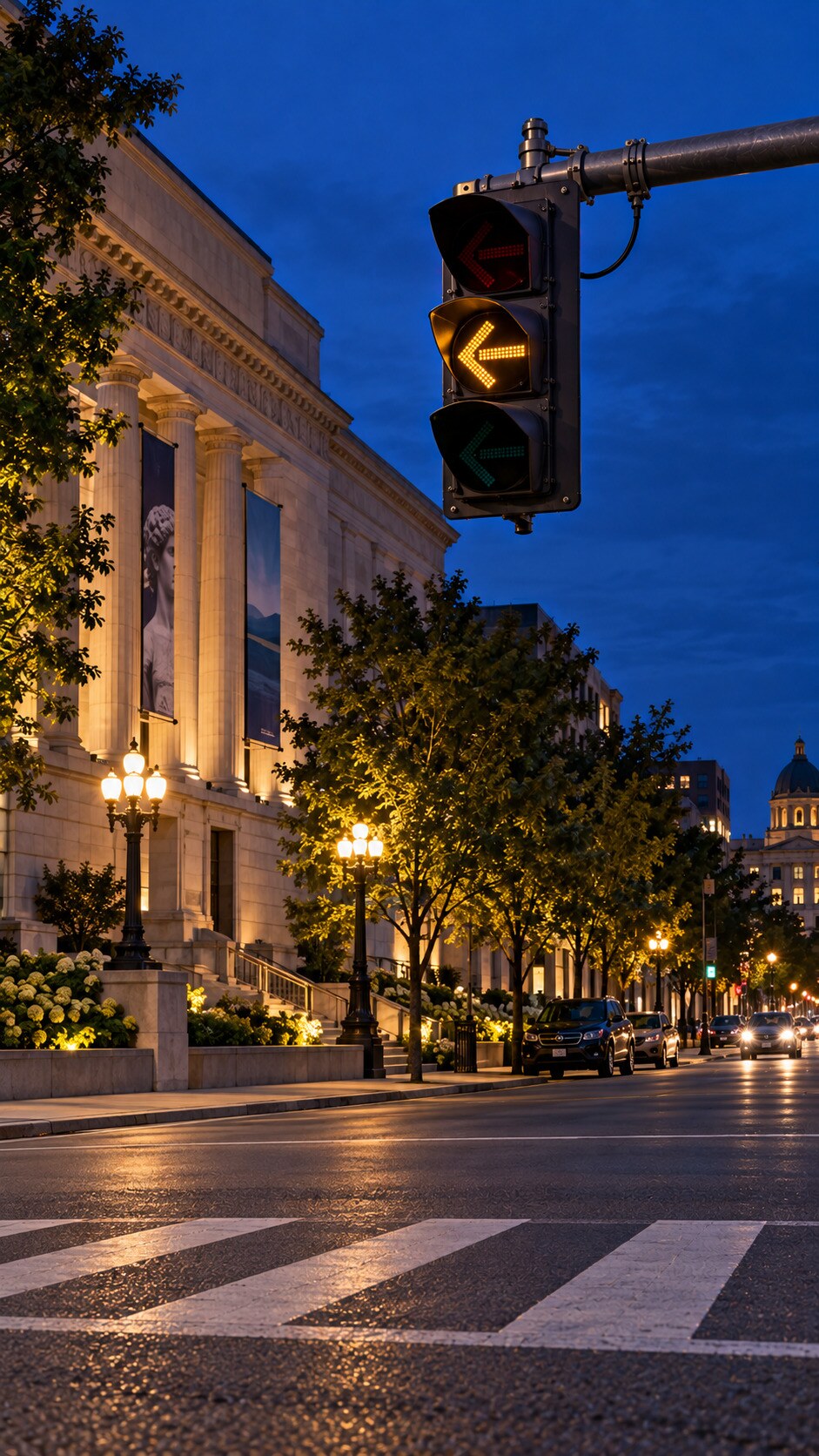

IL6-P3 in Real-World Traffic Applications
PDF-Verified Model & Performance Data
Source: IL6-P3 12-inch 80–135Vac Signal Arrow Specification Sheet
| Color | Tinted Lens Model | Clear Lens Option | Typical Power | Dominant Wavelength | Minimum Maintained Intensity |
|---|---|---|---|---|---|
| Red | TSL-12RA-IL6-A1-P3 | Add -CLR suffix | 6.2W | 626 nm | 58.4 cd |
| Yellow | TSL-12YA-IL6-A1-P3 | Add -CLR suffix | 7.3W | 589 nm | 145.6 cd |
| Green | TSL-12GA-IL6-A1-P3 | Add -CLR suffix | 6.0W | 500 nm | 76 cd |
Electrical & Compliance Data
| Input voltage | 80–135Vac |
|---|---|
| Operating temperature | -40°C to +74°C |
| Switching time | Below 75 ms |
| Turn-off threshold | Above 35Vac |
| Power quality | Power factor above 0.9; total harmonic distortion below 20% |
| Compliance | ITE VTCSH LED Vehicle Arrow Traffic Signal Supplement (2007); ETL |
| Transient / EMC | FCC; MIL-STD-810F / 883; NEMA above 2 kV; IEC 3 kV; ring wave 6 kV |
| Lens configuration | Tinted lens standard; clear lens optional with -CLR suffix |
Technical FAQ
Which codes identify the 12-inch red, yellow and green arrows?
The manufacturer’s IL6-P3 sheet lists TSL-12RA-IL6-A1-P3 (red), TSL-12YA-IL6-A1-P3 (yellow), and TSL-12GA-IL6-A1-P3 (green). Specify the complete code and verify the signal plan.
How do I specify the clear lens?
The 12-inch tinted lens is standard; the clear option uses the -CLR suffix. Confirm the exact color and lens combination in the current IL6-P3 specification before ordering.
Is this the same as a 48Vdc or 10–28Vdc arrow?
No. This listing is the 12-inch 80–135Vac configuration. Check the controller output, housing, connections and complete model code before selecting a low-voltage variant.
Specifications
Family
Series
Certification
Color
Indication
Color of Lens
Lens Size
Warranty
Voltage
Terminals
Resources

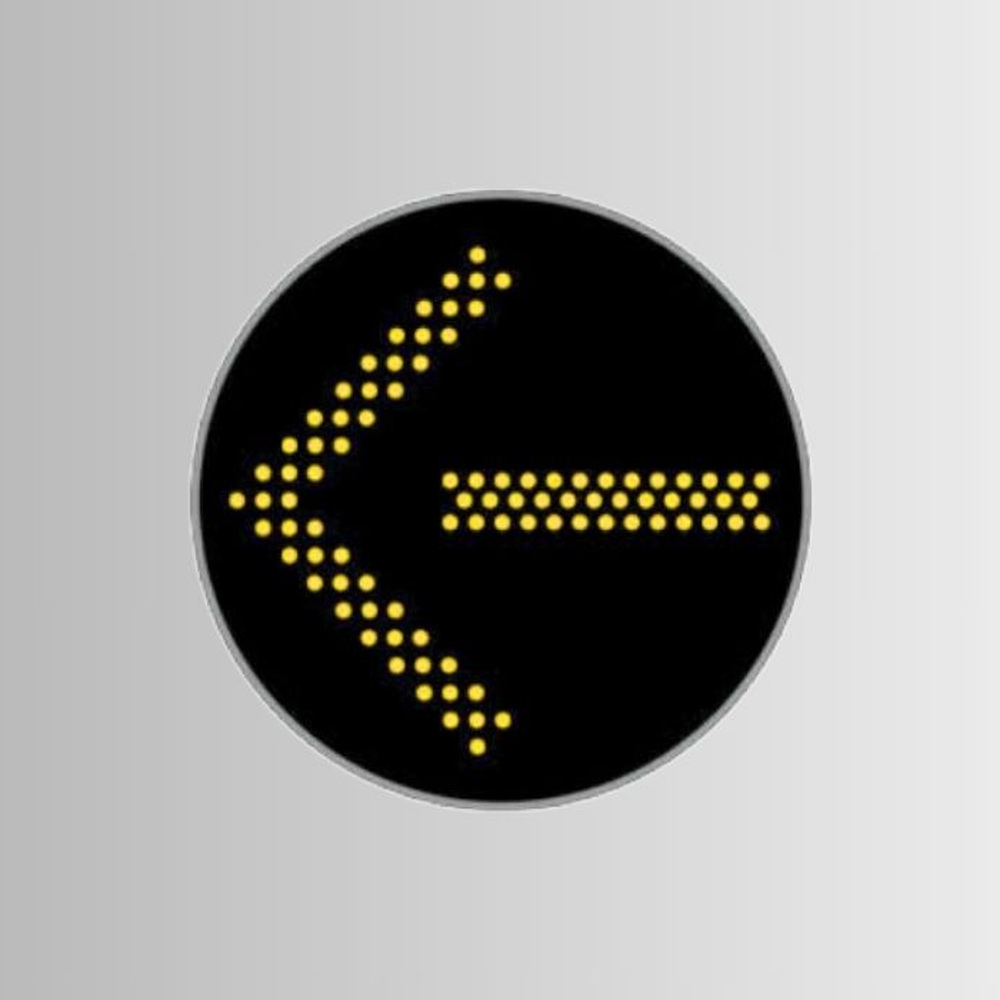

Related Products
