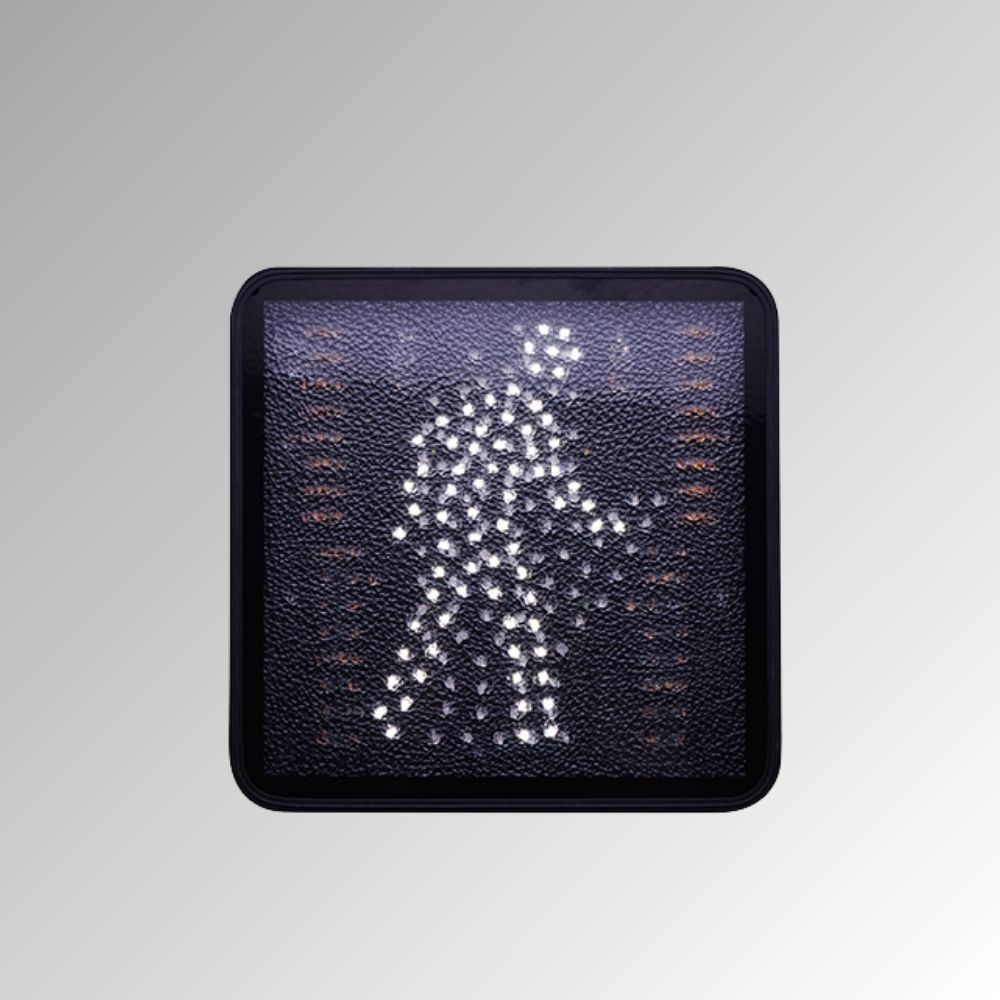

LEOTEK HM Series 12″x 12″ Pedestrian Signal Module, Hand & Person Overlap, 80-135Vac, Canada, Square
he LEOTEK HM Series 12″ × 12″ Pedestrian Signal Module is a high-performance LED pedestrian signal designed for Canadian roadway and intersection applications. Part of the LEOTEK Frontier family, the HM Series delivers a clear and reliable Hand & Person Overlap indication, supporting safe and efficient pedestrian movement at signalized crossings.
This square-format pedestrian module operates on 120Vac (80–135Vac) and is fully compatible with standard pedestrian signal housings. Utilizing Lunar White and Portland Orange LED symbols, the HM Series provides excellent contrast, high visibility, and consistent recognition across varying ambient light and weather conditions.
Engineered with advanced LED optics, uniform light distribution, and robust thermal management, the HM Series ensures dependable long-term performance while minimizing maintenance and lifecycle costs. Its durable construction makes it well suited for continuous outdoor operation in demanding urban environments.
Features
- 12″ / 12″ LED pedestrian signal module
- Clear hand and person indications
- 80-135Vac operation
- High-contrast display with uniform visibility
- For compatible pedestrian-signal housings
- Durable weather-resistant construction
Hand & Person Signals in Canadian Streets
PDF-Verified Model & Performance Data
Source: CD/WM/HM/EH Series 12-inch Pedestrian Signal Module Specification Sheet, 02-03-26
| Model | Display Style | Indications | Colors | Typical Power |
|---|---|---|---|---|
| TP12H-HM | Full overlay | Hand / Man | Orange / White | 7W / 7W |
| TP12H-HM-C3 | Outline hand / full man | Hand / Man | Orange / White | 7W / 7W |
Electrical & Compliance Data
| Input voltage | 80–135Vac |
|---|---|
| Operating temperature | -40°C to +74°C |
| Switching time | Below 75 ms |
| Turn-off threshold | Above 35Vac |
| Power quality | Power factor above 0.9; total harmonic distortion below 20% |
| Compliance / EMC | ITE / ETL as listed by model; FCC; MIL-STD-810F / 883; NEMA transient above 2 kV |
Technical FAQ
What should I verify before ordering this module?
Confirm the signal-face size, indication, input range, lens option, terminal configuration, and full model number against the project specification.
Can this module be used as a direct replacement?
Use it only when the housing, electrical input, indication, and connection method match the existing assembly. Verify controller compatibility and agency requirements.
Where can I confirm exact model and performance data?
Use the PDF-verified table on this page and the downloadable specification sheet for final part selection.
