Side-by-Side Layout
Separate symbol areas improve instant recognition of WALK and DON’T WALK states.
DIL
LEOTEK DIL Series 16″ x 18″ Pedestrian Signal Module, Hand & Person Side by Side, 80-135Vac
The LEOTEK DIL Series Pedestrian Signal Module is designed to deliver clear and intuitive Hand and Walking Person side-by-side indications, enhancing pedestrian safety at signalized intersections. As part of the Frontier family, the DIL Series supports modern pedestrian crossing requirements while maintaining compatibility with existing traffic signal infrastructure.
Operating on 120Vac (80–135Vac), the module provides reliable LED performance with consistent light output and excellent visibility under a wide range of environmental conditions. The 16″ × 18″ format offers increased legibility for pedestrians at wider crossings and high-traffic urban intersections.
Available in Lunar White and Portland Orange, the DIL Series ensures compliance with common pedestrian signal color standards. Engineered for durability and long service life, the module helps agencies reduce maintenance frequency while maintaining dependable operation.
Features
- 16″ / 18″ LED pedestrian signal module
- Clear hand and person indications
- 80-135Vac operation
- High-contrast display with uniform visibility
- For compatible pedestrian-signal housings
- Durable weather-resistant construction

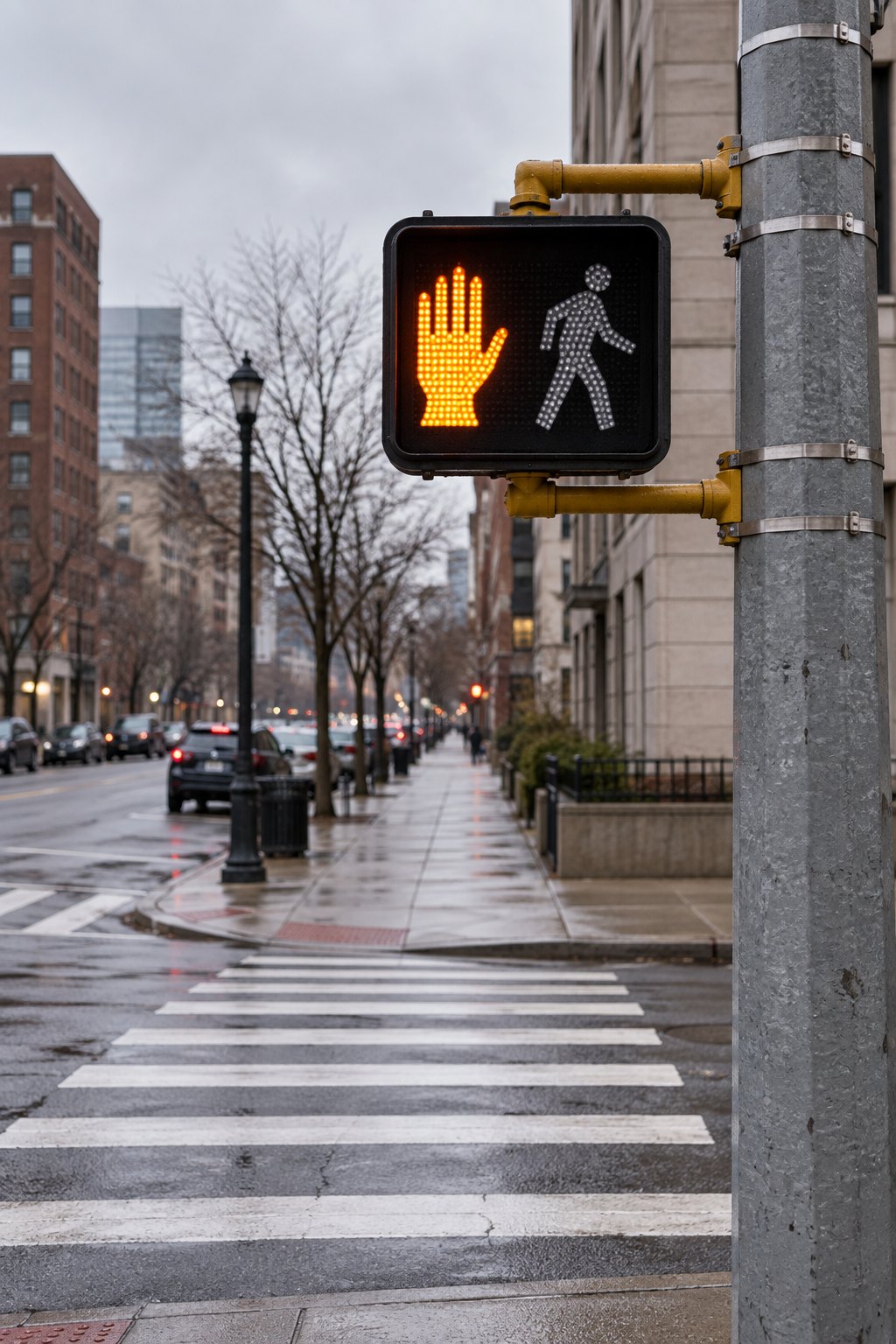

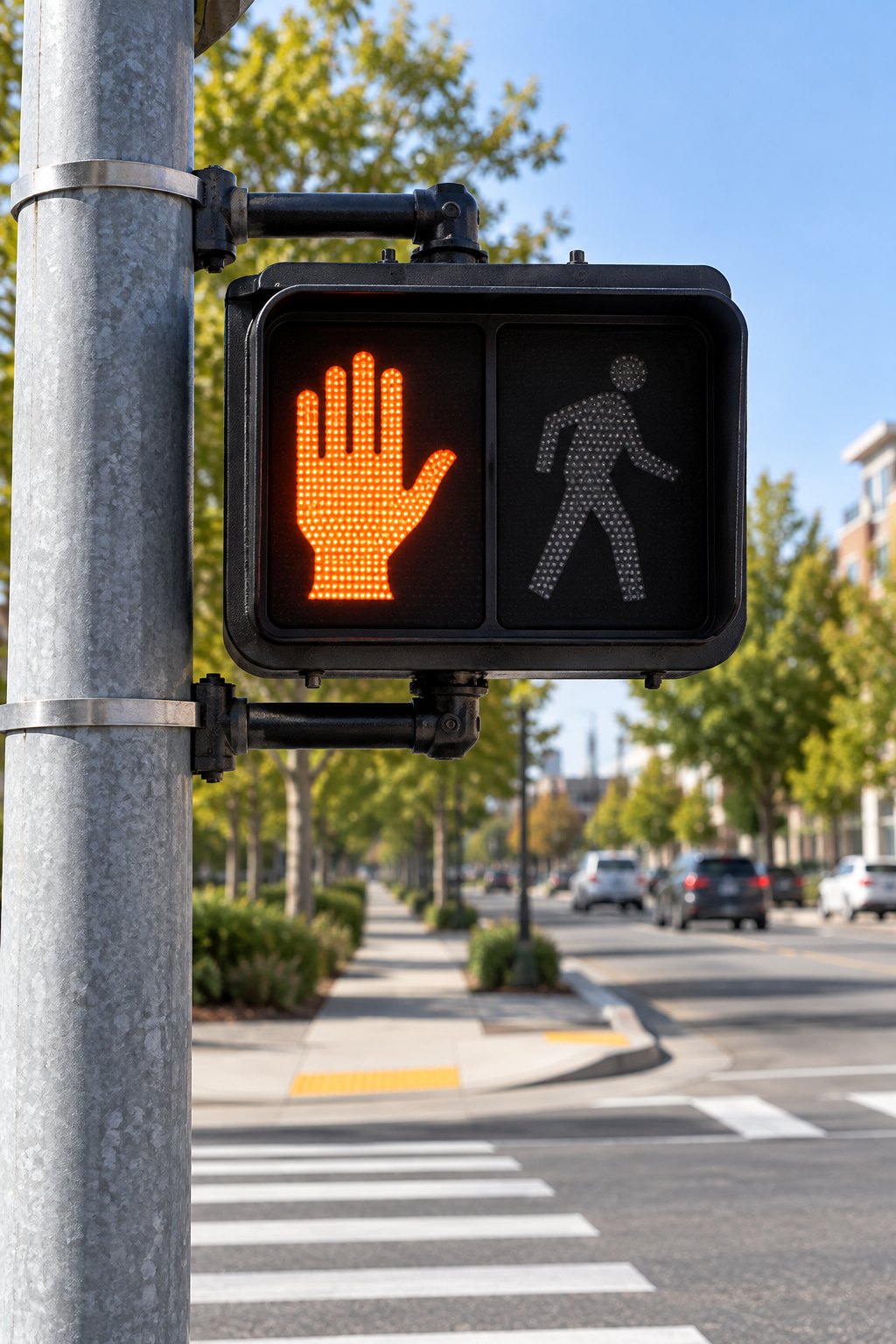

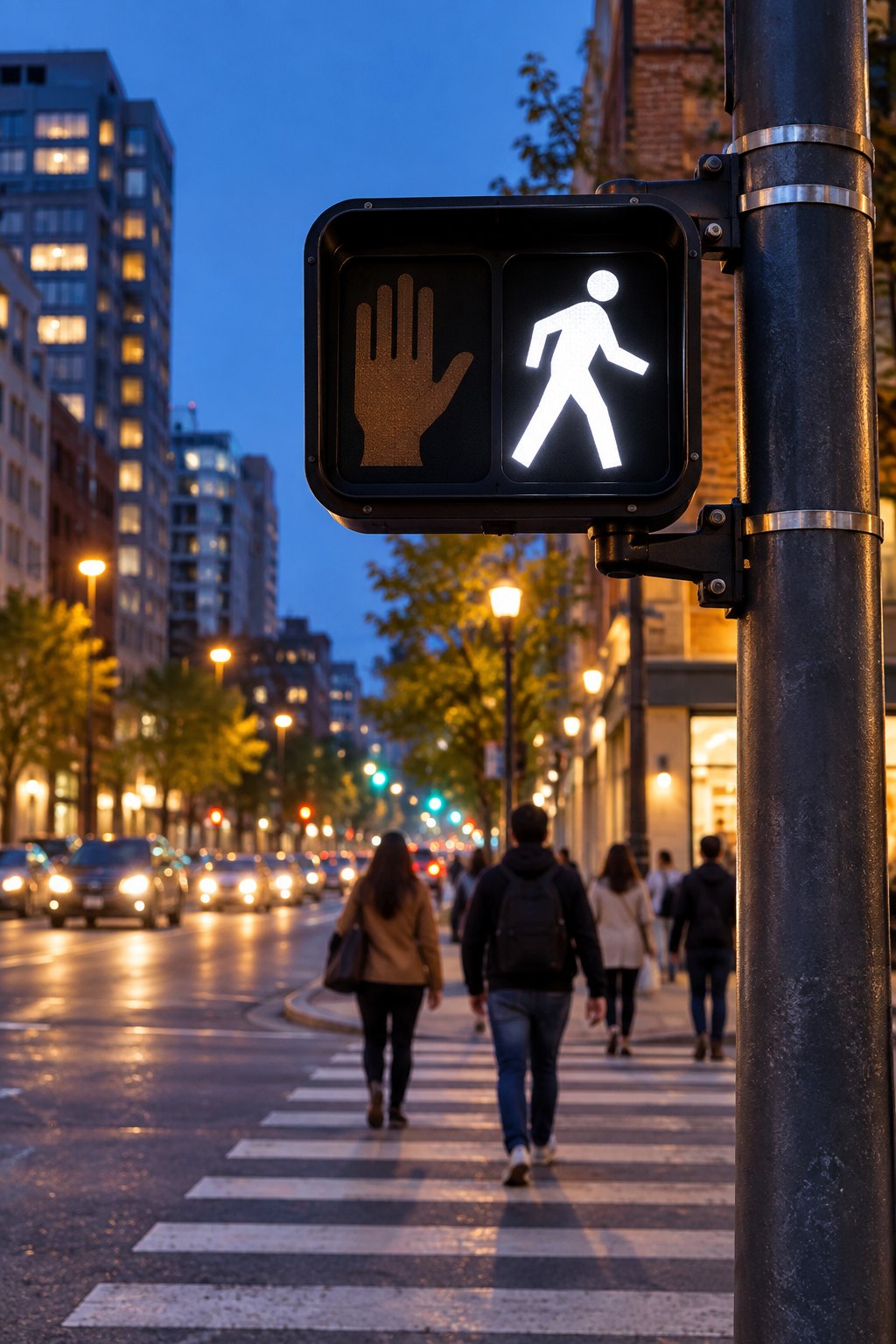

Side-by-Side Pedestrian Signals in the Field
LEOTEK DIL SERIES
Large-format side-by-side pedestrian guidance
A 16 × 18-inch module presenting Lunar White walking-person and Portland Orange hand indications side by side for clear recognition at wide or complex crossings.
Large 16 × 18 Format
Expanded viewing area supports longer sight lines and high-traffic crossings.
80–135Vac Input
Compatible with standard North American 120Vac pedestrian signal systems.
Retrofit Ready
Designed for compatible 16 × 18-inch pedestrian signal housings.
Verified Product Configuration
| Series | DIL |
|---|---|
| Indication | Hand & Person, side by side |
| Lens size | 16 × 18 inches |
| Colors | Lunar White / Portland Orange |
| Voltage | 120Vac (80–135Vac) |
| Warranty | 5 years |
| Application | Pedestrian crossings |
| Configuration | Side by side |
Technical note: Confirm the existing housing is designed for a 16 × 18-inch side-by-side module. This product is not interchangeable with 12 × 12-inch overlay or round Canadian formats.
Technical FAQ
Does this DIL 16 × 18 model include countdown digits?
The listed DIL configuration has separate side-by-side Hand and Walking Person indications; countdown digits are not listed. If the approved design requires digits, review the appropriate 430 combination configuration and its drawing.
Can this replace a 12 × 12 overlay module?
There is no direct interchangeability stated. The DIL is a 16 × 18-inch side-by-side format, so confirm the housing opening, mounting, connections, 80–135Vac supply and agency approval before selecting a replacement.
Which document should I use for an exact DIL order?
Use the DIL-DP Series 16 × 18 pedestrian signal specification in Resources and confirm its revision and complete model number. Generic 12-inch pedestrian documents do not establish fit for this format.
Specifications
Family
LEOTEK
Series
DIL
Certification
Indication
Side by side
Lens Size
16" x 18"
Color of Indication
White Lunar, Portland Orange
Voltage
120Vac (80-135Vac)
Warranty
Terminals
Resources
Related Products
HM
Indications:
Hand & Person Overlap
Hand & Person Overlap
Voltage: 120Vac (80-135Vac)
CD
Indications:
Countdown digits
Countdown digits
Voltage: 120Vac (80-135Vac)
430
Indications:
Upraised Hand, Countdown digits, Hand & Person
Upraised Hand, Countdown digits, Hand & Person
Voltage: 120Vac (80-135Vac)
