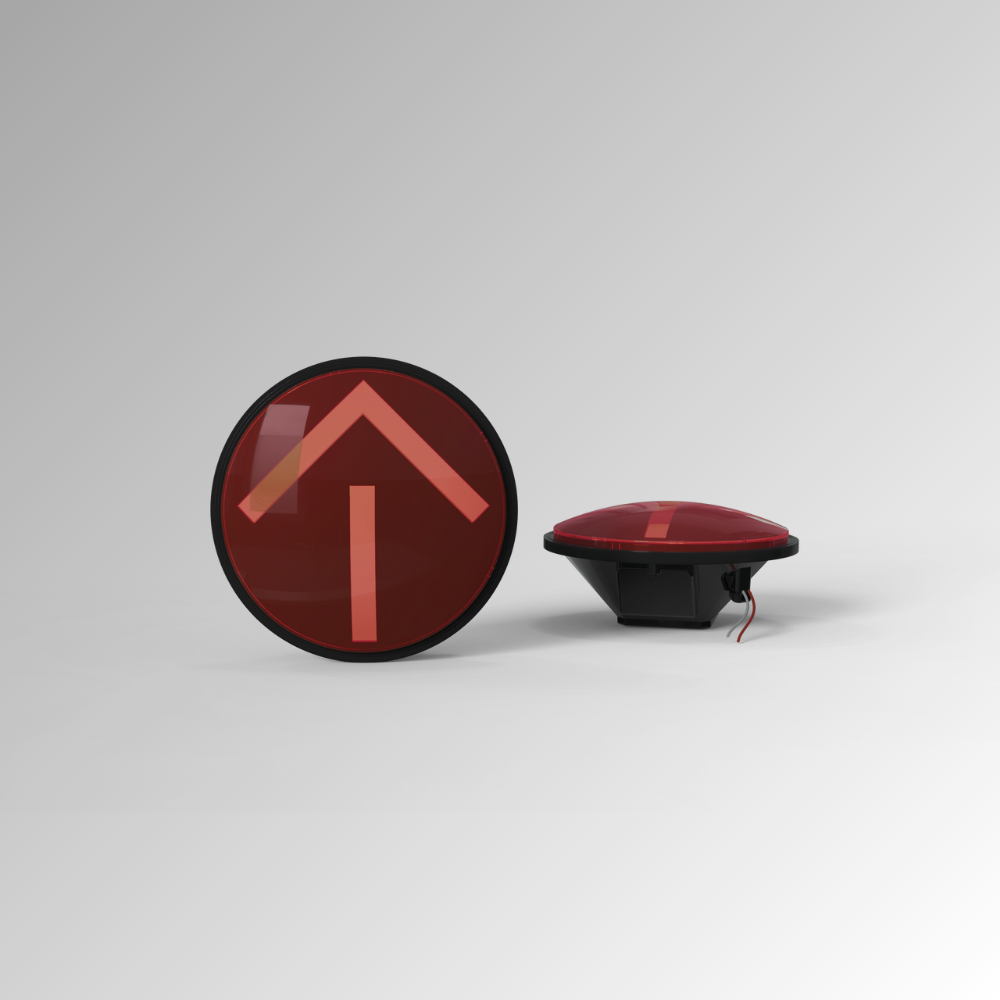

Frontier Arrow 12″ 80-135Vac ITE Long Life LED Traffic Light Module
The LEOTEK Frontier Arrow 12″ 80-135Vac ITE Long Life LED Traffic Light Module is a high-performance LED signal solution engineered for modern roadway and intersection control systems. Designed to meet ITE traffic signal standards, this module delivers precise arrow indications with excellent luminance uniformity, wide viewing angles, and dependable long-term operation.
Operating on 80-135Vac, the Frontier Arrow module is fully compatible with standard North American traffic signal cabinets and housings, making it ideal for both new installations and retrofit projects. Its advanced LED optical system ensures consistent signal visibility while significantly reducing energy consumption and maintenance compared to traditional incandescent solutions.
The Long Life designation indicates an extended 15-year warranty (compared to the standard 5-year warranty), providing added confidence for municipalities and transportation agencies planning long-term infrastructure investments.
Features
- 12″ LED arrow traffic-signal module
- 80-135Vac operation
- Red, yellow, and green arrow indications
- Uniform LED optics with wide viewing performance
- 15-year limited warranty
- For retrofit and new installations
Frontier Long Life Arrow in Real-World Traffic Applications
PDF-Verified Model & Performance Data
Source: Long Life LED Traffic Signal Modules Specification Sheet, 7-9-25, page 2
| Color | Tinted Lens Model | Clear Lens Model | Typical Power | Dominant Wavelength | Minimum Maintained Intensity |
|---|---|---|---|---|---|
| Red | 432-1314-001XOD15 | 432-1374-001XOD15 | 6.9W | 626 nm | 56.8 cd |
| Yellow | 431-3334-901XOD15 | 431-3374-901XOD15 | 11.1W | 589 nm | 141.6 cd |
| Green | 432-2324-001XOD15 | 432-2374-001XOD15 | 7.6W | 500 nm | 73.9 cd |
Electrical & Compliance Data
| Input voltage | 80–135Vac RMS; 120Vac nominal |
|---|---|
| Operating temperature | -40°C to +74°C |
| Switching time | Turn-on and turn-off below 75 ms |
| Power quality | Power factor above 0.9; total harmonic distortion below 20% |
| Failed-state impedance | Above 250 kΩ within 300 ms |
| Compliance | ITE VTCSH LED Vehicle Arrow Traffic Signal Supplement (2007); Intertek / ETL |
| Safety standards | CSA C22.2 No. 250.0-21; CSA C22.2 No. 250.13-22; UL 1598:2021 |
| Warranty | 15-year full performance warranty |
Technical FAQ
How do I identify the 15-year Arrow models?
The Long Life arrow codes in the model table end in XOD15. Select the complete code for the required red, yellow or green indication and tinted or clear lens. Confirm current warranty terms for the supplied part.
Can I substitute the standard arrow for a Long Life order?
The standard and Long Life listings have different model and warranty specifications. Confirm the documented 12-inch arrow, 80–135Vac input, terminal style and approved ordering code before any substitution.
Which specification should I use for an arrow order?
Use the 431/432 Arrow portion of the current Long Life specification together with the model table on this page. A circular Ball drawing describes a different indication.
