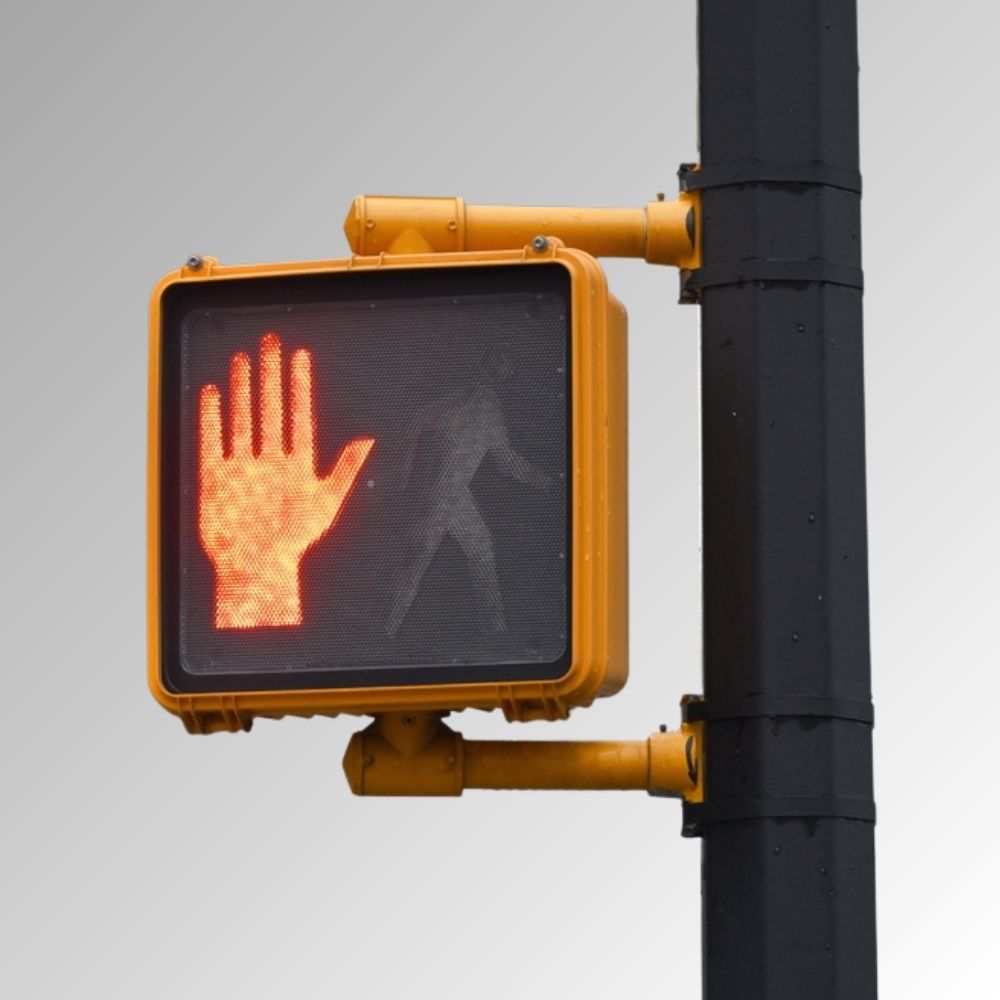

Frontier Pedestrian Signal 12″x12″ 80-135Vac ITE Hand / Person Overlay
The LEOTEK Frontier Pedestrian Signal 12″ × 12″ 80-135Vac ITE Hand / Person Overlay LED Traffic Light Module is engineered to provide clear, reliable pedestrian guidance at signalized intersections. Featuring a Hand / Person Overlay indication within a compact square format, this module delivers intuitive visual messaging that enhances pedestrian safety and compliance.
Designed to meet ITE pedestrian signal standards, the Frontier 12″ × 12″ pedestrian module utilizes advanced LED technology and precision optics to ensure excellent brightness, uniformity, and wide viewing angles. The overlay configuration allows both the Upraised Hand and Walking Person symbols to be displayed within a single lens area, optimizing space while maintaining high visibility.
Operating on 80-135Vac input voltage, this module is fully compatible with standard North American pedestrian signal systems and allows for straightforward retrofit into existing signal housings. Its durable construction includes a hard-coated, UV-stabilized polycarbonate lens and a fully sealed design to protect against moisture, dust, and harsh environmental conditions. Long-life LEDs and efficient thermal management reduce energy consumption and minimize maintenance over the product’s service life.
Features
- 12″ / 12″ LED pedestrian signal module
- Clear hand and person indications
- 80-135Vac operation
- High-contrast display with uniform visibility
- For compatible pedestrian-signal housings
- Durable weather-resistant construction

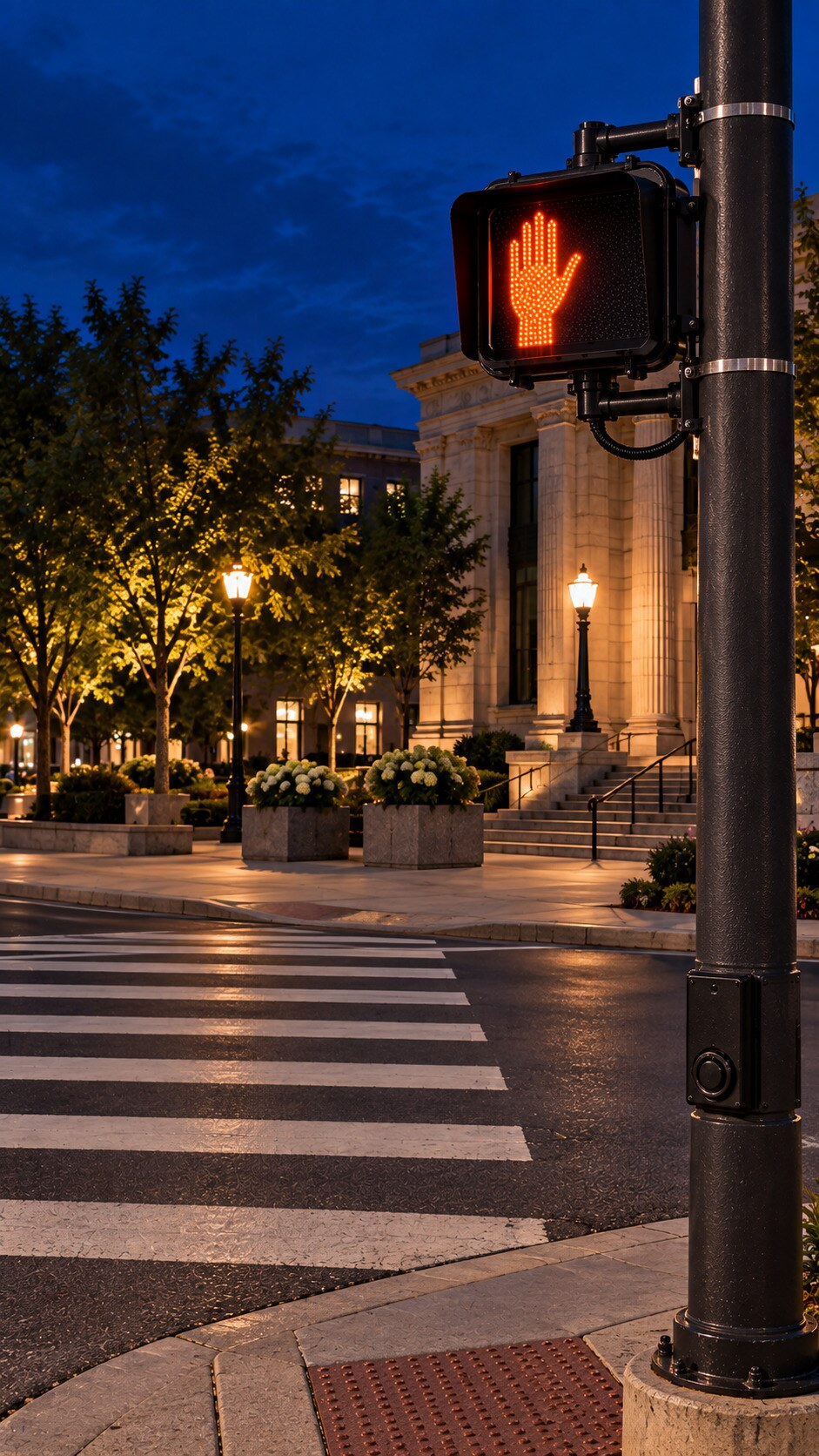

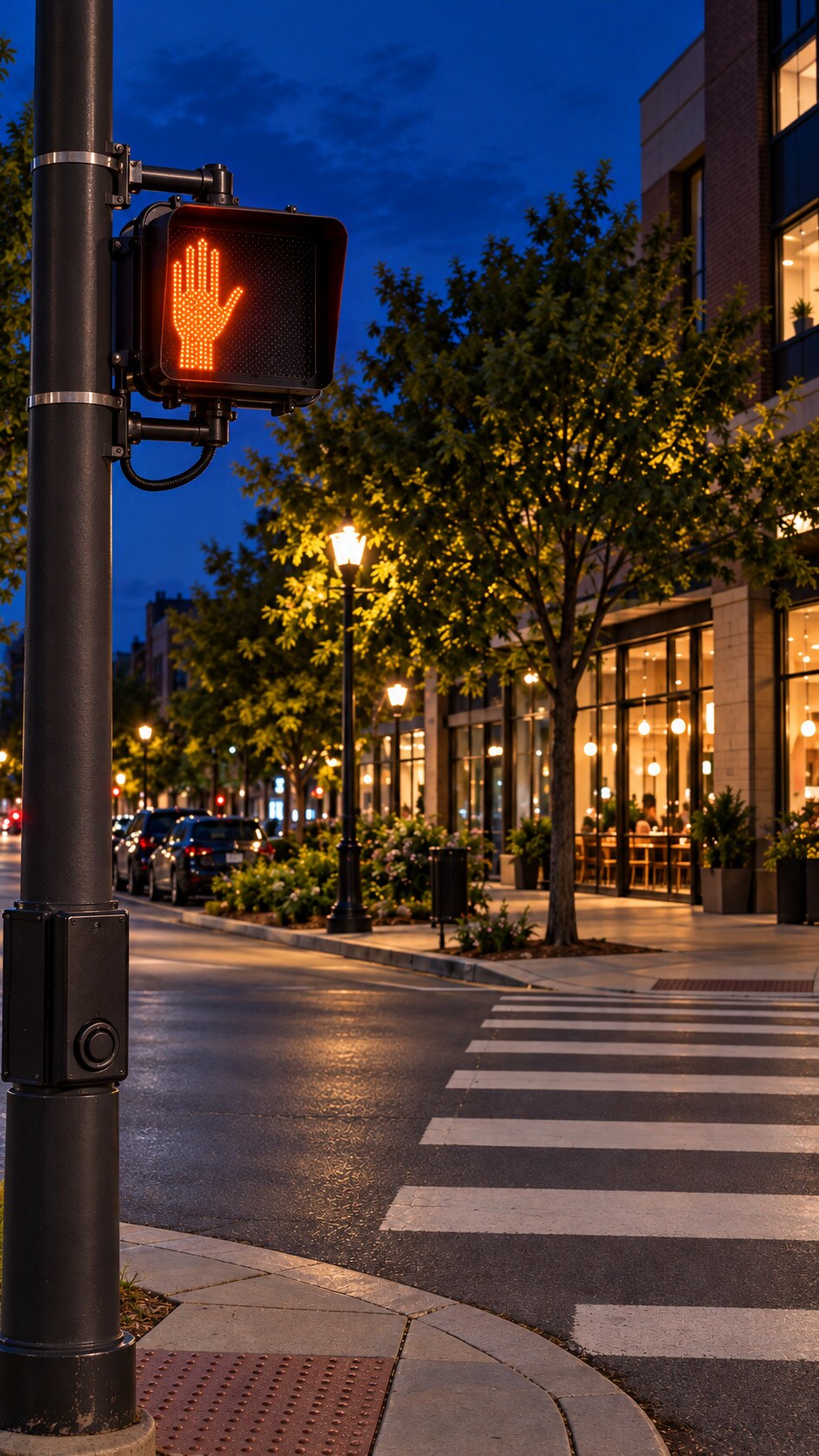

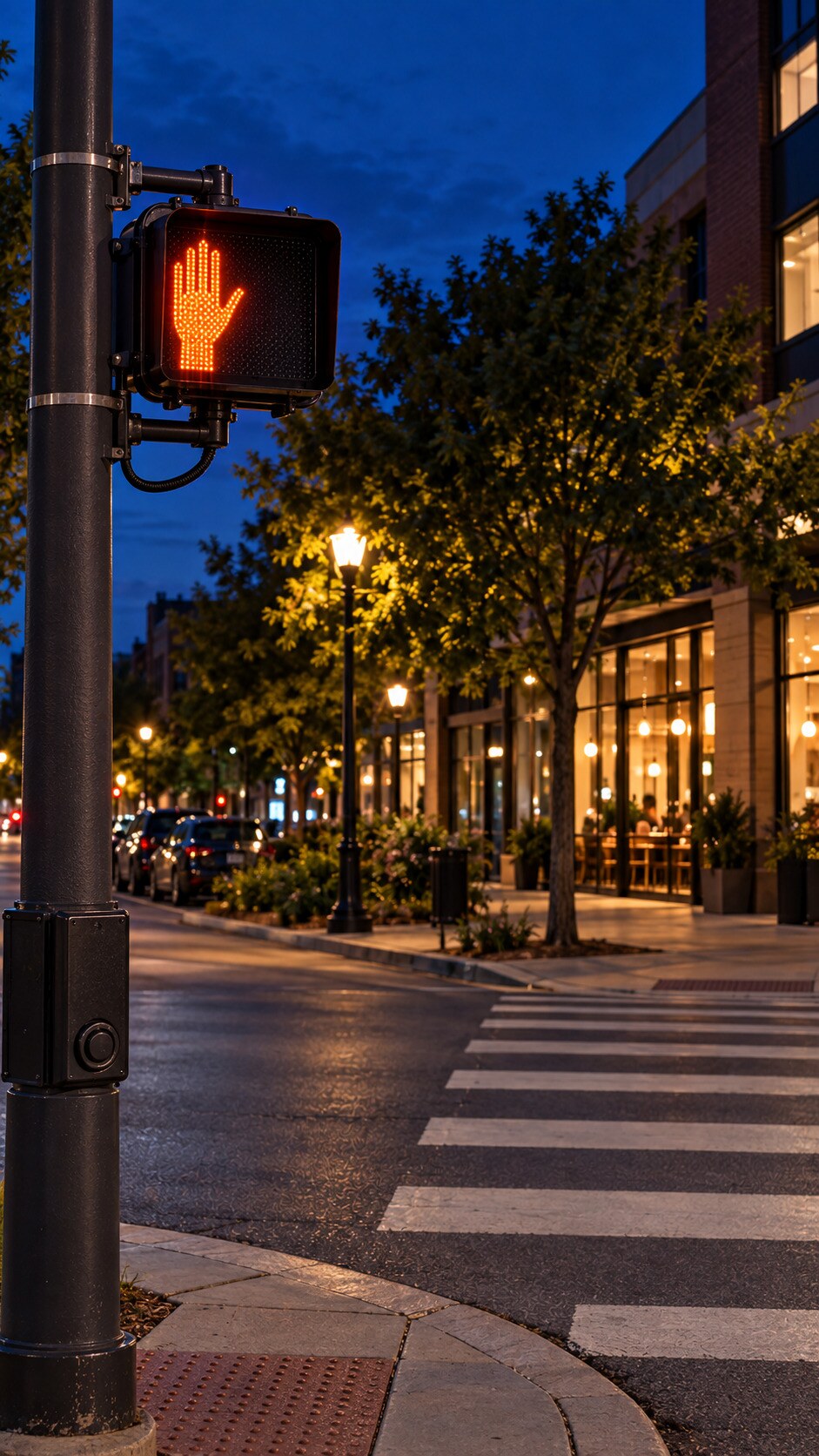

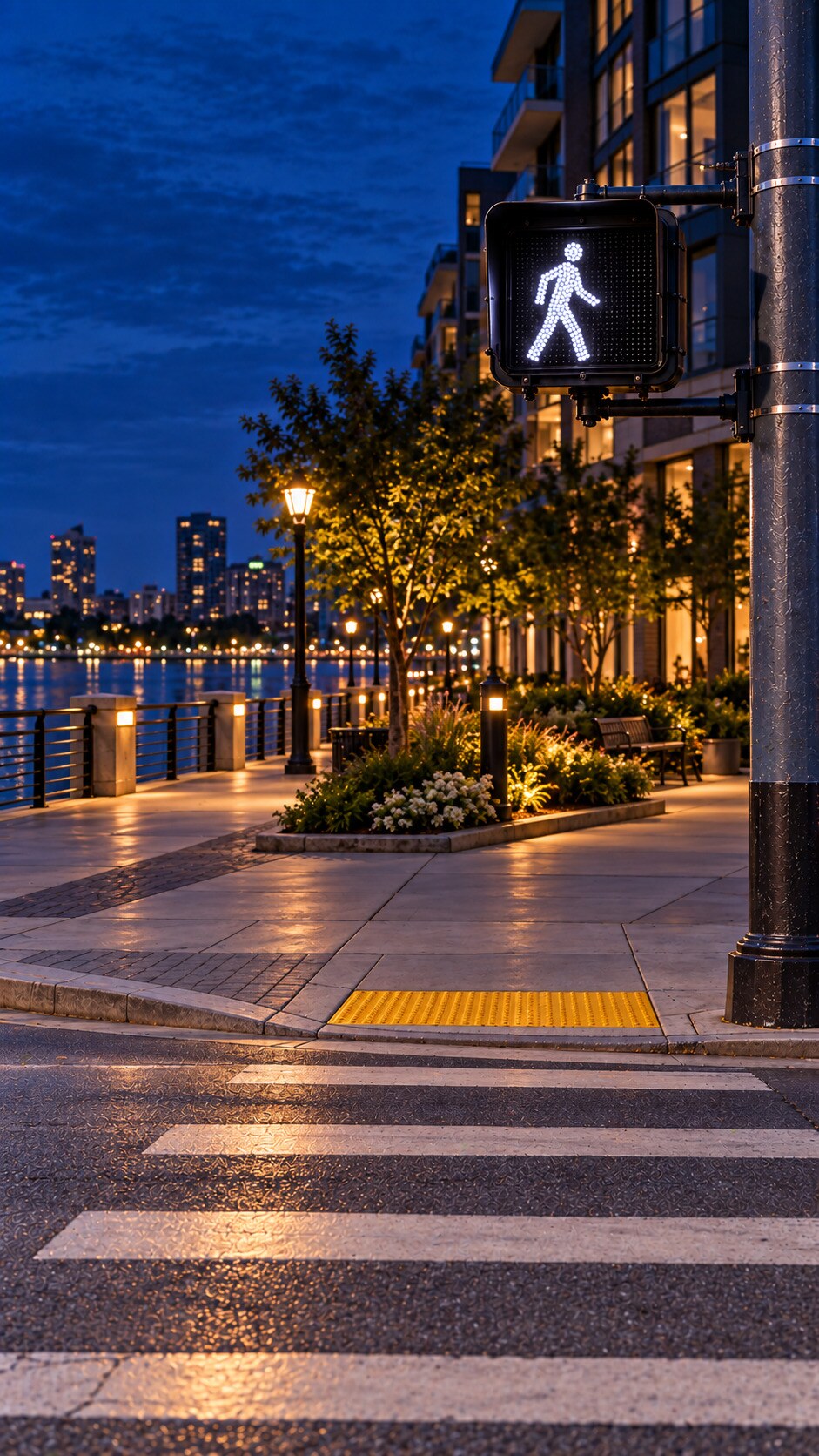

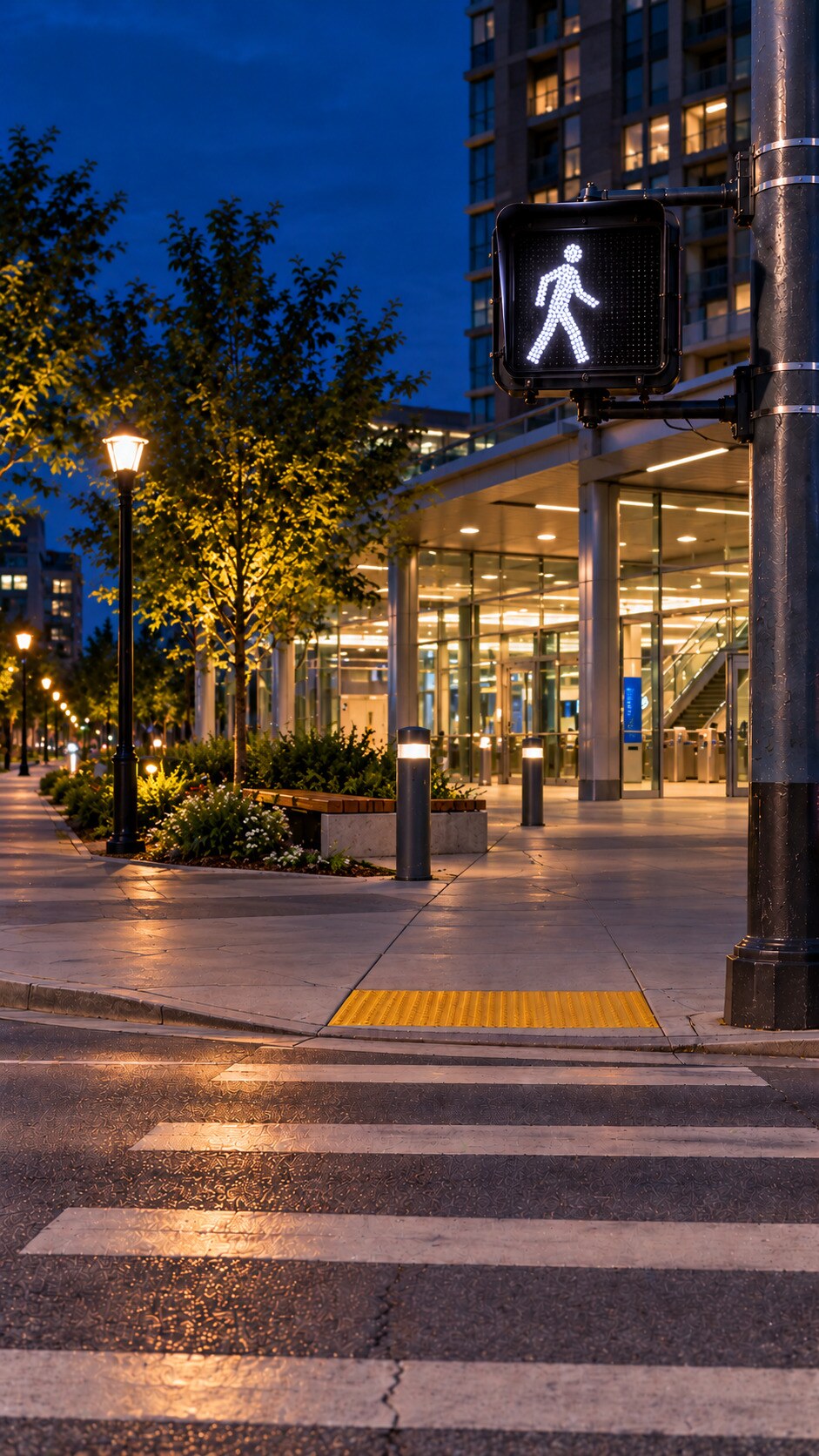

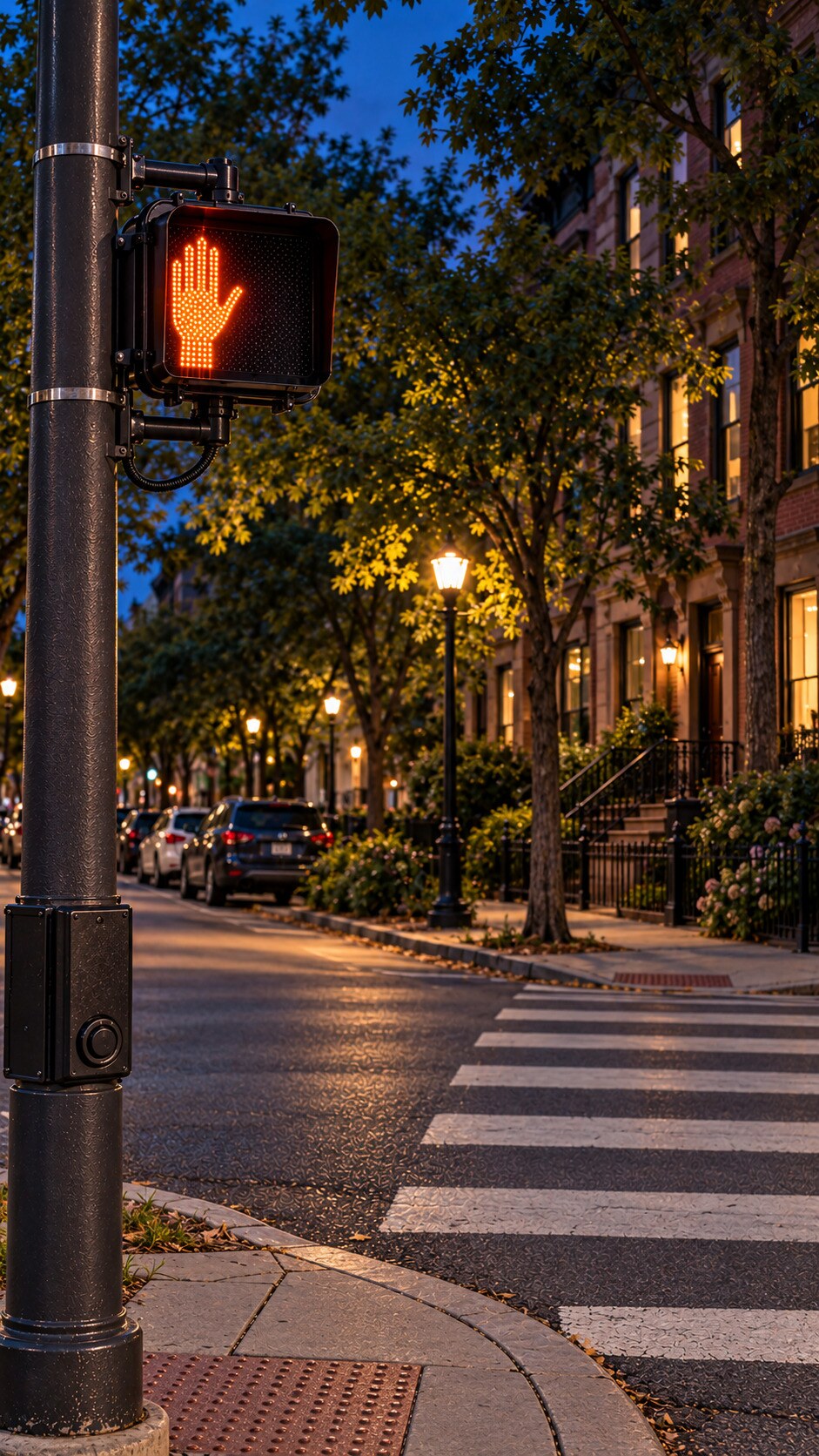

Overlay Pedestrian Signals in the Field
PDF-Verified Model & Performance Data
Source: LEOTEK Frontier WIDOT 12-inch PED Traffic Signal Module Data Sheet, 7-23-25
| Model | Indications | Colors | Typical Power | Minimum Luminance |
|---|---|---|---|---|
| 430-6772-001XWI | Hand / Person | Orange / White | 6.8W / 6.8W | 1,400 / 2,200 cd/m² |
Electrical & Compliance Data
| Input voltage | 80–135Vac RMS, 60 ± 3 Hz |
|---|---|
| Compliance | ITE PTCSI Part 2 dated August 4, 2010; WIDOT requirements; Intertek / ETL |
| Safety standards | CSA C22.2 No. 250.13:22; UL 8750, 2nd Edition |
| Transient protection | Up to 6 kV ring wave |
| Application | WIDOT 12 × 12-inch Hand/Person overlay pedestrian module |
Technical FAQ
How does this 12 × 12 overlay differ from the 16 × 18 DIL?
This 430 listing places Hand and Walking Person indications in one 12 × 12-inch display area. The LEOTEK DIL uses a 16 × 18-inch side-by-side arrangement. Match the specified housing, display layout, and complete model.
Are countdown digits included in this overlay module?
The listed indication is Hand/Person overlay. If a countdown is required, use a documented countdown configuration and confirm the assembly and controller interface.
What details should I supply for a retrofit review?
Provide the existing full model number, identification-label photos, housing opening and mounting details, terminals, supply voltage, and project specification. A shared 80–135Vac range is not enough to establish a direct replacement.
Specifications
Family
Series
Certification
Indication
Lens Size
Color of Indication
Voltage
Warranty
Terminals
Resources
Related Products

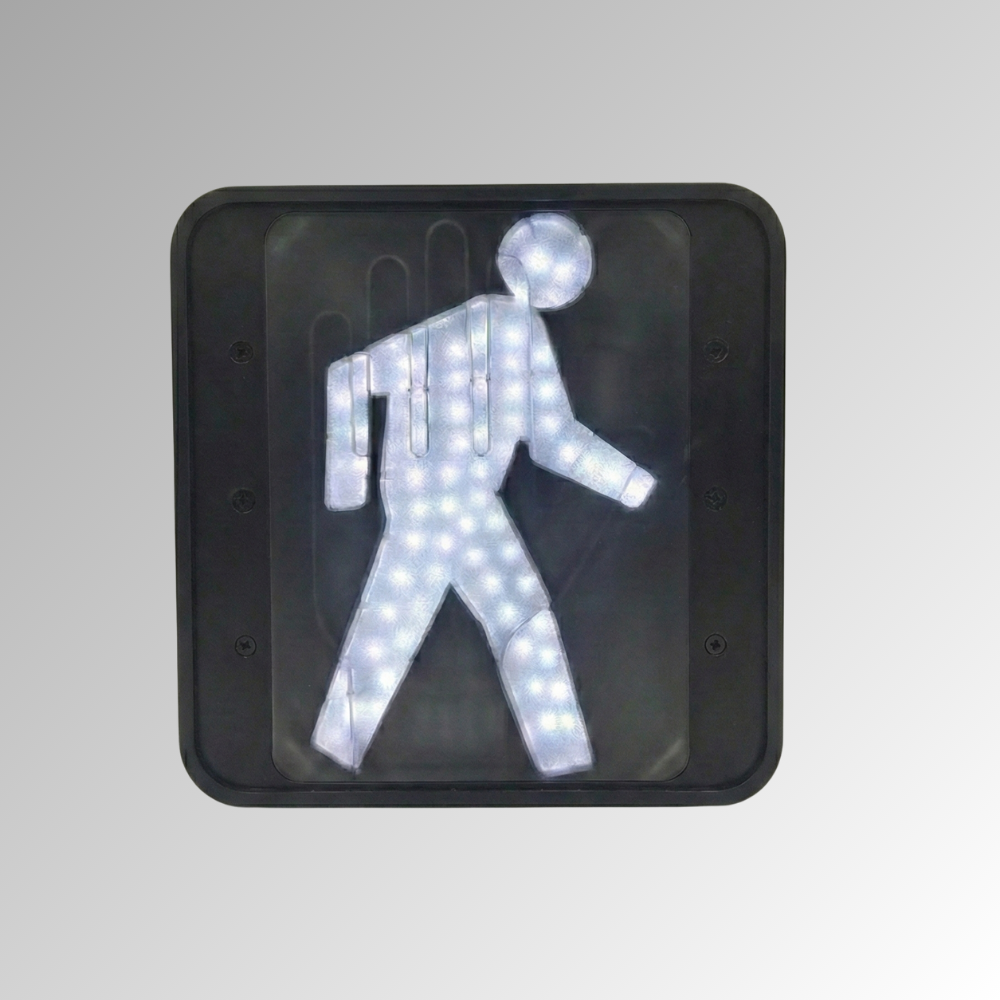

LEOTEK HM Series 12″x 12″ Pedestrian Signal Module, Hand & Person Overlap, 80-135Vac, Canada, Square
