LEOTEK HM Series 12″ Pedestrian Signal Module, Hand & Person Overlap, 80-135Vac, Canada, Round
The LEOTEK HM Series 12″ Pedestrian Signal Module is a CSA-certified LED pedestrian signal designed for Canadian roadway and intersection applications. As part of the LEOTEK Frontier family, the HM Series provides a clear and reliable Hand & Person Overlap indication, enhancing pedestrian safety and traffic flow at signalized crossings.
Featuring a 12″ round format, this module operates on 120Vac (80–135Vac) and is fully compatible with standard pedestrian signal housings used throughout Canada. The combination of Lunar White and Portland Orange LED symbols ensures high contrast, excellent visibility, and consistent recognition under various lighting and weather conditions.
Built with advanced LED optics and robust thermal management, the HM Series delivers uniform illumination, wide viewing angles, and stable long-term performance. Its durable construction supports dependable outdoor operation while reducing maintenance requirements and overall lifecycle costs.
Features
- 12″ LED pedestrian signal module

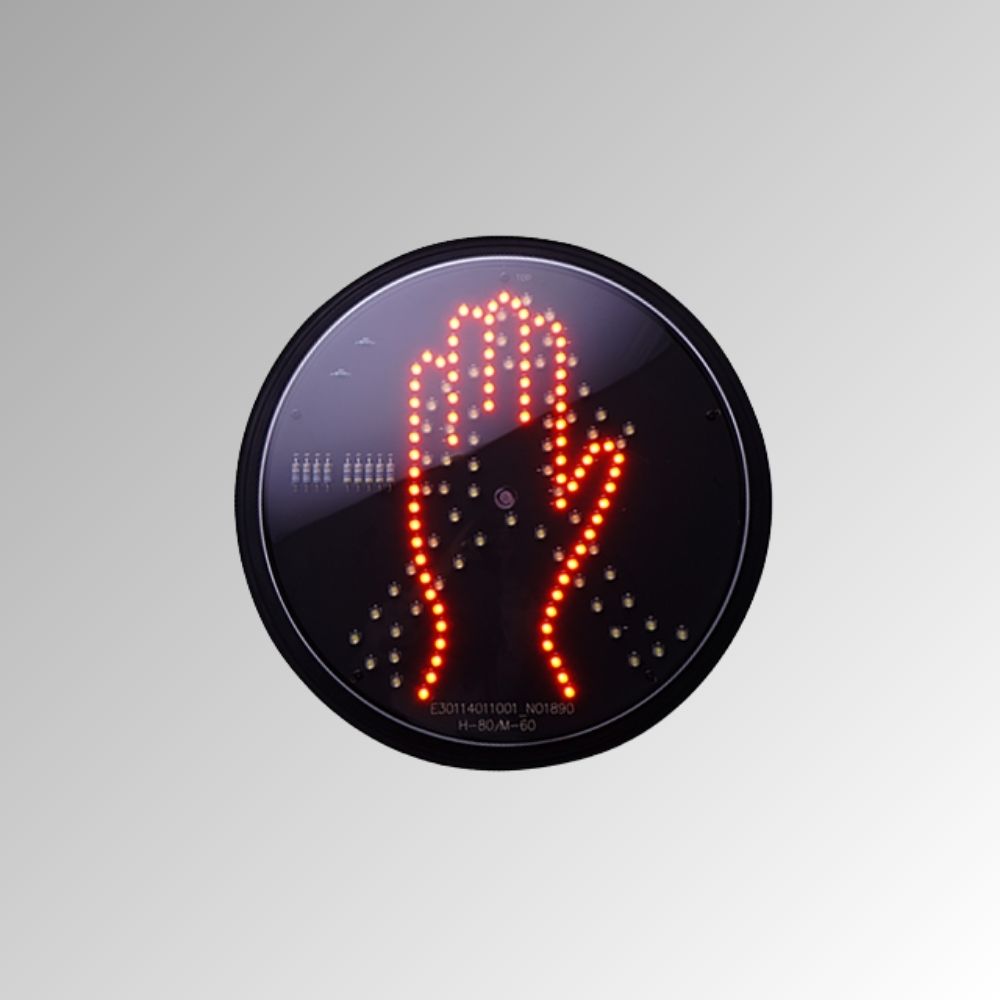

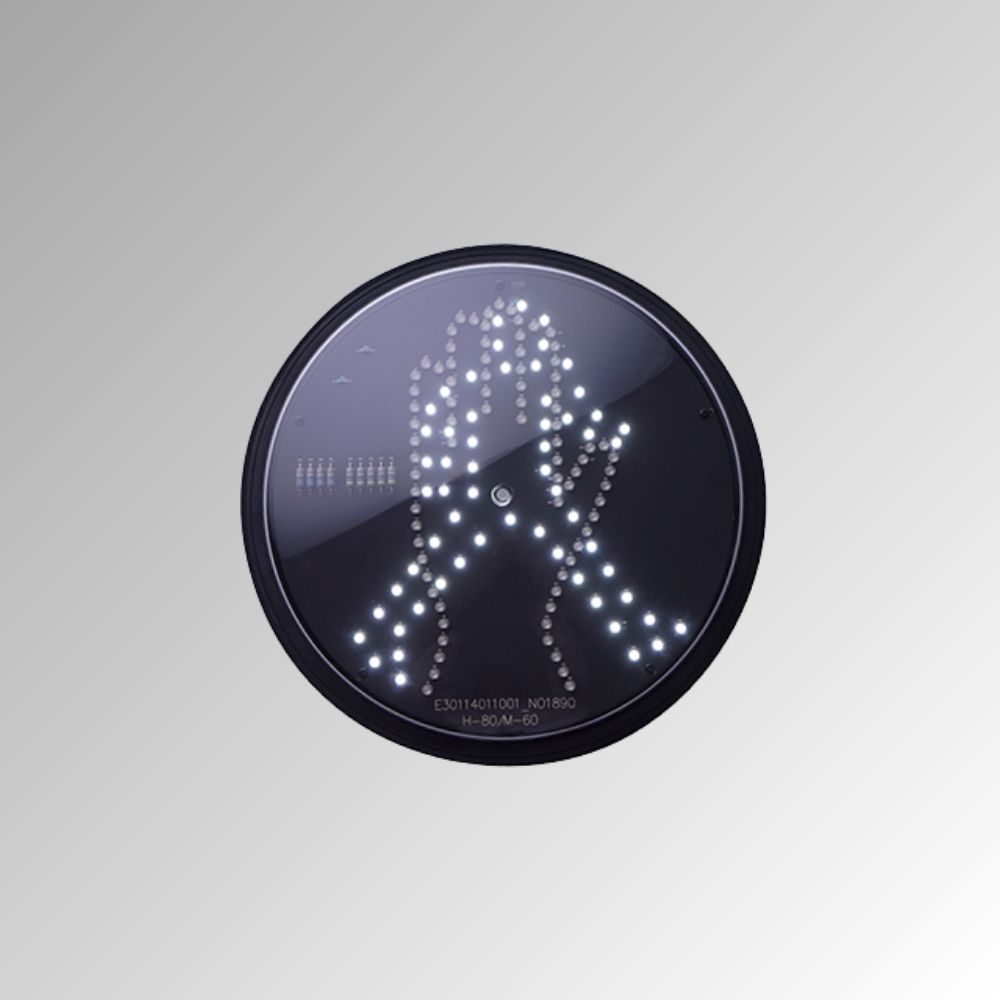

- Clear hand and person indications
- 80-135Vac operation
- High-contrast display with uniform visibility
- For compatible pedestrian-signal housings
- Durable weather-resistant construction

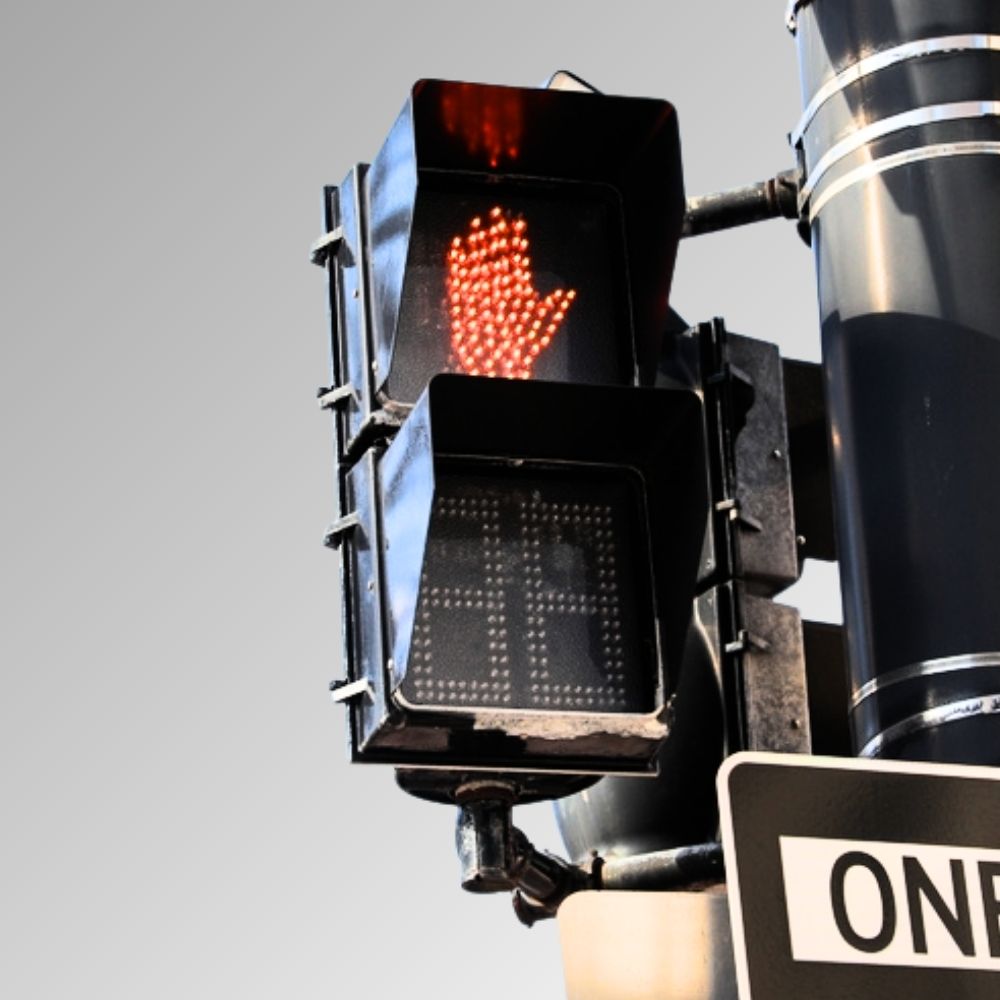

Hand & Person Signals in the Field
PDF-Verified Model & Performance Data
Source: CD/HM Series 12-inch Pedestrian Signal Module CSA Specification Sheet
| Model | Indications | Colors | Typical Power |
|---|---|---|---|
| TSL-PED-12-HM-CR1 | Hand / Man overlay | Orange / White | 6W / 6W |
Electrical & Compliance Data
| Input voltage | 80–135Vac |
|---|---|
| Operating temperature | -40°C to +74°C |
| Switching time | Below 75 ms |
| Turn-off threshold | Above 35Vac |
| Power quality | Power factor above 0.9; total harmonic distortion below 20% |
| Application | Canadian round 12-inch Hand/Man pedestrian signal module |
Technical FAQ
What should I verify before ordering this module?
Confirm the signal-face size, indication, input range, lens option, terminal configuration, and full model number against the project specification.
Can this module be used as a direct replacement?
Use it only when the housing, electrical input, indication, and connection method match the existing assembly. Verify controller compatibility and agency requirements.
Where can I confirm exact model and performance data?
Use the PDF-verified table on this page and the downloadable specification sheet for final part selection.
Specifications
Family
Series
Certification
Indication
Lens Size
Color of Indication
Voltage
Warranty
Terminals
Resources
Related Products
Side by side
Hand & Person Overlay
Countdown digits
Looking for more information? Connect with LEOTEK
Do you need a quote or more collaboration details? At LEOTEK we are ready to provide you with professional advice and close service, bringing you closer to the smart and sustainable future.
