Frontier Ball 8″ / 12″ 80-135Vac ITE LED Traffic Light Module
The Frontier 433 Ball series includes 8-inch and 12-inch circular LED signal modules with separate red, yellow, and green ordering codes and lens options. The current manufacturer data sheet provides model-specific electrical and photometric values and cites the ITE VTCSH Circular Supplement dated June 27, 2005.
The published operating range is 80–135Vac. For a replacement or new installation, verify the exact part number, signal-face size, lens finish, housing opening, connection method, and agency specification against the current product sheet and drawing. A matching voltage range alone does not establish cabinet or housing compatibility.
Use the documented model configuration and current warranty terms when preparing a project submittal. Contact Frontier with the existing part number and installation details if a fit or approval question remains.
Features
- 8″ / 12″ circular LED traffic-signal module
- 80-135Vac operation
- Red, yellow, and green ball indications
- Uniform LED optics with wide viewing performance
- Designed for compatible signal housings
- For retrofit and new installations

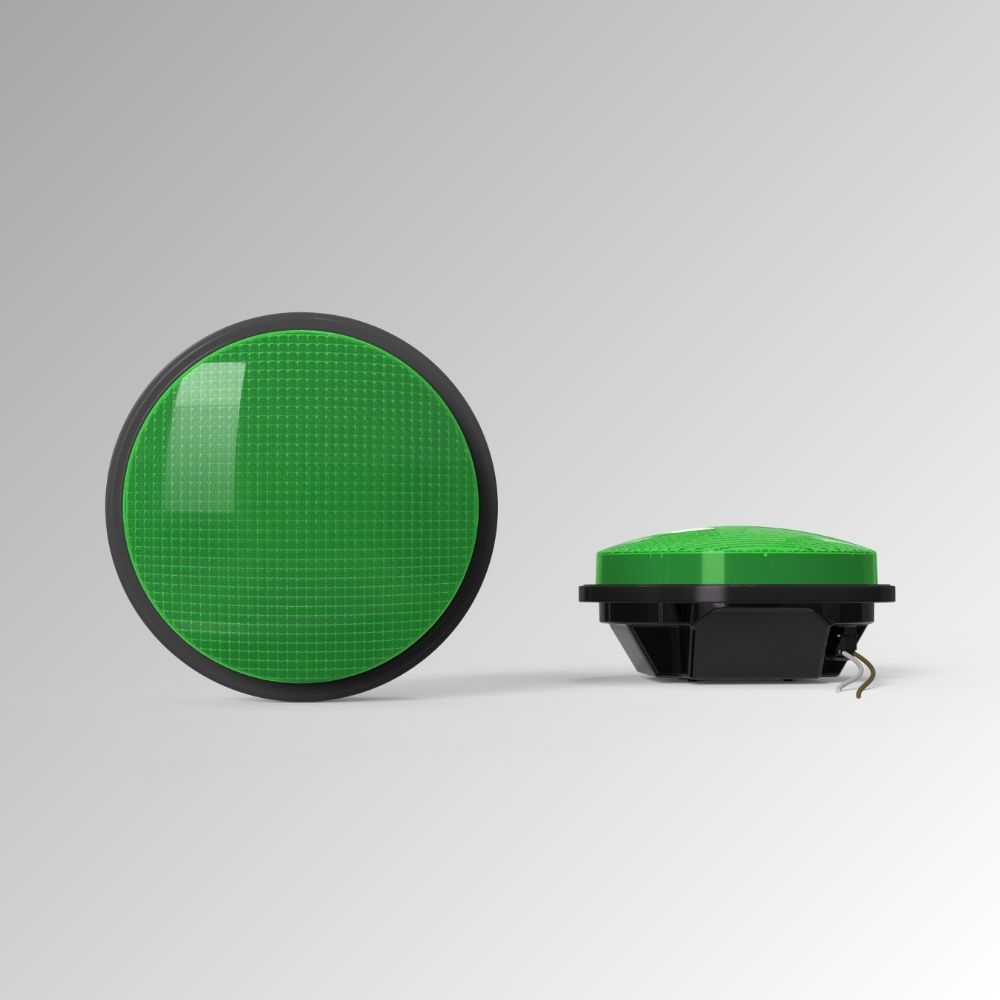

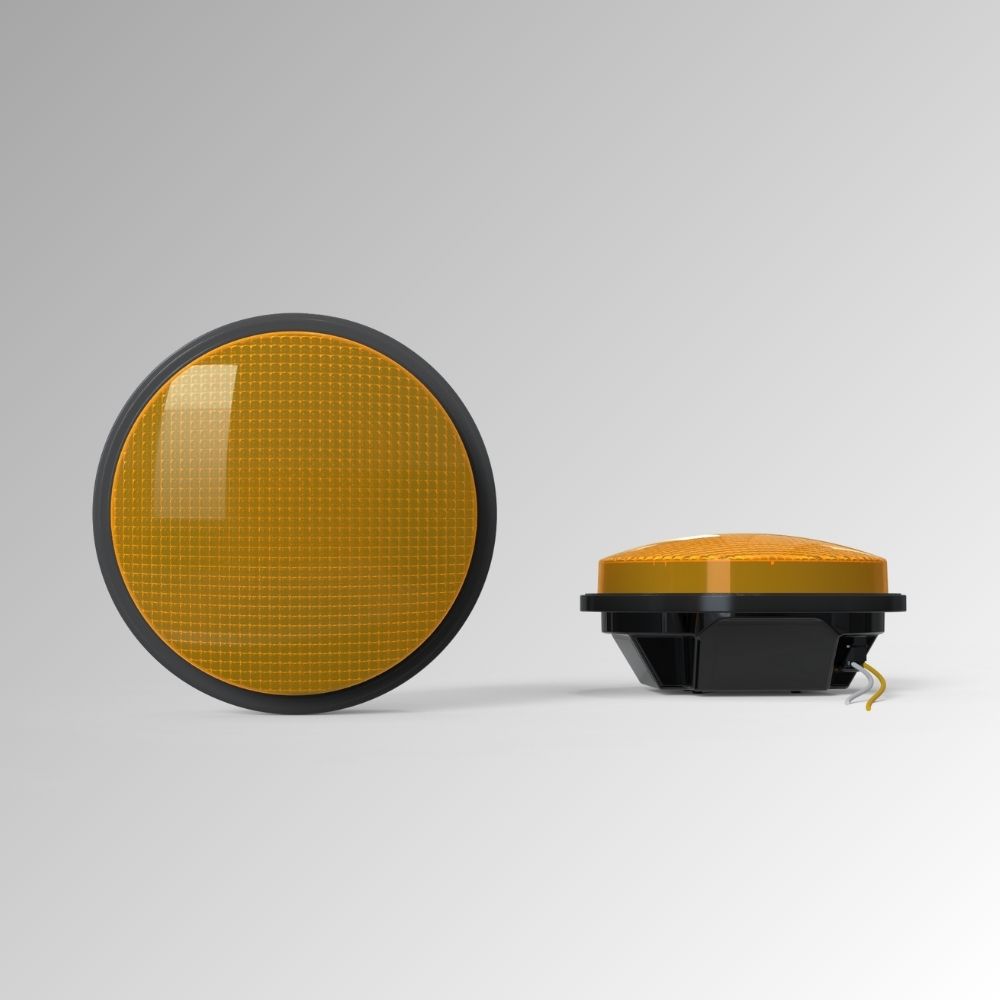

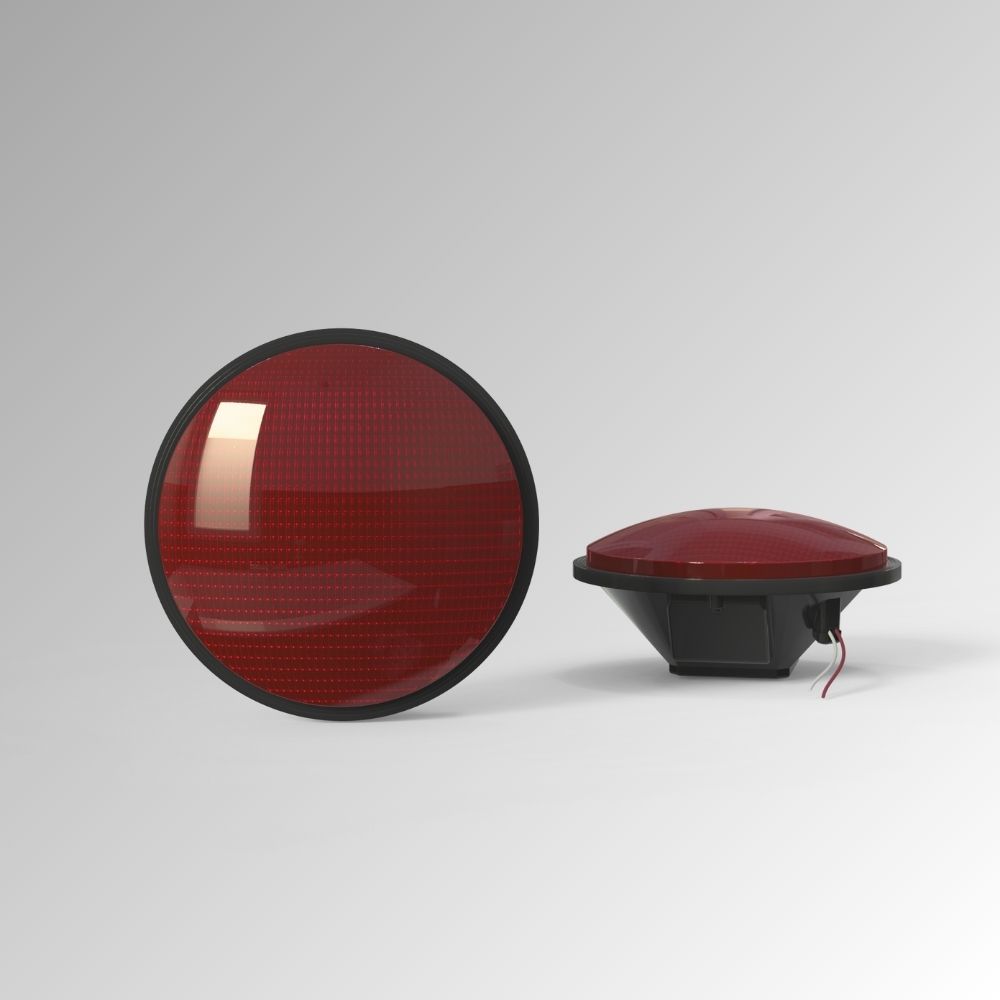

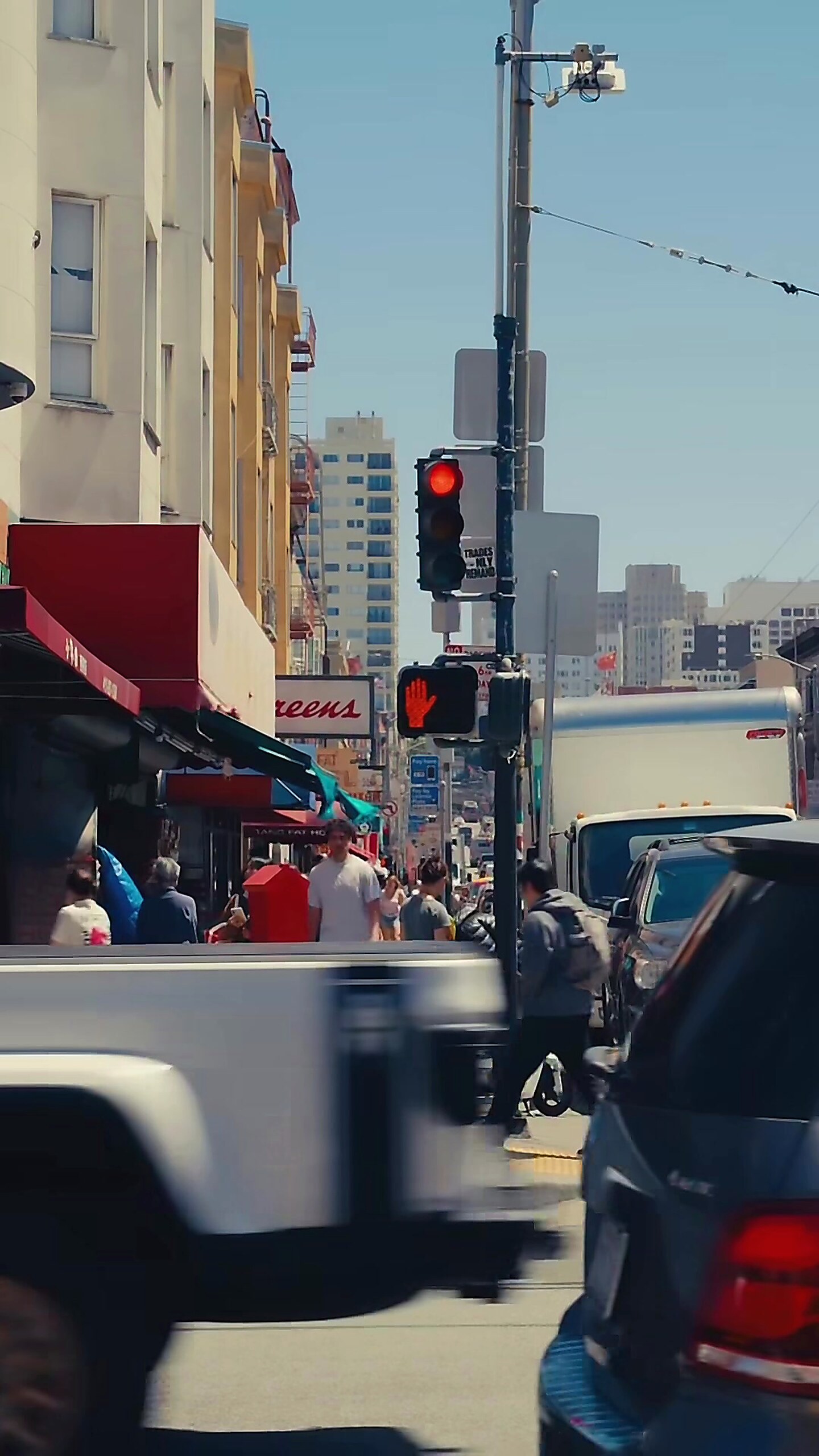

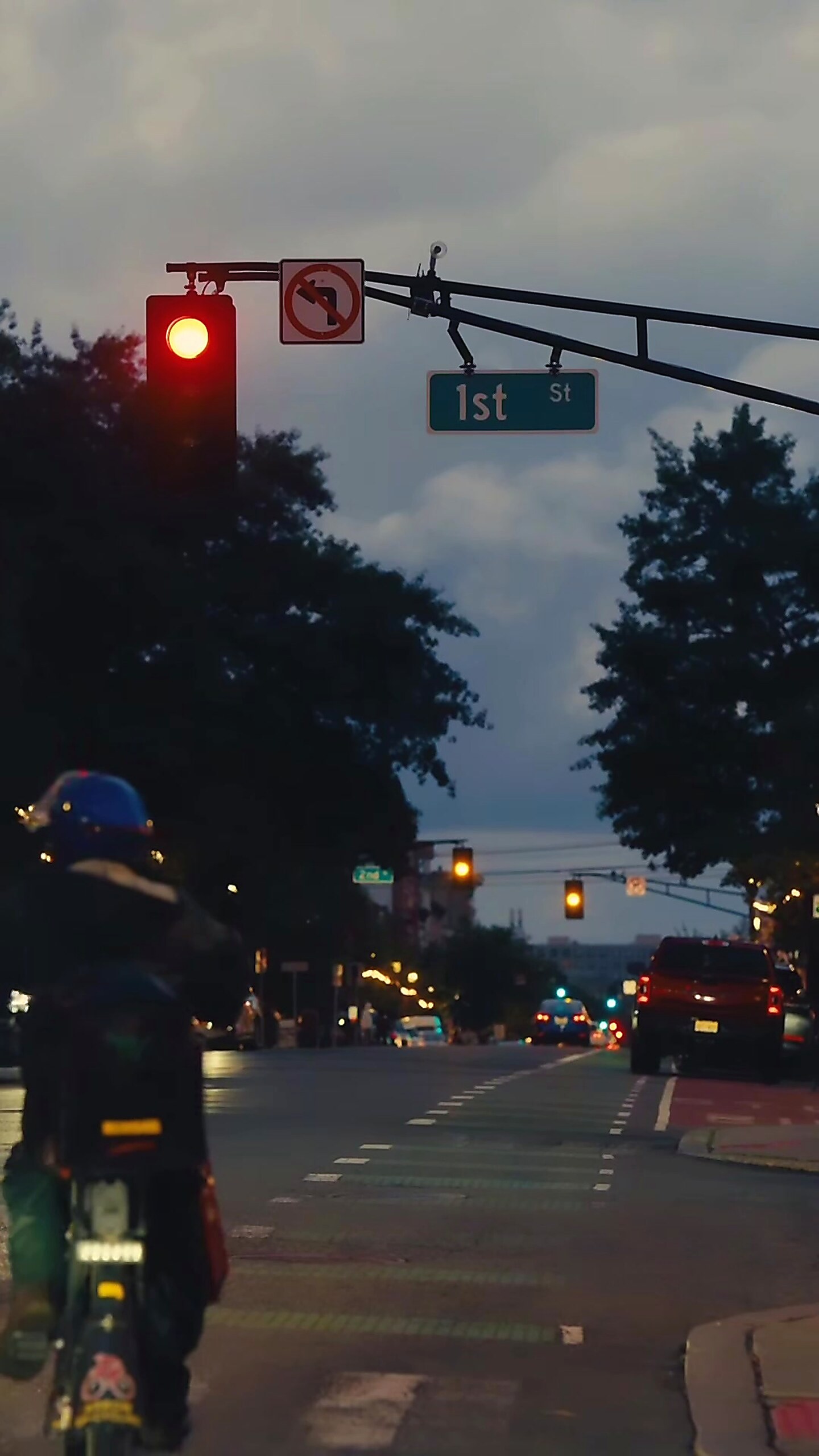

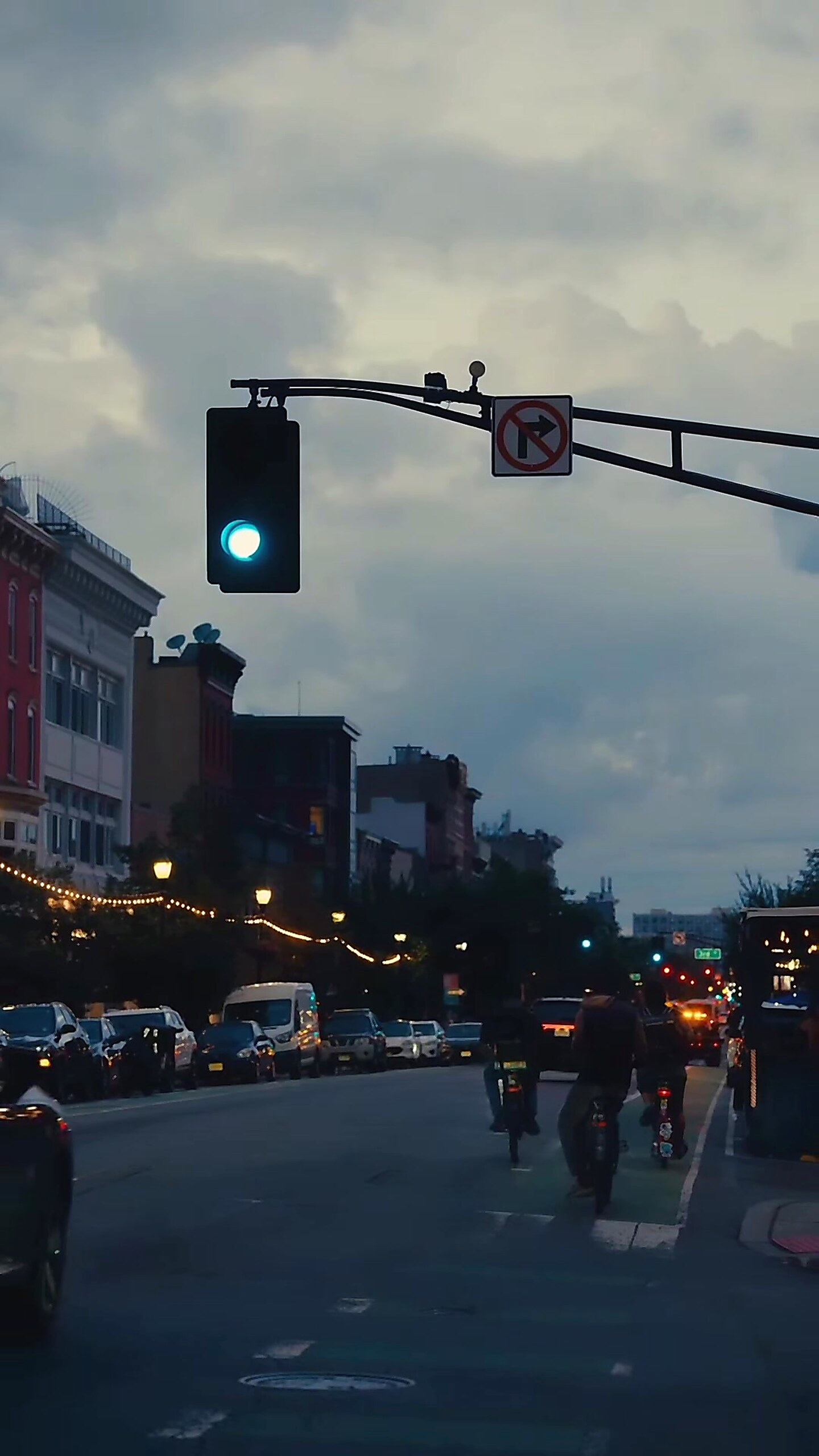

Live Images of the Products
PDF-Verified Model & Performance Data
Source: 8-inch and 12-inch LED Ball Signal Modules 433 Series Data Sheet, 5-26-25
| Size / Color | Tinted Lens Model | Clear Lens Model | Typical Power | Dominant Wavelength | Minimum Maintained Intensity |
|---|---|---|---|---|---|
| 8″ Red | 433-1110-003XL | 433-1170-003XL | 6.2W | 625 nm | 165 cd |
| 8″ Yellow | 433-3130-901XL | 433-3170-901XL | 6.2W | 590 nm | 410 cd |
| 8″ Green | 433-2120-001XL | 433-2170-001XL | 6.1W | 500 nm | 215 cd |
| 12″ Red | 433-1210-003XL | 433-1270-003XL | 6.9W | 625 nm | 365 cd |
| 12″ Yellow | 433-3230-901XL | 433-3270-901XL | 9.7W | 590 nm | 910 cd |
| 12″ Green | 433-2220-001XL | 433-2270-001XL | 6.9W | 500 nm | 475 cd |
Electrical & Compliance Data
| Input voltage | 80–135Vac RMS, 60 ± 3 Hz |
|---|---|
| Compliance | ITE VTCSH LED Circular Signal Supplement dated June 27, 2005; Intertek / ETL |
| Transient protection | Exceeds ITE and NEMA specifications; up to 6 kV ring wave |
| Safety standards | CSA C22.2 No. 250.0-08; CSA C22.2 No. 250.13-17; UL 1598, 3rd Edition |
| Construction | Anti-capillary wires; conformal-coated power supply; abrasion-resistant secondary lens treatment |
| Lens options | Separate tinted-lens and clear-lens part numbers |
Technical FAQ
How do I select an 8-inch or 12-inch 433 Ball module?
Match the installed signal-face diameter and project drawing. Then confirm the exact red, yellow, or green model, lens finish, and terminals in the current 433 specification; a shared input range does not make the sizes interchangeable.
Can I order a clear lens instead of a tinted lens?
The 433 range lists clear (untinted) and tinted variants with different ordering codes. Specify the complete part number and lens finish, not the color alone.
Is the standard 433 the same as the Long Life version?
No. The standard listing carries a 5-year warranty, while the Long Life listing uses separate XL15 model numbers and a 15-year warranty. Verify the selected part and current warranty document before ordering.
