Three Indications
Hand, walking person and countdown digits support a complete crossing sequence.
430

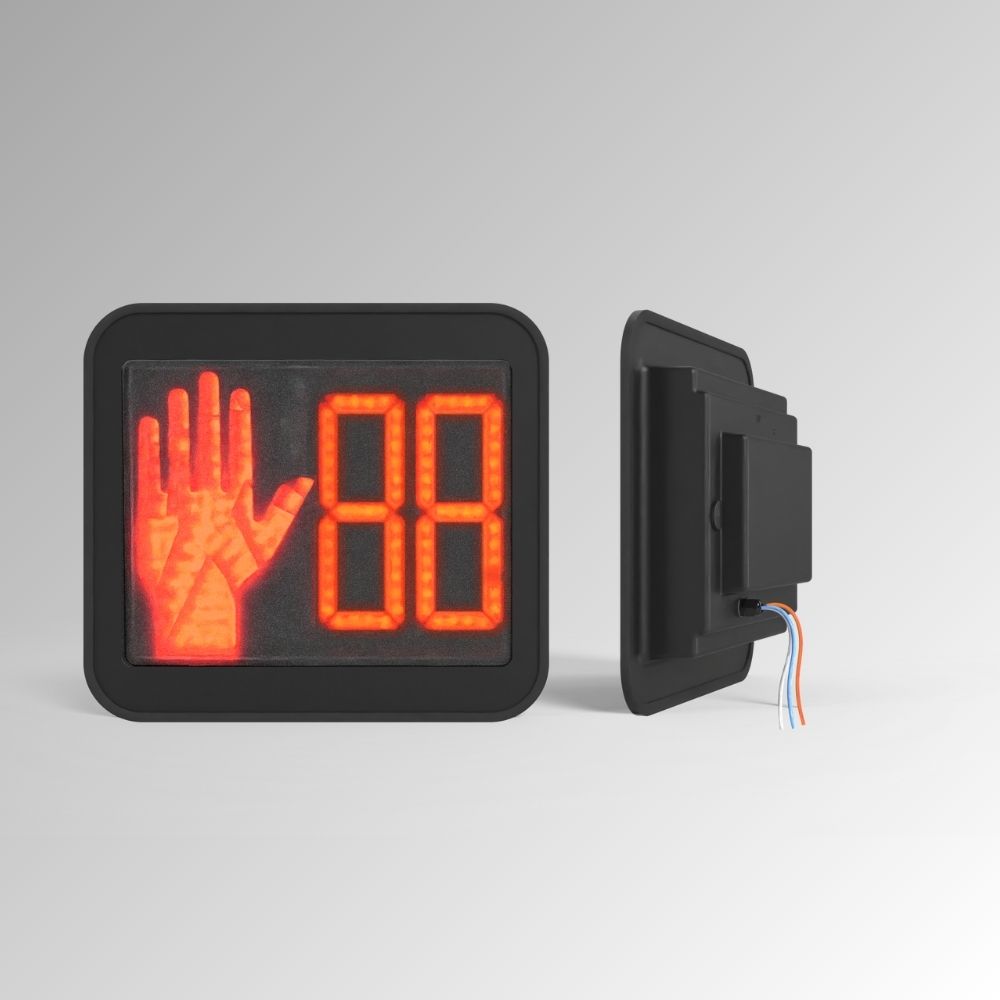

Frontier Pedestrian Signal 16″×18″ 80-135Vac ITE Hand / Person with Countdown
The LEOTEK Frontier Countdown Pedestrian Signal 16″ × 18″ 80-135Vac ITE Hand & Person LED Traffic Light Module is designed to deliver clear, intuitive pedestrian guidance at signalized intersections. Combining Upraised Hand, Walking Person, and Countdown Digits indications within a single large-format display, this module improves pedestrian comprehension, safety, and compliance in high-traffic urban environments.
Built to meet ITE pedestrian signal standards, the Frontier 16″ × 18″ pedestrian module utilizes advanced LED technology and precision optical design to provide exceptional brightness, uniformity, and wide viewing angles. The larger display format enhances visibility at wider crossings and complex intersections, ensuring pedestrians receive clear signals from greater distances.
The module operates on 80-135Vac input voltage, allowing easy integration into standard North American pedestrian signal systems. Its rugged construction features a hard-coated, UV-stabilized polycarbonate lens and a fully sealed housing to withstand harsh weather conditions, moisture, and dust. Optimized thermal management and long-life LEDs significantly reduce energy consumption and maintenance costs over the product lifecycle.
Features
- 16″ / 18″ LED pedestrian signal module
- Integrated countdown information
- 80-135Vac operation
- High-contrast display with uniform visibility
- For compatible pedestrian-signal housings
- Durable weather-resistant construction

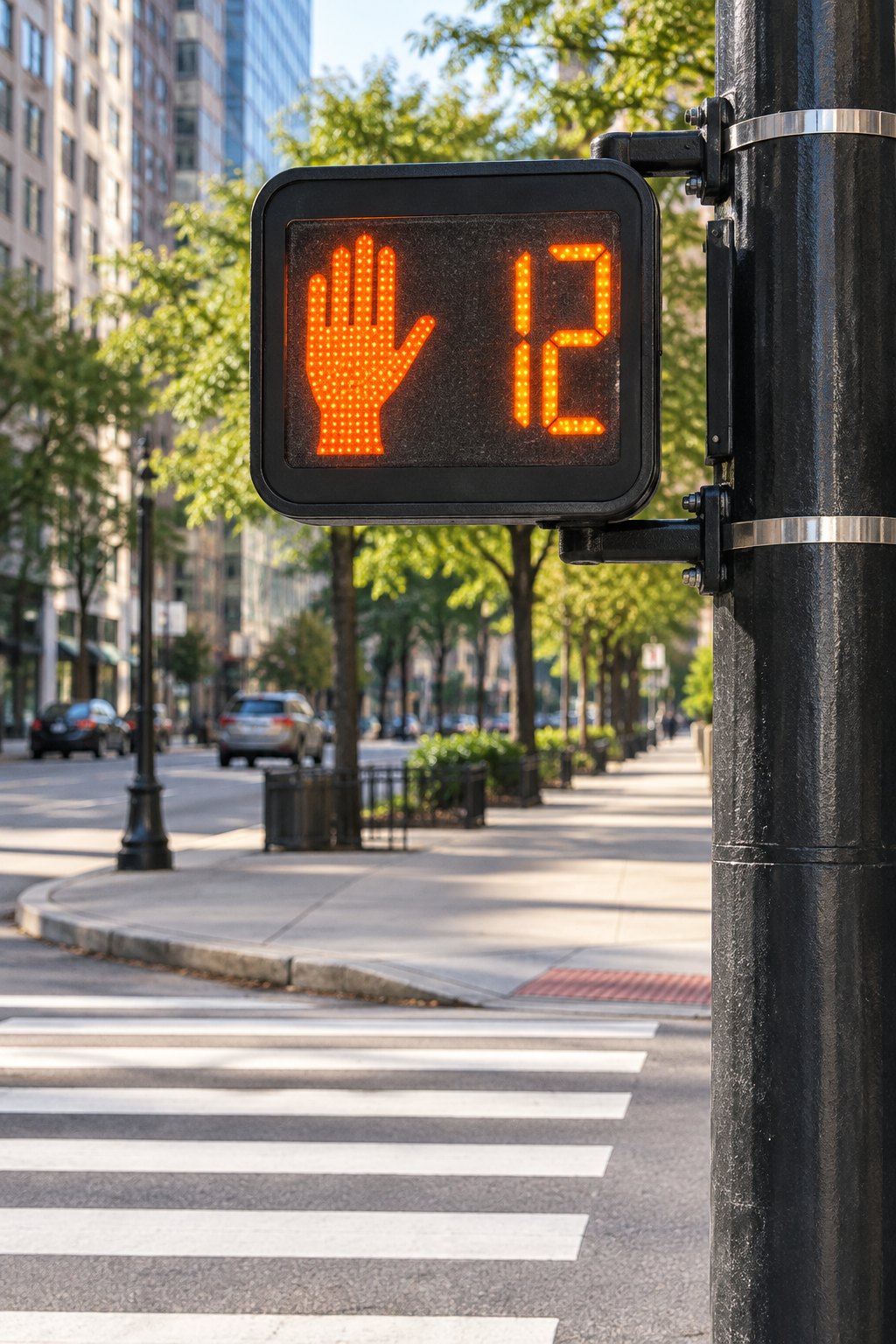

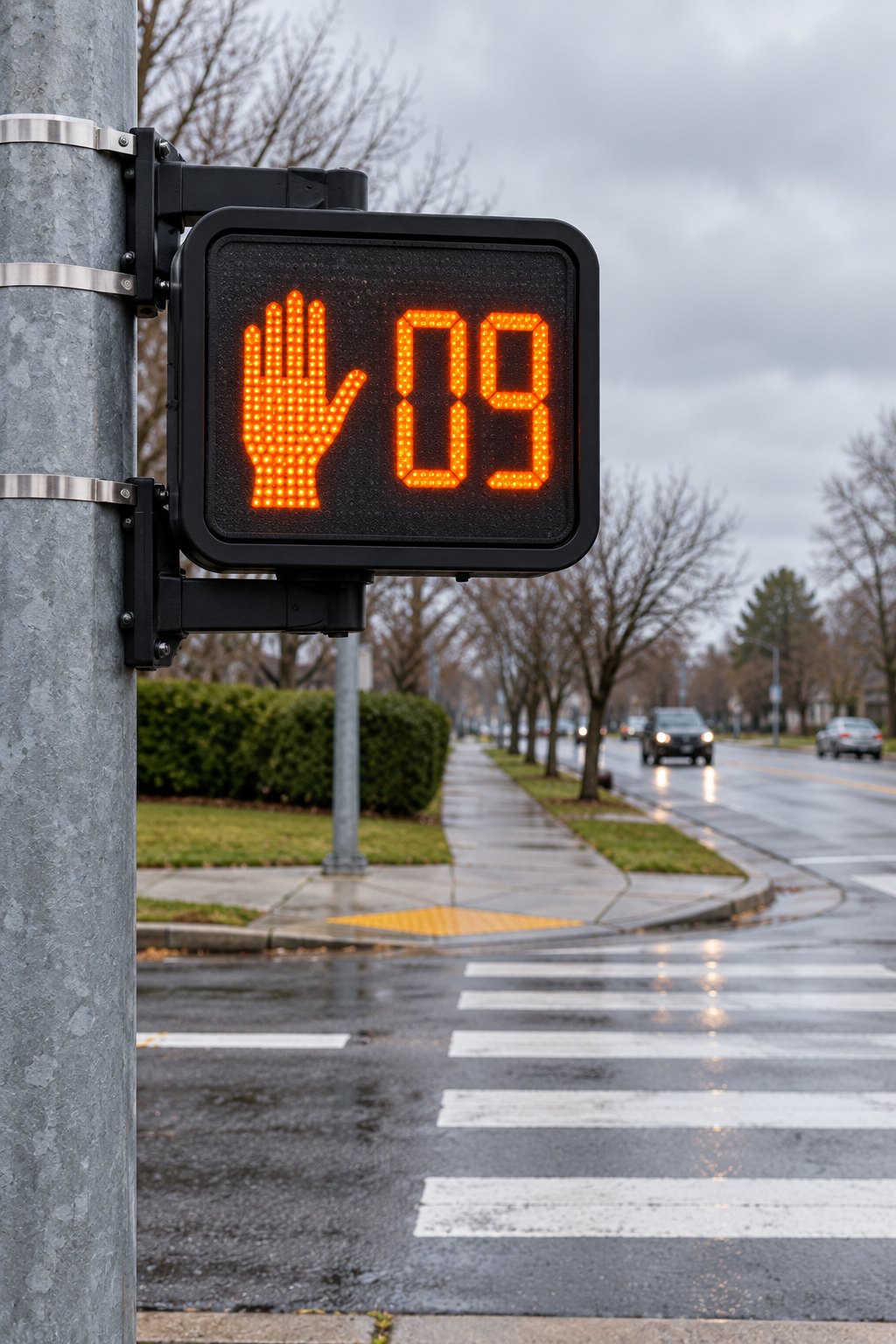

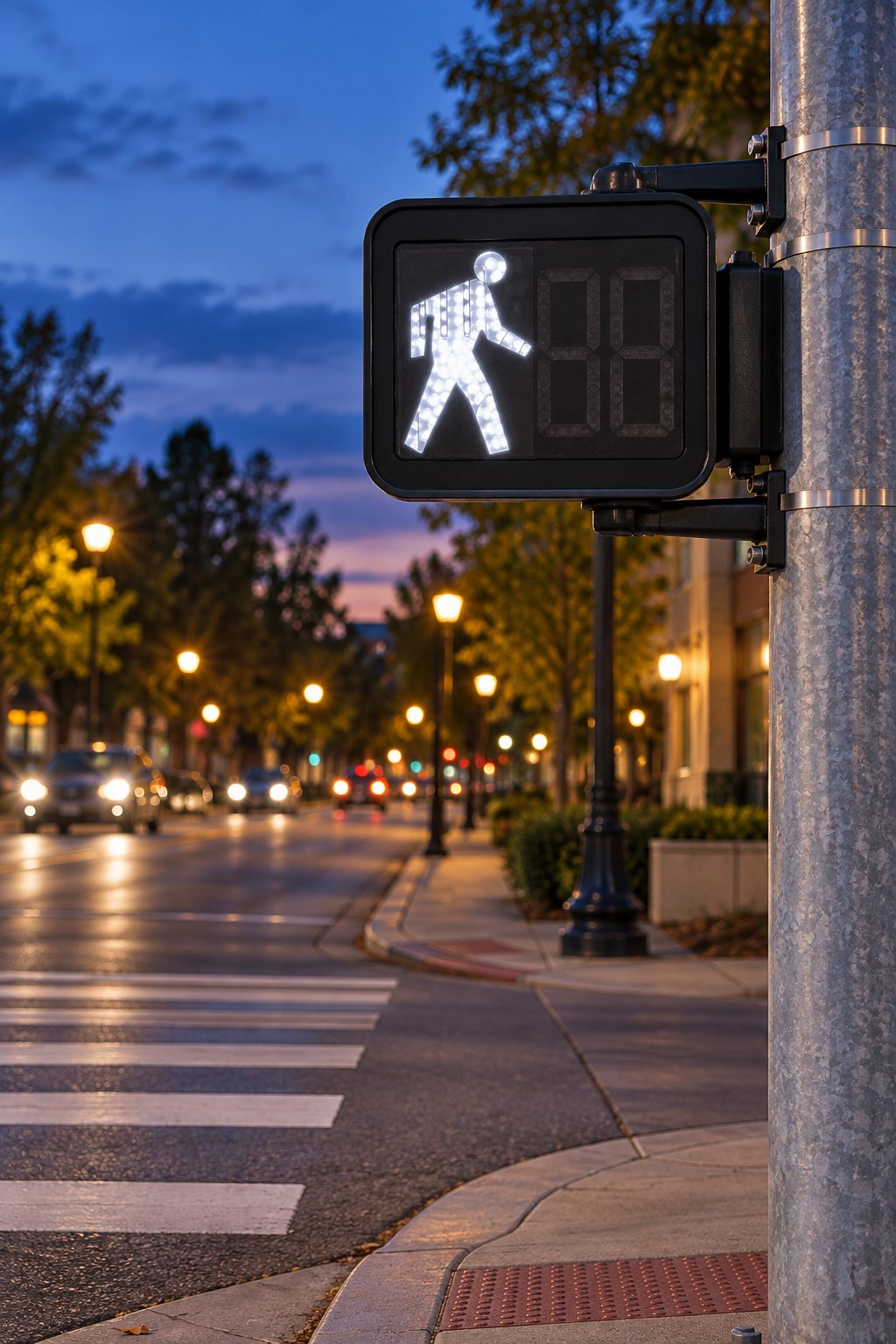

Integrated Pedestrian Signals at Urban Crossings
FRONTIER 430 SERIES
Three-part pedestrian guidance in one large display
A 16 × 18-inch module integrating upraised hand, walking-person and countdown indications for clear guidance at wide and high-traffic crossings.
Large 16 × 18 Display
Improves recognition across wider intersections and longer sight lines.
Two-Color Guidance
Lunar White and Portland Orange provide familiar pedestrian messaging.
80–135Vac Input
Designed for standard North American 120Vac pedestrian systems.
Verified Product Configuration
| Family | Frontier |
|---|---|
| Series | 430 |
| Indications | Hand, Person, Countdown |
| Lens size | 16 × 18 inches |
| Colors | Lunar White / Portland Orange |
| Voltage | 120Vac (80–135Vac) |
| Certification | ETL, CSA |
| Warranty | 5 years |
Technical note: Use this combination model when the project requires all three indications in a 16 × 18-inch housing. Verify terminal style and cabinet compatibility before ordering.
Technical FAQ
When should I choose this 16 × 18 configuration instead of DIL?
Choose this listed Frontier 430 configuration when the approved design requires Hand, Walking Person and countdown digits together. The LEOTEK DIL 16 × 18 listing is a side-by-side Hand/Person display without listed countdown digits.
What should I verify for a 16 × 18 replacement?
Compare the symbol and digit layout, housing opening, mounting, terminal style, 80–135Vac supply and complete agency-approved model. Equal outside dimensions alone do not confirm interchangeability.
Does the visual countdown also provide an accessible pedestrian signal?
No. Countdown digits give visual information. Audible and vibrotactile crossing information requires a separate accessible pedestrian signal assessment for the full intersection design.
Specifications
Family
Frontier
Series
430
Certification
ETL, CSA
Indication
Upraised Hand, Countdown digits, Hand & Person
Lens Size
16" x 18"
Color of Indication
Portland Orange, Lunar White
Voltage
120Vac (80-135Vac)
Warranty
5 year(s)
Terminals
Faston with Spade Insert, Spade Terminals
Resources
Related Products
HM

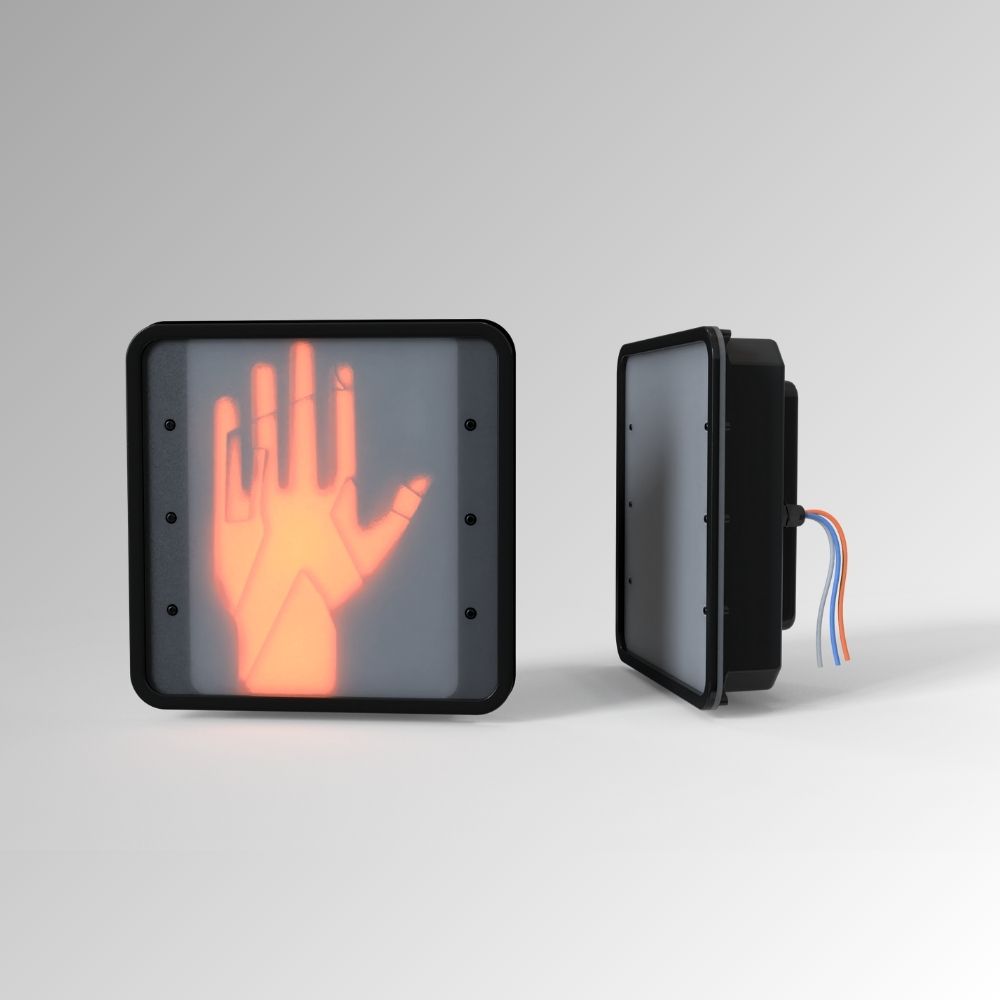

LEOTEK HM Series 12″x 12″ Pedestrian Signal Module, Hand & Person Overlap, 80-135Vac, Canada, Square
Indications:
Hand & Person Overlap
Hand & Person Overlap
Voltage: 120Vac (80-135Vac)

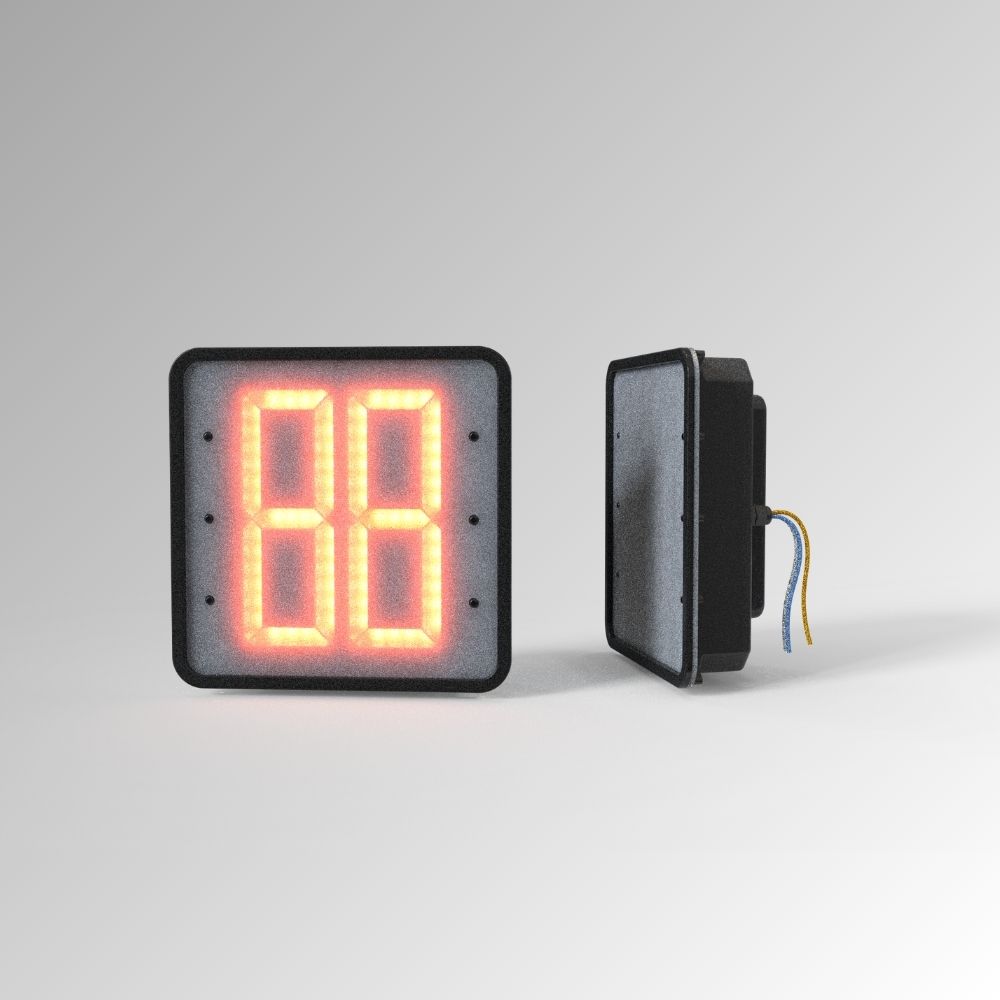

CD
