LEOTEK IL6 Series Traffic Signal Module 8″ / 12″ Bicycle 80-135Vac

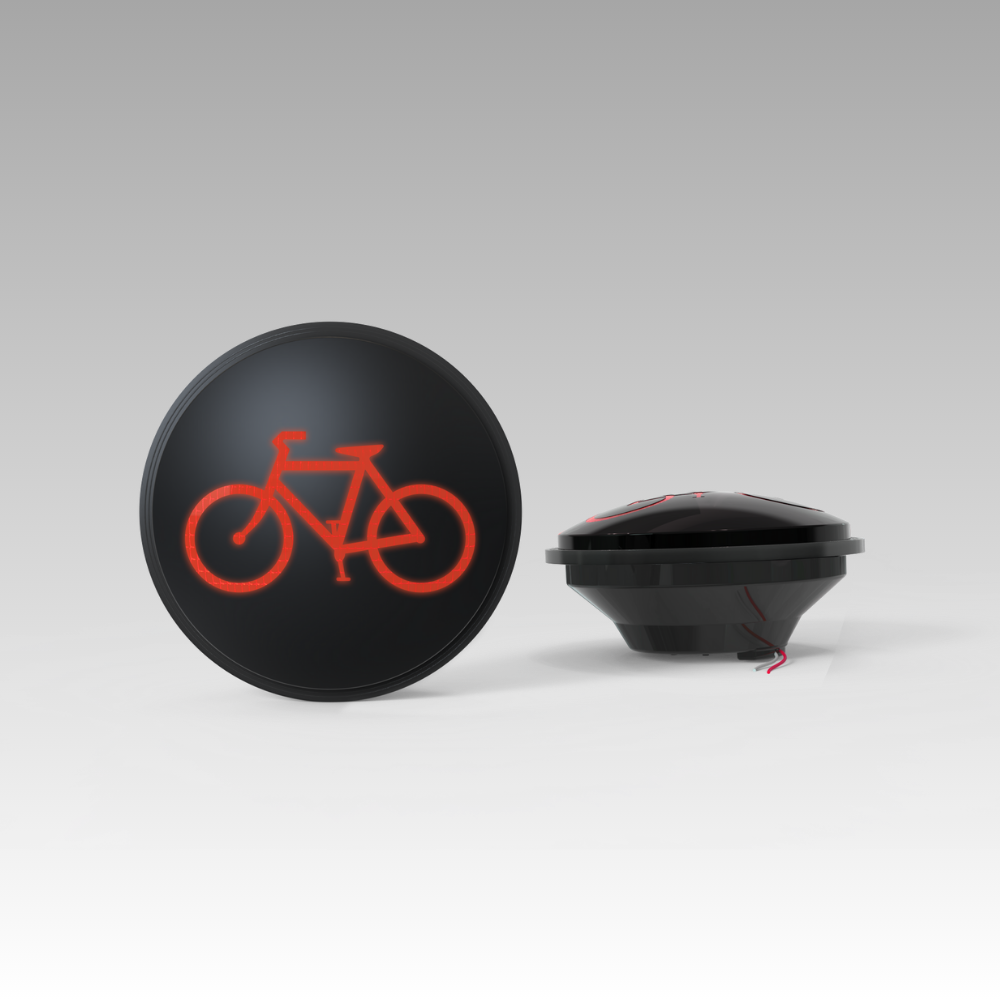

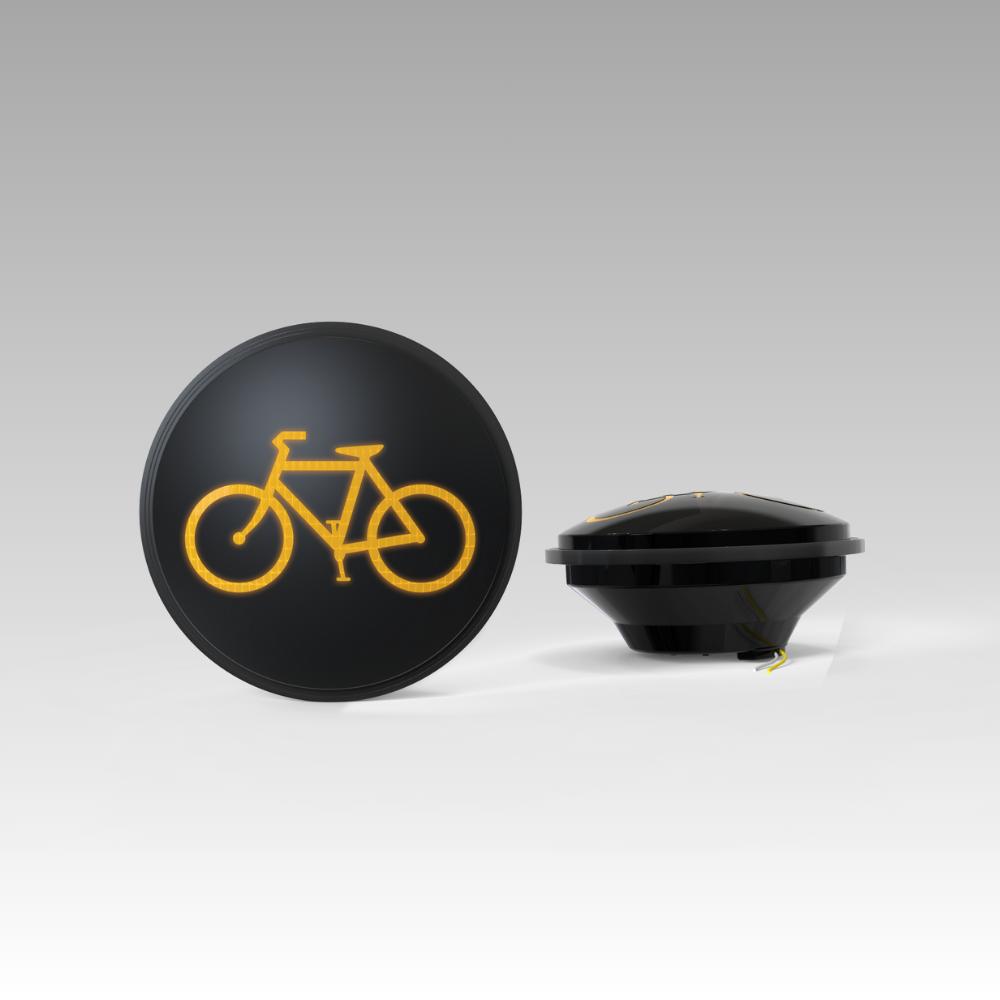

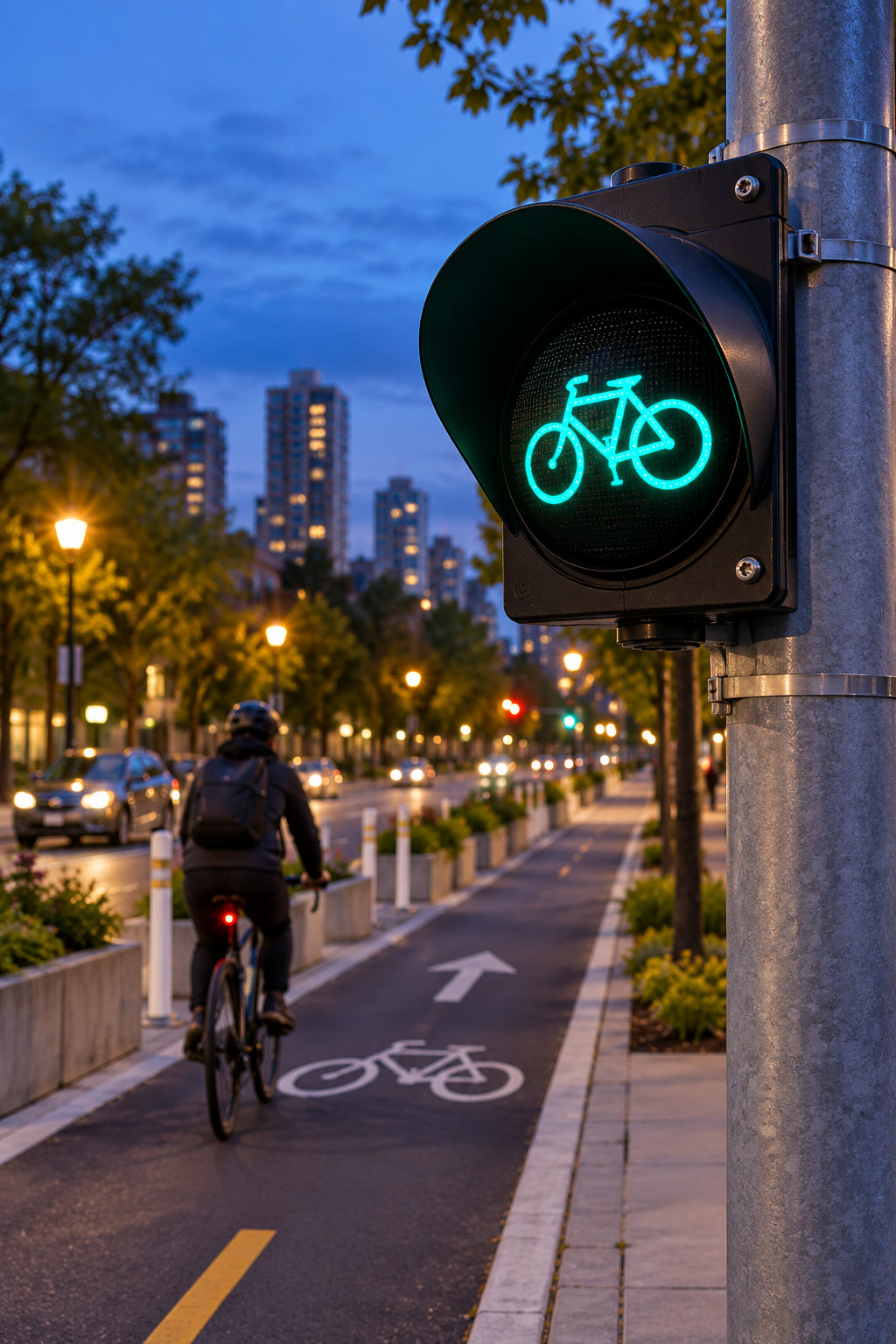

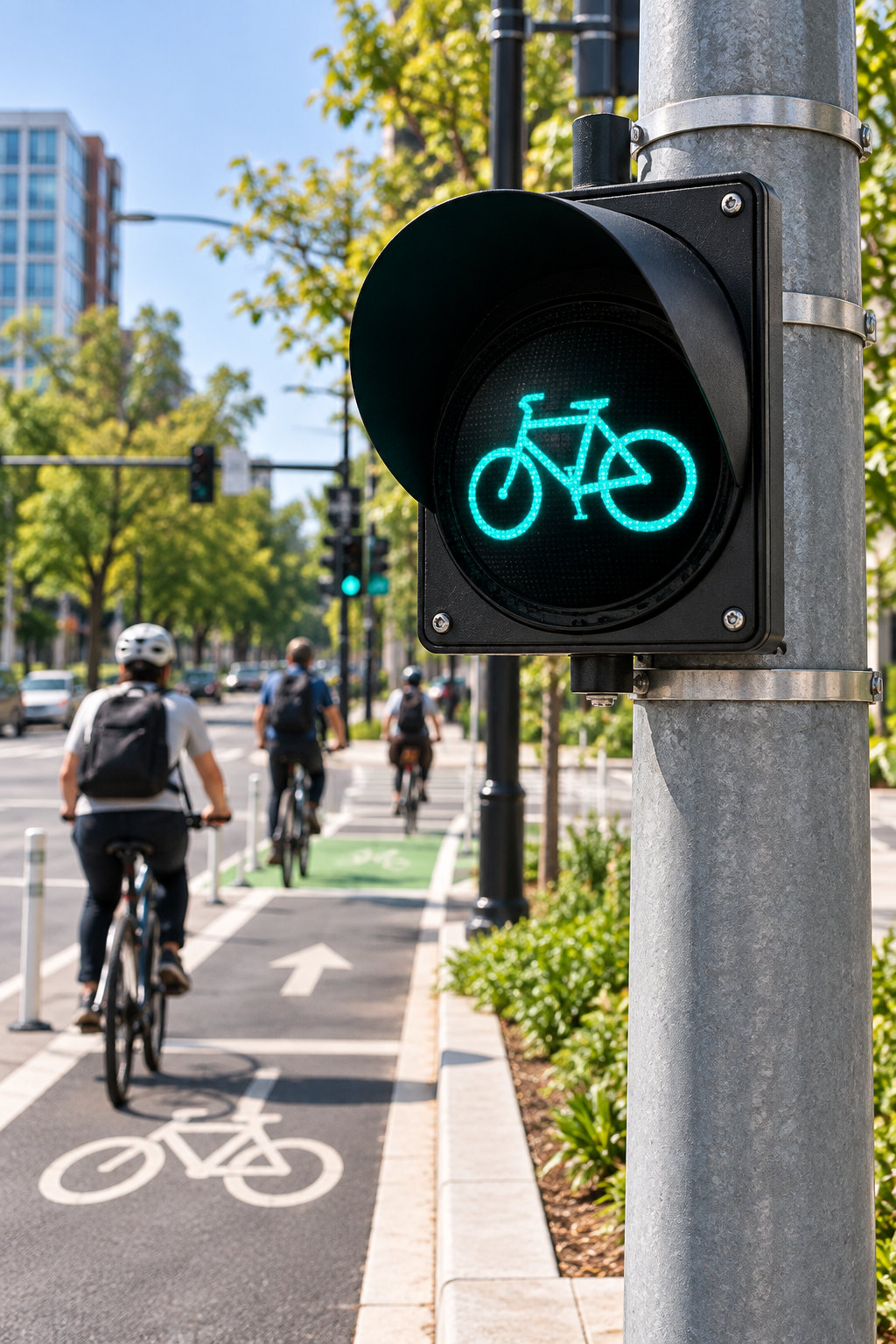

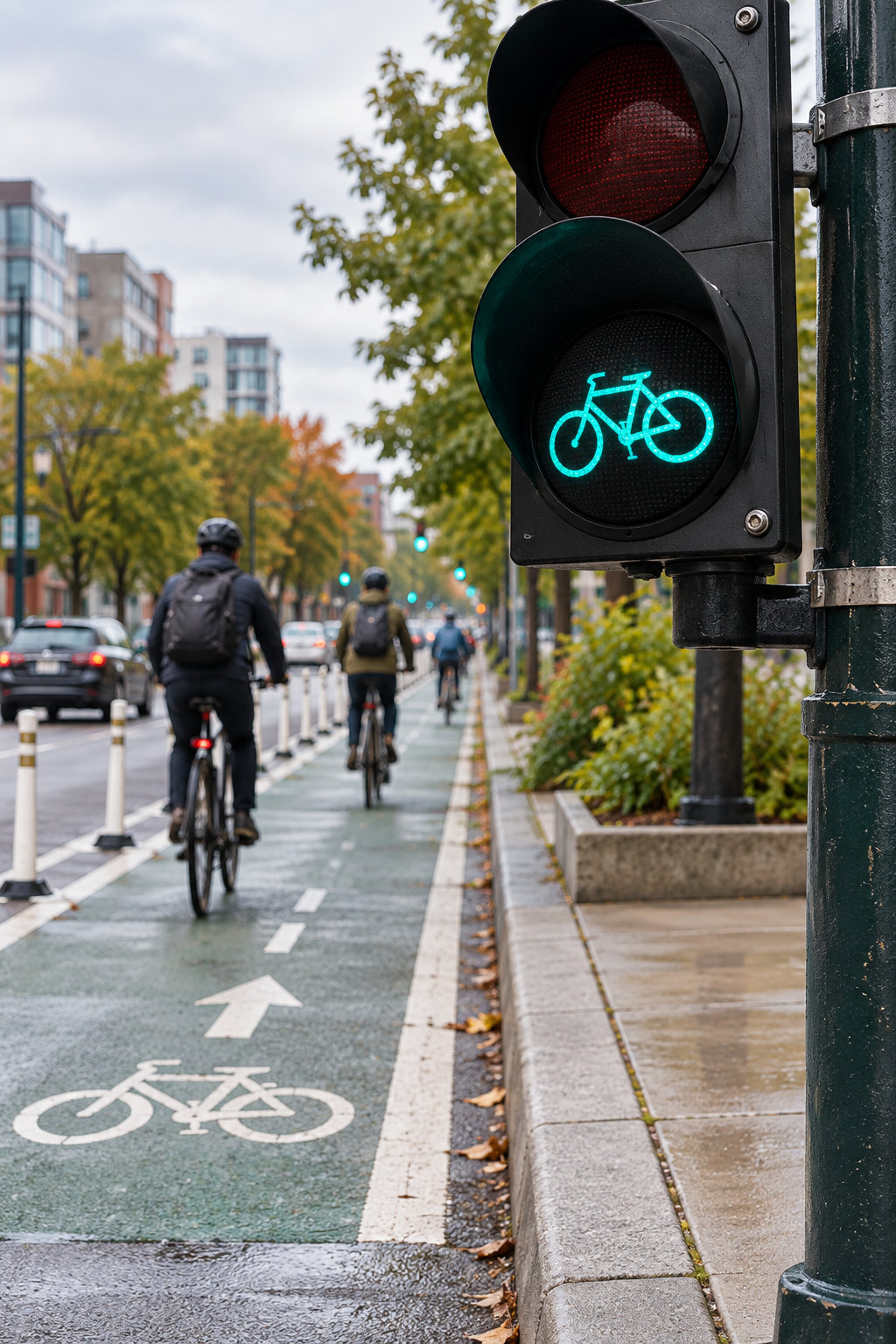

The LEOTEK IL6 Series Bicycle Traffic Signal Module is specifically designed to improve cyclist safety and intersection clarity by providing a highly visible bicycle symbol indication. Offered through Frontier as part of the LEOTEK traffic signal portfolio, the IL6 Series combines proven LED performance with durable construction to meet the needs of modern urban traffic environments.
Operating on 120Vac (80–135Vac), verify the existing signal head, terminals, controller interface, and agency-approved configuration against the current drawing before a retrofit or new installation. The IL6 Series delivers excellent color uniformity and readability in red, green, and yellow, for the bicycle symbol indication.
Available in 8″ and 12″ configurations, the module offers tinted lens only to accommodate regional standards and visibility preferences. The 2017 IL6 Bicycle specification lists a tinted lens only; confirm the current specification and project approval for the ordered model.
Features
- 8″ / 12″ LED bicycle signal module
- Dedicated bicycle indication for multimodal intersections
- 80-135Vac operation
- High-contrast symbol with uniform illumination
- For compatible signal housings
- Energy-efficient weather-resistant construction
PDF-Verified Performance Data
Source: IL6 8-inch and 12-inch Bicycle Signal Specification Sheet
| Size / Color | Typical Power | Input Voltage | Display |
|---|---|---|---|
| 8″ Red | 6.0W | 80–135Vac | Bicycle |
| 8″ Yellow | 6.8W | 80–135Vac | Bicycle |
| 8″ Green | 6.0W | 80–135Vac | Bicycle |
| 12″ Red | 5.6W | 80–135Vac | Bicycle |
| 12″ Yellow | 6.8W | 80–135Vac | Bicycle |
| 12″ Green | 7.0W | 80–135Vac | Bicycle |
Electrical & Compliance Data
| Frequency | 60 Hz |
|---|---|
| Operating temperature | -40°C to +74°C |
| Switching time | Below 75 ms |
| Turn-off threshold | Above 35Vac |
| Power quality | Power factor above 0.9; total harmonic distortion below 20% |
| Environmental / EMC | FCC; MIL-STD-810F; NEMA transient requirements |
| Lens configuration | Tinted lens only |
Technical FAQ
How do I choose an 8-inch or 12-inch Bicycle module?
Match the existing signal-head opening and the project drawing, then select the complete red, yellow, or green bicycle indication part number from the current IL6 specification. The sizes use separate model numbers.
Is a clear-lens Bicycle option listed?
The LEOTEK IL6 Bicycle specification lists a tinted lens only. Confirm the current sheet and complete ordering code for the exact size and color before purchasing.
Can this Bicycle module replace a Bus or circular Ball indication?
No direct interchangeability is stated. Bicycle, Bus, and circular Ball indications have different symbols and ordering codes; verify the required indication, housing, voltage, and agency approval for the project.
