LEOTEK CD Series 12″ Countdown Signal Module, 80-135Vac, Canada, Round
The LEOTEK CD Series 12″ Countdown Signal Module is a high-visibility LED pedestrian countdown solution designed specifically for Canadian roadway applications. Part of the LEOTEK Frontier family, this CSA-certified module delivers clear and reliable countdown digit indications to support safe and efficient pedestrian crossings.
Engineered to operate on 120Vac (80–135Vac), the CD Series is fully compatible with standard pedestrian signal housings and control systems across Canada. Its 12″ round format and Portland Orange LED digits provide excellent readability and contrast under a wide range of ambient lighting conditions.
Advanced optical and thermal design ensure uniform illumination, wide viewing angles, and long-term performance, while the rugged construction supports dependable operation in demanding outdoor environments. The CD Series offers a cost-effective, energy-efficient alternative to traditional technologies, reducing maintenance requirements while maintaining consistent visual performance throughout its service life.
Features
- 12″ LED pedestrian signal module
- Integrated countdown information
- 80-135Vac operation
- High-contrast display with uniform visibility
- For compatible pedestrian-signal housings
- Durable weather-resistant construction

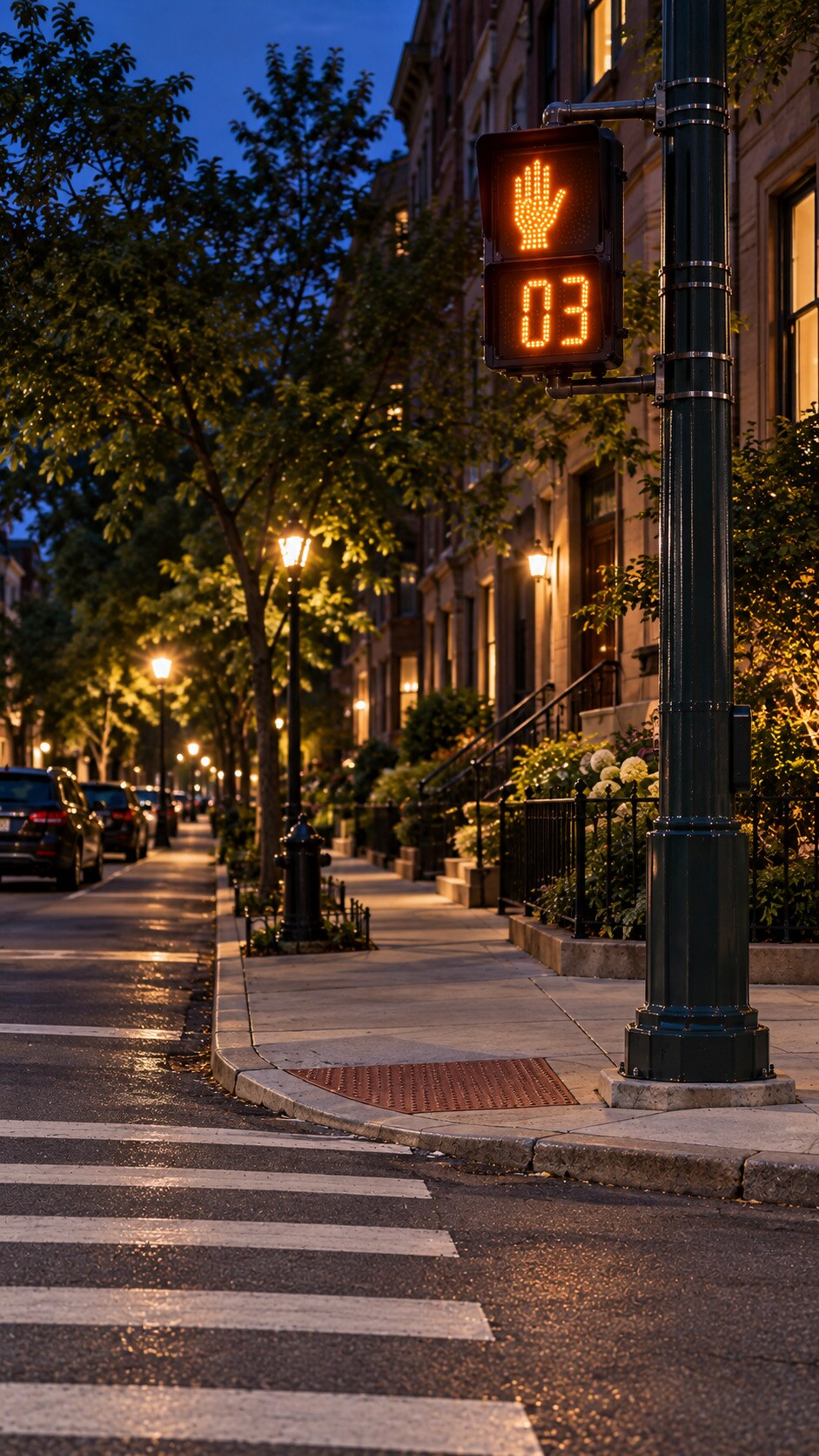

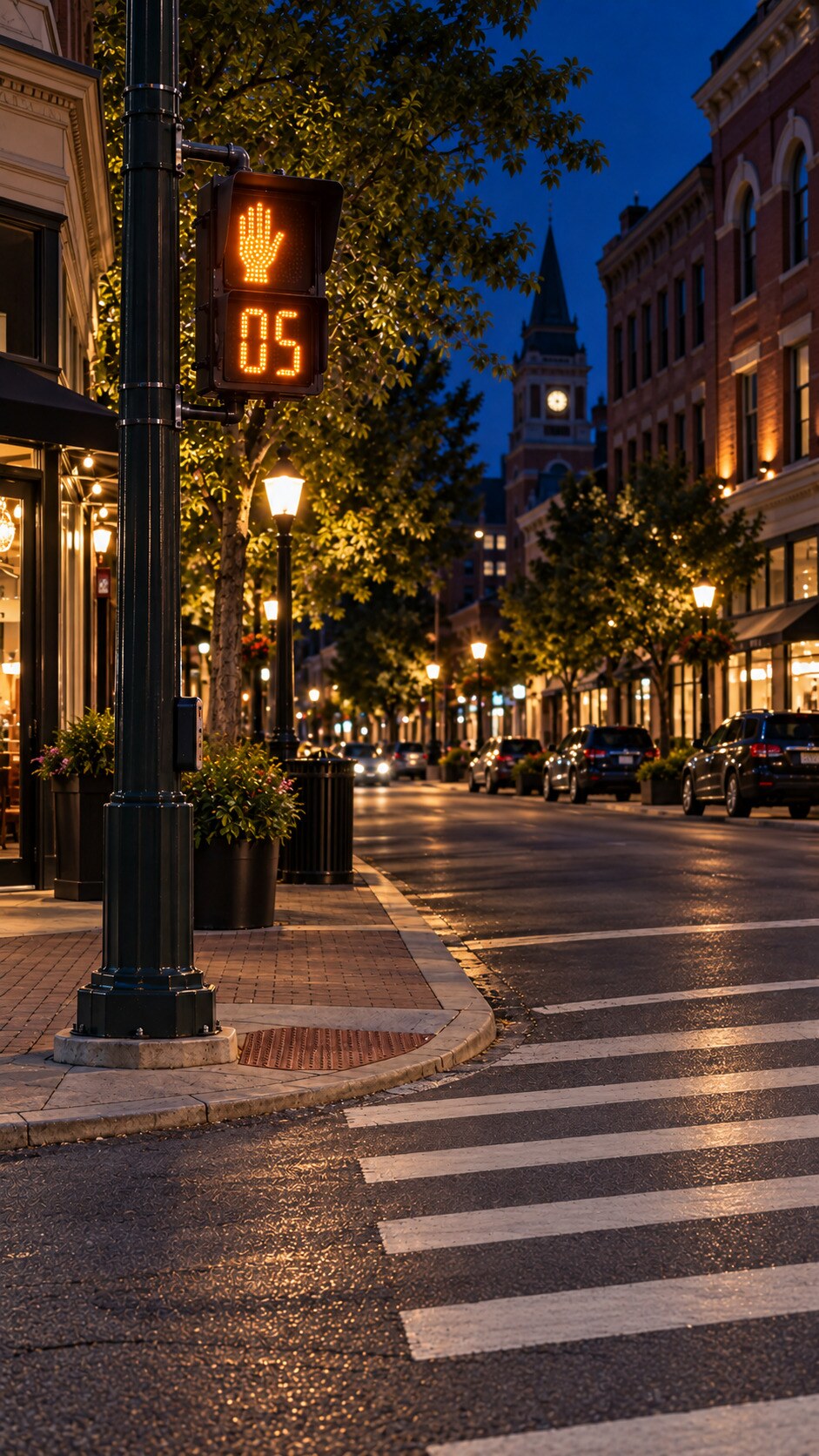

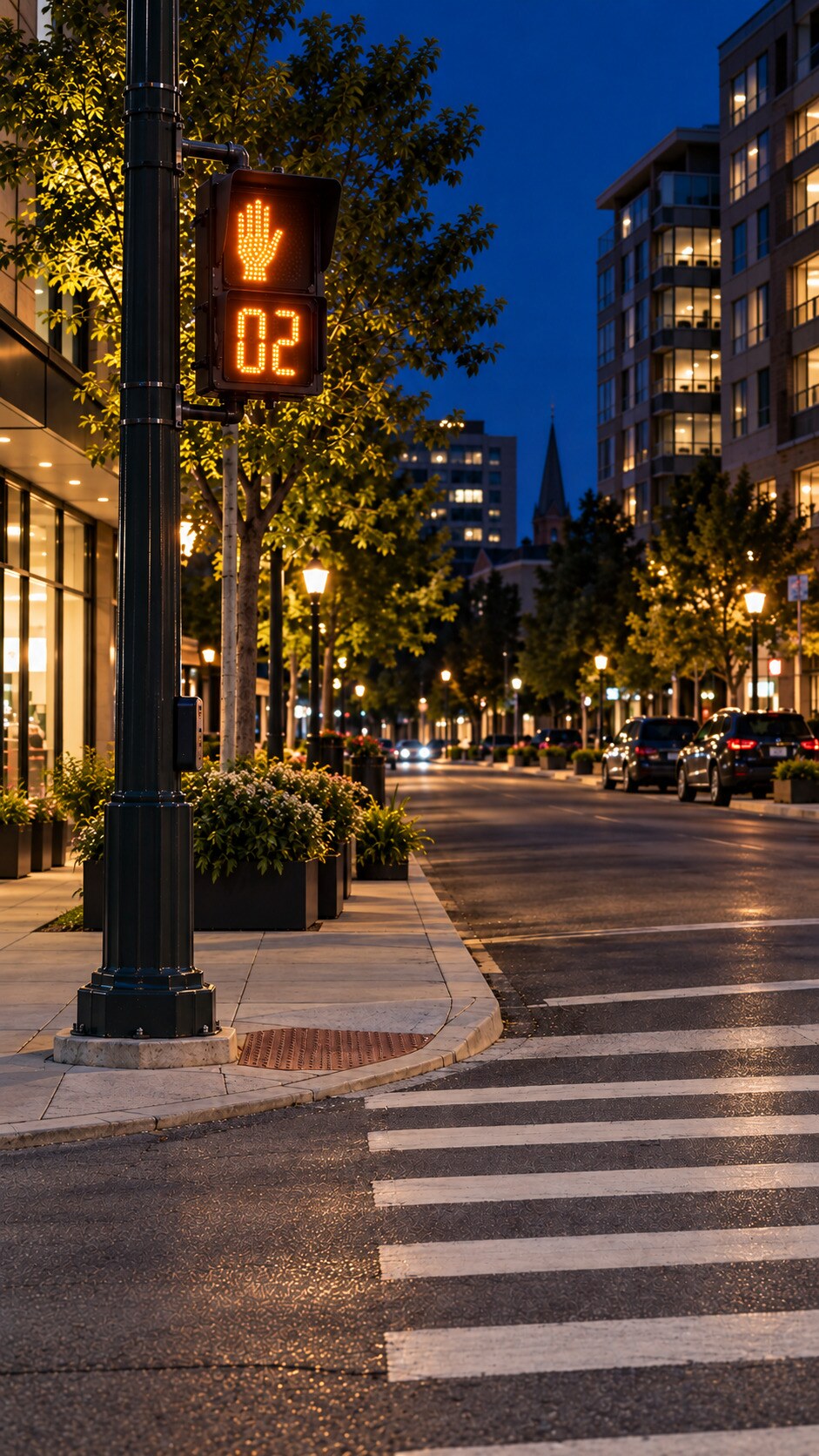

CD Countdown Signals in Real-World Crosswalks
PDF-Verified Model & Performance Data
Source: CD/HM Series 12-inch Pedestrian Signal Module CSA Specification Sheet
| Model | Indication | Color | Typical Power |
|---|---|---|---|
| TSL-PED-12-CD-CR1 | Countdown | Orange | 8.6W |
Electrical & Compliance Data
| Input voltage | 80–135Vac |
|---|---|
| Operating temperature | -40°C to +74°C |
| Switching time | Below 75 ms |
| Turn-off threshold | Above 35Vac |
| Power quality | Power factor above 0.9; total harmonic distortion below 20% |
| Application | Canadian round 12-inch countdown pedestrian signal module |
Technical FAQ
Does the CD round module include Hand and Walking Person symbols?
This CD listing is for countdown digits. Hand and Walking Person overlap indications are listed separately in the HM series. Match the required display assembly before ordering.
What size, shape and input are listed?
It is a round 12-inch Canadian countdown module with Portland Orange digits, CSA certification and nominal 120Vac input (80–135Vac range).
Can a square 12 × 12-inch module be substituted?
Do not infer a fit from the voltage alone. Match the round housing, mounting, display format and controller interface to the current drawing.
Specifications
Family
Series
Certification
Indication
Lens Size
Color of Indication
Voltage
Warranty
Terminals
Resources
Related Products
Side by side
Hand & Person Overlay
Countdown digits
